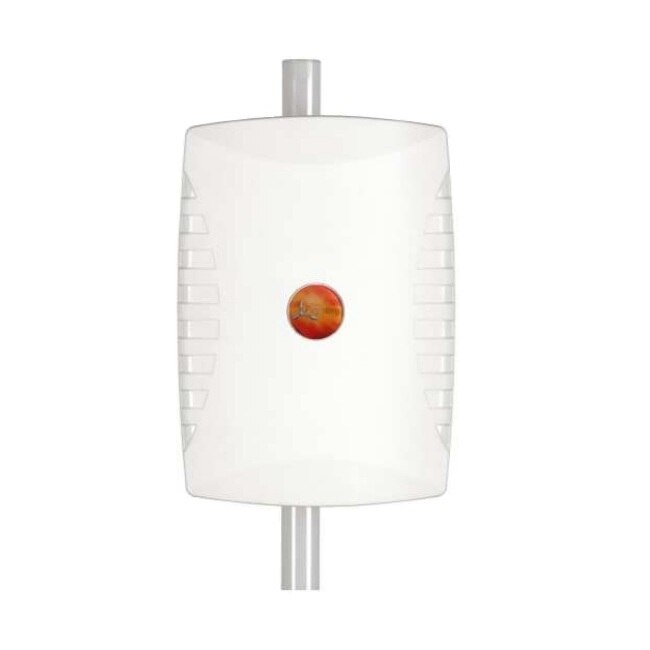

Poynting 5.8GHz 20dBi Dual POL BridgePoynt Antenna Enclosure
- SKU: WLAN-A0043 (AT-20AE-58D)
$47.37
- Manufacturer: Poynting
- Data Sheet: Download
Product Information
Poynting WLAN-A0043
Poynting 5.8GHz 20db Dual POL BridgePoynt Antenna Enclosure
Poynting's WLAN-A0043 is an outdoor enclosure with integrated 5GHz, dual polarized antennas (two integrated antennas: one vertically polarized and one horizontally polarized both with the same gain).
It also features a waterproof ethernet gland with an integrated RJ45 connector for direct clip-on and clip-off of your ethernet cable without having to open the enclosure. Six movable posts with self tapping screws and double-sided tape are provided to mount your electronics and a mast mounting bracket with elevation tilt and azimuth adjustment is also included.
For protection from surges and static buildup, the product features a grounding lug to ground internally mounted electronics to the mounting structure if desired and the internal antenna antennas are both DC shorted.Specifications
Specifications WLAN-A0043
Electrical
| Gain (max) | 20 dBi (+-0.5 dB) |
| Gain (min over the band) | 18 dBi (+-0.5 dB) |
| Frequency | 5150 – 6000 MHz |
| VSWR | < 2.0:1 |
| Feed power handling | 10 W |
| Elevation 3 dB beamwidth | 14° (± 1°) |
| Azimuth 3 dB beamwidth | 10° (± 1°) |
| Mutual isolation | >35 dB |
| Front to back (F/B ratio) | >20 dB |
| Nominal input impedance | 50 Ohm |
| Polarisation | Dual antennas linear (Vertical & Horizontal) |
Environmental
| Wind Loading | 160 km/h |
| Temperature Range | - 20° C to +70° C |
| Shock | 40G at 10 msec |
| Thermal Shock | - 20° C to +70° C : 10 cycles |
| Water Ingress Rating | IP65 (NEMA 4X) |
Mechanical
| Dimensions (l x w x d) | 364 mm x 258 mm x 98 mm |
| Weight | 2.44 kg |
| Colour | Pantone Cool Grey 1C |
| Mounting | Stainless steel brackets for up to 50 mm poles |
