Primus Cable Fiber Dome Splice Enclosure - 48 Single Fusion Splice Capacity, Includes (4) Splice Trays, Pole Mount Kit, 5.5" Diameter
- SKU: FB40-4701-48DE
$82.83
Product Information
Primus Cable FB40-4701-48DE
Fiber Dome Splice Enclosure - 48 Single Fusion Splice Capacity, Includes (4) Splice Trays, Pole Mount Kit, 5.5" Diameter

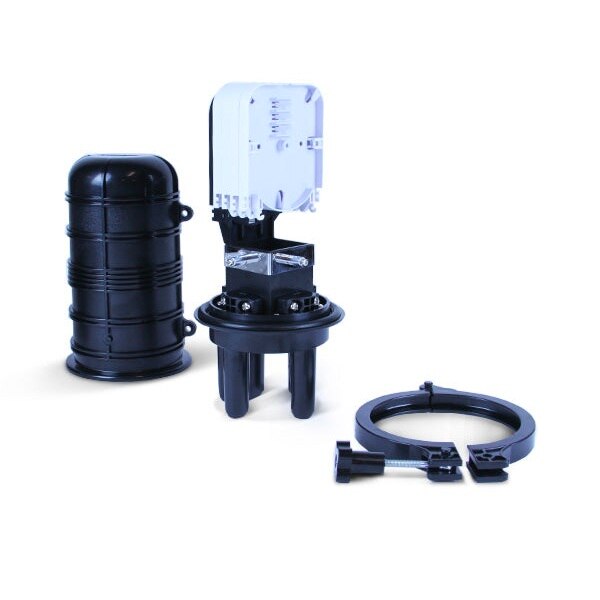

The 48 splice fiber optic dome closure is a multi application, IP67 rated weather resistant solution for protecting fiber outdoors. The closure and foundation are sealed with silicon gum, and cable entry sealed with heat shrink tubing. All major hardware is factory installed to allow for quick field installation.
The FB40-4701-48DE is a small capacity closure that can be used in aerial, wall mount, and pole mount applications. Dome enclosure has the capacity to hold four splice trays total.
Features:
- Closure and foundation sealed with silicon gum
- Cables sealed with heat shrink tubing
- 3 round entry ports and one oval port
- Aerial mounting hardware included
- Pole mount kit included
- Four splice trays included
- IP67 rated
Specifications
Specifications FB40-4701-48DE
| Capacity | |
| Splice Trays | (4) 12 Fiber Splice Trays |
| Cable Entry | |
| (2) Express/Feeder | Max. Diameter - 0.75" (19mm) | Min. Diameter - 0.30" (7.62mm) |
| (4) Branch/Lateral | Max. Diameter - 0.63" (16mm) | Min. Diameter -0.27" (6.9mm) |
| Dimensions | |
| Exterior Closure Diameter | 5.51" |
| Exterior Closure Length | 11.83" |
| Physical Properties | |
| Weight | 4.19 lbs |
| Material | (Dome) Polyethylene, (End Plates) Glass Filled Polypropylene, (V-Band) Polypropylene |
