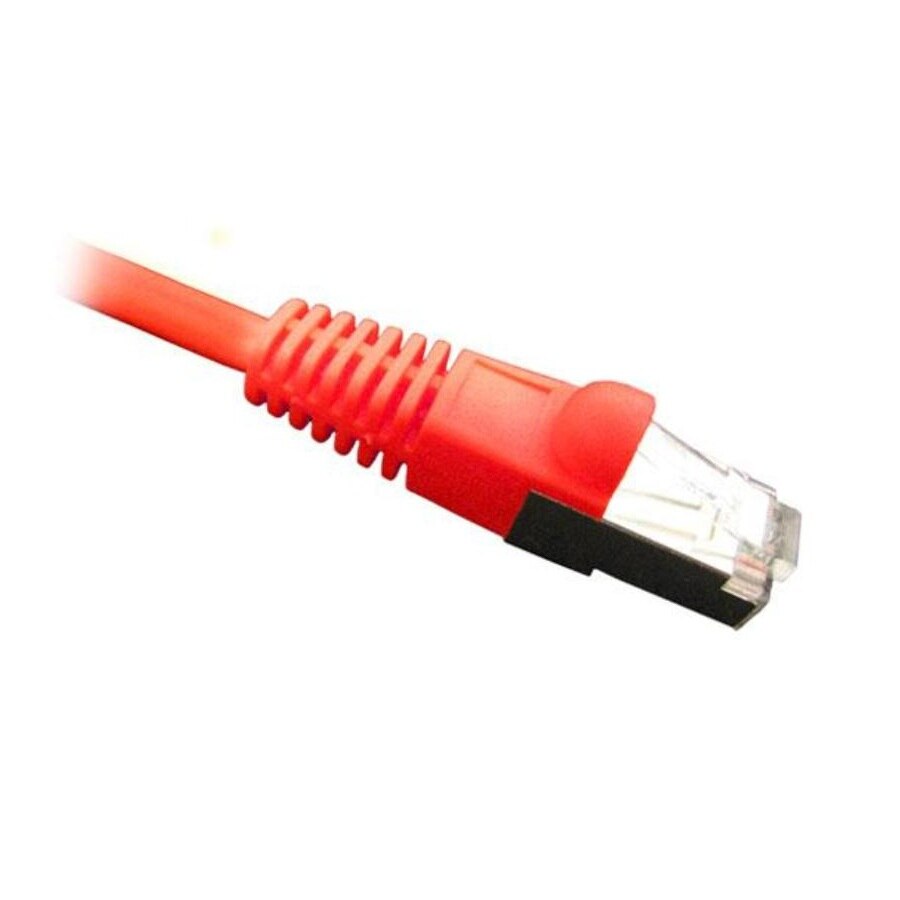

Primus Cable CAT6 Ethernet Patch Cable Shielded, Snagless Molded Boot, S/FTP, RJ45 - RJ45, 4ft - Red
- SKU: PC6SS-4FT-RD
- Manufacturer: Primus Cable
Product Information
Primus Cable PC6SS-4FT-RD
CAT6 Ethernet Patch Cable Shielded, Snagless Molded Boot, S/FTP, RJ45 - RJ45, 4ft - Red
CAT6 Ethernet Patch Cable Shielded S/FTP With Snagless Molded Boot Our Shielded S/FTP CAT6 Patch Cables are great for home and office applications including servers, printers, modems, routers, hubs, switch boxes, computers, game consoles, VoIP phones, and more. Our Cat6 Ethernet patch cables connect computers with devices such as cable modems, routers, patch panels, hubs, and switches.
Product Quality
Product quality is essential to a reliable network, our S/FTP CAT6 patch cables are durable, flexible and well-constructed. This patch cable features a molded-strain-relief boot, a PVC jacket, 26 AWG, stranded bare copper wire and RJ45 connectors with gold-plated contacts.
Durability & Strength
To make sure we are supplying our customers with high-quality Ethernet cables, we meet and/or exceed CAT6 ANSI/TIA-568-C.2 standards. Our CAT6 patch cables are UL Listed, ETL Verified and RoHS Compliant.
Why Shielded Cable?
The foil shielding protects the signal from outside Electromagnetic Interference and also keeps the signal from emitting its own Electromagnetic Interference (EMI). For example, a hospital has many electronic devices that emit Electromagnetic Interference so you would want to use a shielded cable to prevent EMI from both entering and exiting your cable.
Features:
- High-Performance Data Communication Cable
- Category 6 4' Shielded S/FTP Patch Cable
- Great for High-Speed Gigabit Ethernet Applications
- Designed for Indoor Installations
- 26 AWG Stranded Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Factory Machine Made and Injection Molded
- Snagless Connector Design For Easy Handling
- Gold Plated Contacts
- UL Listed
- ETL Verified
- RoHS Compliant
Specifications
Specifications PC6SS-4FT-RD
Conductor | |
Material | Bare Copper |
Size | 26 AWG |
Insulation | |
Material | Foam-Skin PE |
Thickness | Nominal: 0.27mm |
Diameter | Nominal: 1.08mm |
Unaged Tensile Strength | Min. 0.816 Kgf/mm^2 |
Screen | |
Material | Aluminum-Mylar Tape and Tinned Copper Braid |
Jacket | |
Material | Flame Retardant PVC |
Thickness | Nominal: 0.50mm |
Diameter | Nominal: 5.7mm |
Unaged Tensile Strength | Min. 1.407 Kgf/mm^2 |
More Specs | |
Dielectric Strength | 1500 V dc / 2 seconds |
Insulation Resistance Test | Min. 5000 M Ω Km |
Conductor Resistance | Max. 9.38 Ω / 100m at 20˚C |
Capacitance Unbalance | Max. 160 pF/100m |
