RF Elements 5GHz 20.5dBi 20 degree Asymmetrical Beam Antenna
- SKU: AH20-CC
$617.72
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

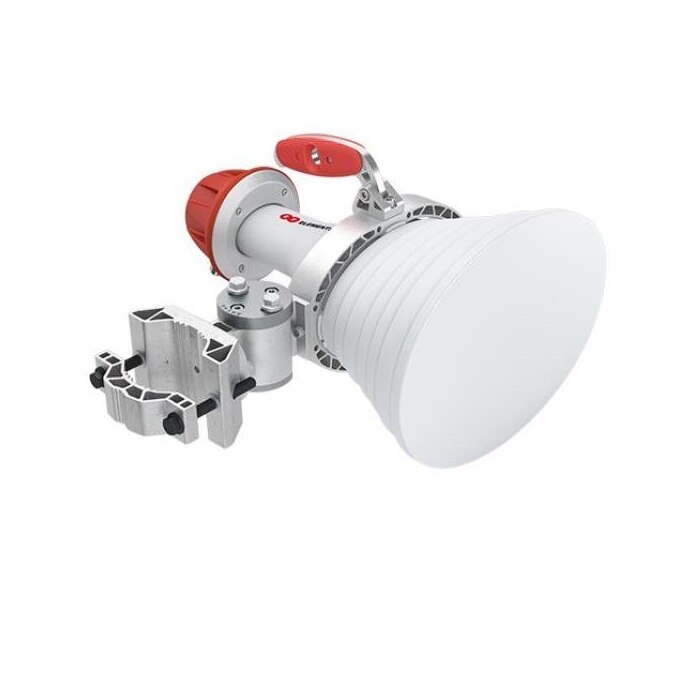

RF Elements AH20-CC
5GHz 20.5dBi 20 degree Asymmetrical Beam Antenna
The radiation pattern of 20° Asymmetrical Horn CC Antenna is 20° wide in the azimuth plane and 30° in elevation. Increased gain and high beam efficiency greatly improve coverage planning options.
20° Asymmetrical Horn CC Antenna exceeds the traditional patch array sector antennas thanks to the high stability of the radiation pattern throughout the bandwidth of operation. Outstanding noise rejection and precision of the radiation pattern favor the antenna for high-density access point clusters and densely co-located sites. 20° Asymmetrical Horn CC features a pair of N-female connectors ensuring a wide range of radio connectivity.
Specifications
Specifications AH20-CC
| TECHNICAL | |
| Radio Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 40-80 mm (recommend as close to 80 mm as possible) |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 67 N at 160 km/hour |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 4.5 kg / 10.0 lbs – single unit* 6.6 kg / 14.6 lbs – single unit incl. package* |
| Single Unit | Retail Box: 435 × 360 × 250 mm / 17.1 × 14.2 × 9.8 inch* |
| PERFORMANCE | |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 20.5 dBi |
| Azimuth Beam Width | -3 dB H 15° / V 15° |
| Elevation Beam Width | -3 dB H 21° / V 21° |
| Azimuth Beam Width | -6 dB H 20° / V 20° |
| Elevation Beam Width | -6 dB H 30° / V 30° |
| Beam Efficiency | 95 % |
| Front-to-Back Ratio | 35 dB |
| VSWR Max | 5180-6000 MHz 1.8 |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
