Rohn RSL80L30 RSL Tower 80 Ft-Section 3 - 10
- SKU: RSL80L30
$7,148.03 $8,409.45
Product Information
Rohn RSL80L30 RSL Tower 80 Ft-Section 3 - 10
The Rohn RSL80L30 is an 80' self-supporting tower designed for use in broadband, public safety and security applications.
CLASS I Structure / Exposure Cat B / Topo Cat 1
CLASS II Structure / Exposure Cat C / Topo Cat 1 / Wind -w- Ice 40 MPH @ 1" / Earthquake Ss 2.50
This Kit Includes:

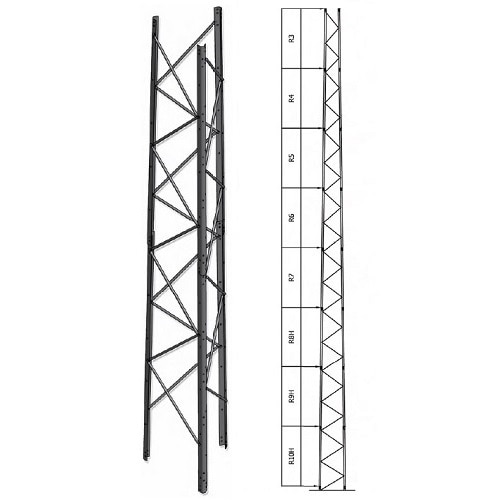

- Sections- 3-10
- Top Kit- RSLH3A
- Bolt Kits- 8
Features:
- 80’ Height
- Handles up to 56 sq. ft.
- Constructed of hot-dip galvanized steel
- Available in heights from 20' up to 100'
- U-shaped legs allows for simple lap splice connection
- Available in standard and heavy models
- Pre-punched holes for attachment of safety climb systems, mounting kits, etc.
- Braces for each section are the same length, while bolt lengths are standard throughout the tower
- Tower material is hot-dip galvanized
- Assembly drawings provided with tower
- Top closing angle standard with each tower package
Specifications
Specifications Rohn RSL80L30
| Brand | ROHN |
| DRAM | 256 MB DDR DRAM |
| Series | RSL Series |
| Support | Self-Supporting Tower |
| 3 Second Wind Gust with 1" Ice and Max Antenna SF | 90 MPH |
| Max Antenna SF with 1" Ice | Up to 24 SF Antenna |
| Height | 80 FT |
| Tower Type | Heavy Tower |
