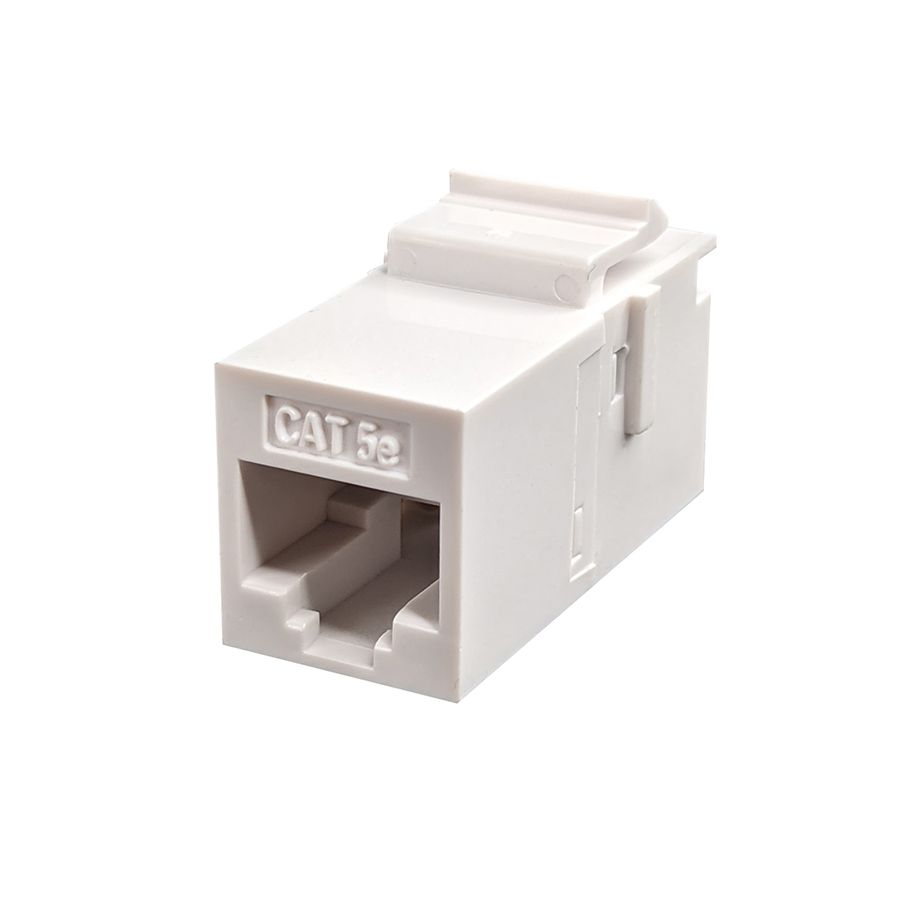

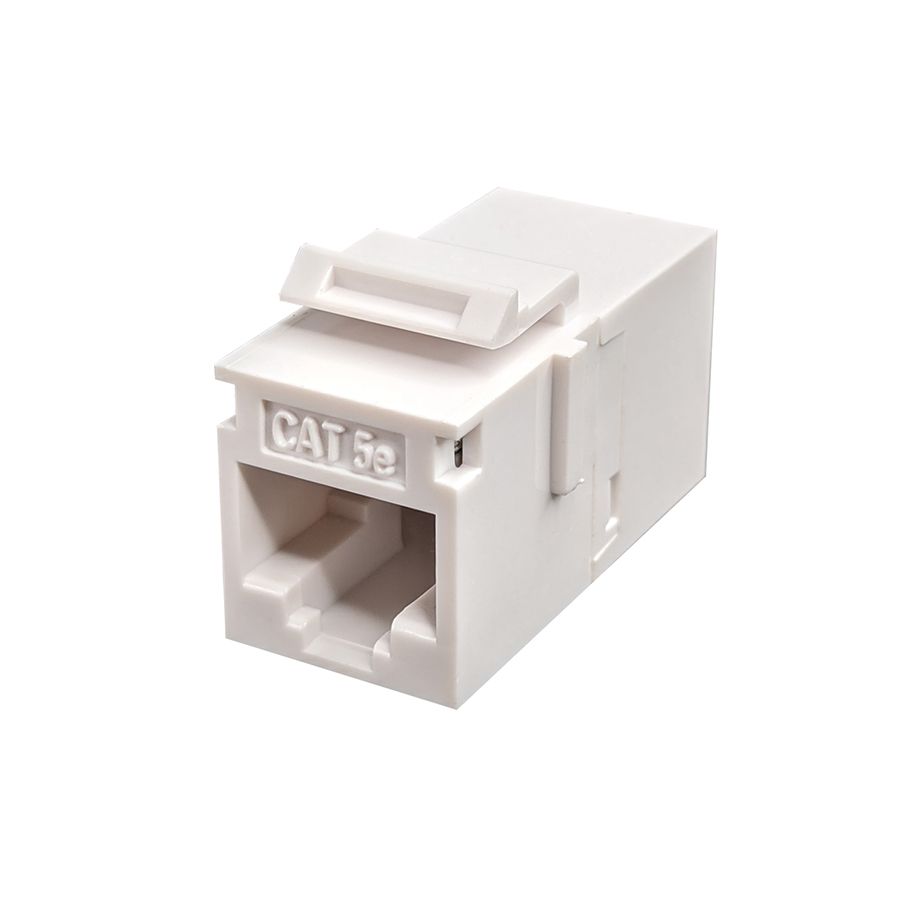

Simply45 Cat5E UTP White Keystone Feed-Thru Coupler - w/6-Color Snap-On ID Bars Included. 1ea/Bag, 25/Pack
- SKU: S45-3250W-25
$132.67 $172.61
- Manufacturer: Simply45
- Data Sheet: Download
Product Information
Simply45 S45-3250W-25
Cat5E UTP White Keystone Feed-Thru Coupler - w/6-Color Snap-On ID Bars Included. 1ea/Bag, 25/Pack
CAT5e Unshielded White Keystone Feed-Thru Coupler - Inline/Slim Style, CAT6 UTP, ANSI/TIA 568.2-D, ISO/IEC 11801 Class D - w/6-Color Snap-On ID Bars Included. 1EA/Bag, 25/Pack
Keystone Cat5e UTP RJ45 couplers provide feed-through patching via any industry-standard patch panel, keystone wall plate, or surface mount box.
The snap-in RJ45 Cat5e connector jack is simple to install and provides a robust female to female in-line RJ45 Cat5e connector coupler.
Features:
- Female to Female CAT5E UTP RJ45 Keystone Coupler
- 50μ Gold Plated
- Snap-in design / Slim Style
- Available in 10 packs
- RoHS Compliant
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class D
- Compatible with Simply45 Keystone Snap-On ID Bars (p/n: S45-3790 - sold separately)
Specifications
Specifications S45-3250W-25
| Weight | 0.2 lbs |
| Dimensions (HxWxD) | 4.5 x 4.0 x 0.75 in |
| Insulation Resistance | >= 500 MΩ |
| Dielectric Withstand Volt | 100VAC RMS 60Hz |
| Contact Resistance | <= 20 mΩ |
| Current Rating | 1.5A at 68°F |
| Plug insertion Life | >=750 times plug in |
| Contact Force | 99.2g (3.5oz) FCC Plug |
| Plug Retention Force | 30lb (133n/13.3Kg) |
| Temperature Test | -40 to 150°F (-40 to 66°C) |
| Contact Plating | 50u” over contact area |
| Material | Polycarbonate, 94V0 rated |
