Tycon Power 10-15VDC In 24VDC Out 35W High Power DC to DC Converter & PoE Inserter
- SKU: TP-DCDC-1224-HP
Product Information

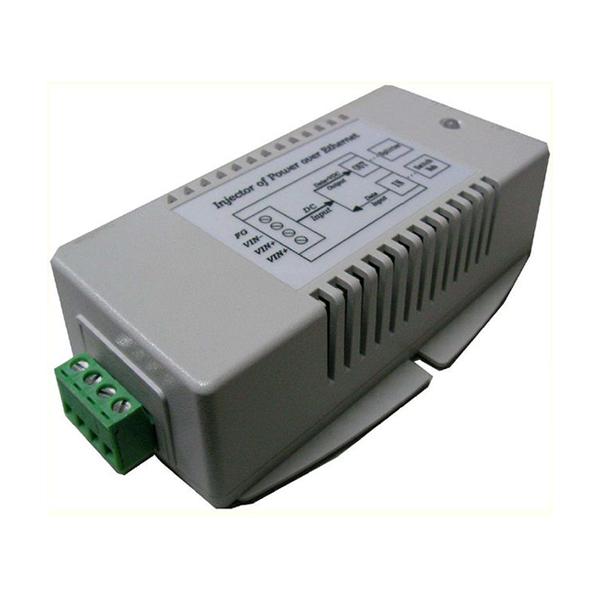

Tycon Power TP-DCDC-1224-HP
High Power Dc to DC Converter
The TP-DCDC-HP Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC or 56VDC Power Over Ethernet voltage from a 12V, 24V or 48V battery system. They have an integrated POE injector. Passive POE and 802.3at models are available. They have two inputs for connecting 2 power sources, like a primary and backup power source.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have a power output of up to 35W. The input and output are isolated so the units can accept minus voltage on input and can be wired for positive voltage on the output for those systems which are negative voltage based.
If the remote device does not support power over Ethernet, splitters (POE-SPLT-S) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER-S cable can be used.
Specifications
Specifications TP-DCDC-1224-HP
| Input Voltage | +/- 10VDC to 15VDC |
| DC Input Connector | Removeable Screw Type Compression Wire Terminal (12 AWG Max) |
| POE Specification | Passive |
| Output Voltage (+/-2.5%) | 24VDC |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Output Current (max) | 1.46A |
| Output Power (max) | 35W |
| Self Consumption Power | 2W |
| Efficiency (min) | 0.75 |
| Line Regulation | 0.01 |
| Load Regulation | 0.05 |
| Ripple | 0.01 |
| Noise | 0.01 |
| EMC Standards | FCC Class B NE55022 Class B |
| Safety Standards | UL1950, CSA 22.2 &TUV EN60950 |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity (RH) | 5% - 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (LxWxH) | 125 x 75 x 38mm (4.9 x 3 x 1.5”) |
| Weight | 300g (10.6oz) |
