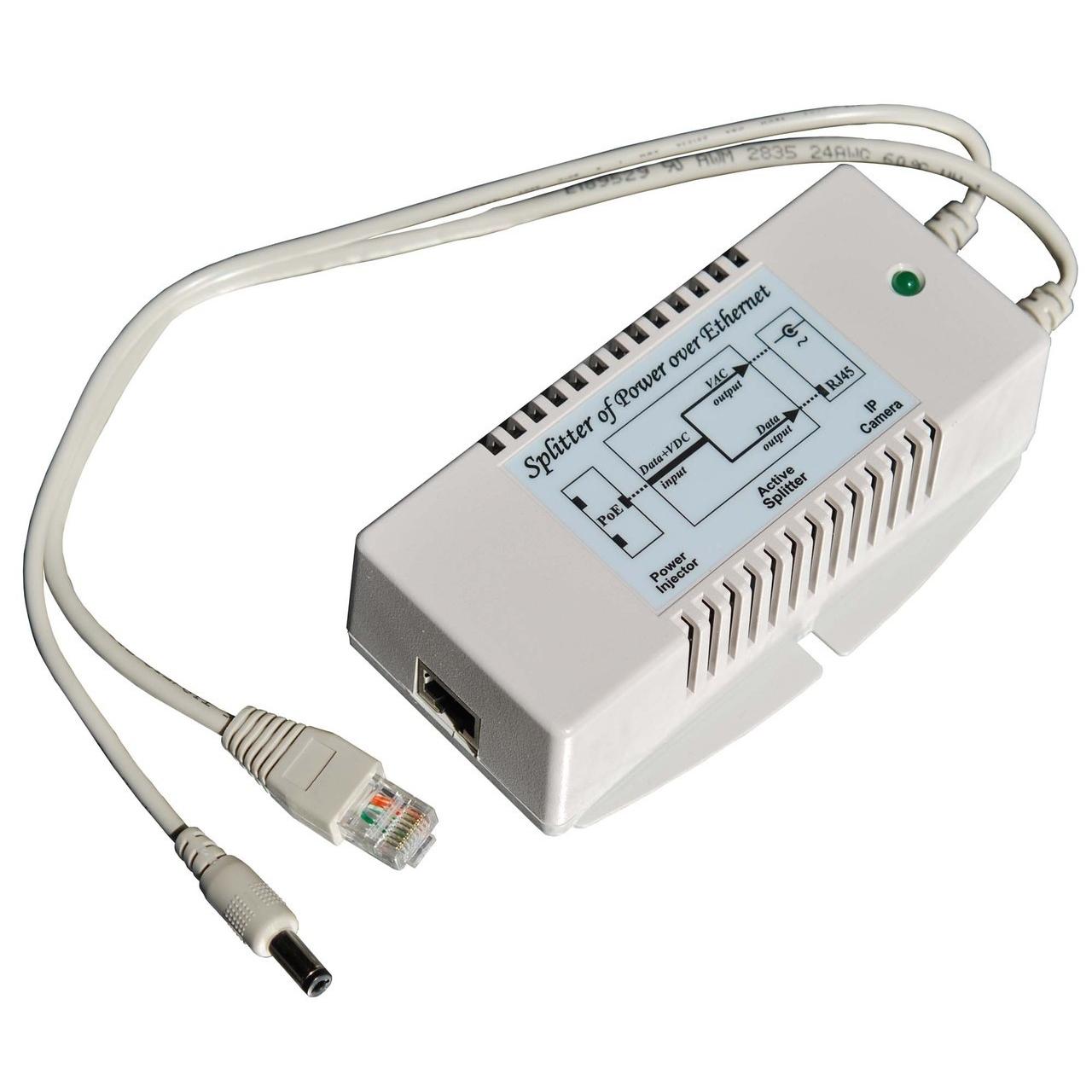

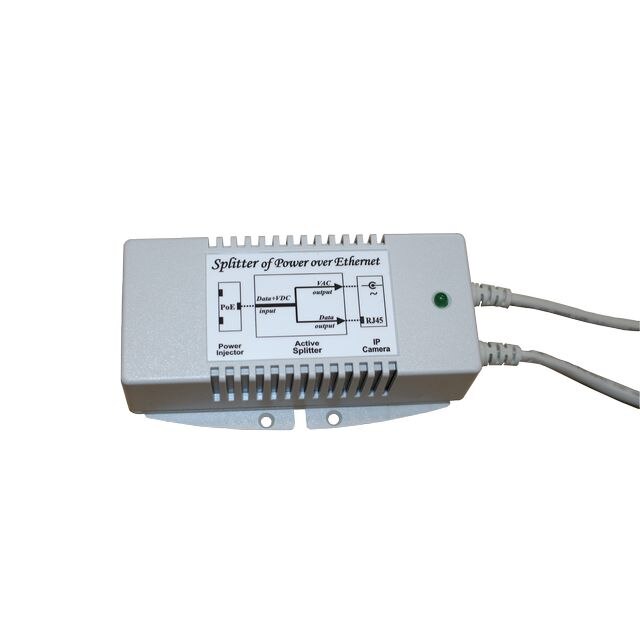

Tycon Power Gigabit PoE Splitter/Voltage Converter, 18-36V PoE Input, 24VAC and Data Output, 52W
- SKU: POE-SPLT-2424AC-G
$131.06 $137.96
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Tycon Power POE-SPLT-2424AC-G
Gigabit PoE Splitter/Voltage Converter, 18-36V PoE Input, 24VAC and Data Output, 52W
The POE-SPLT-2424AC-G Active splitters are unique Power over Ethernet adapters which convert a DC PoE input voltage to regulated 24VAC output. The output is provided on a 5.5/2.1mm DC Barrel Connector. Compatible with Gigabit Ethernet, inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage. Requires a 4pair PoE input to achieve 52W output. Output is 60Hz Square Wave.
Features:
- Converts 24V Passive PoE input to 24VAC 52W output
- Runs cameras and other 24VAC devices from 24VDC PoE and battery systems
- Short Circuit, Over Current and Over Voltage Protection
Specifications
Specifications POE-SPLT-2424AC-G
| Output Voltage | 24VAC |
| Output Current | 2.17A @24VAC |
| Output Power | 52W with 4 pair PoE input |
| Output Connector | 5.5/2.1mm DC Barrel (14” Cable) |
| Load Regulation | 0.05 |
| Line Regulation | 0.01 |
| POE Input (RJ45) | 18-36V Passive PoE (4 pairs) |
| Ethernet Speed | 10/100/1000MB |
| Efficiency | 80% Min |
| EMI Standards | FCC Class B , NE55022 Class B |
| Isolation Voltage | 1500VDC |
| Isolation Resistance | 100M Ohms Minimum |
| Operating Temperature | -25 to +50°C (-13 to +122°F) |
| Operating Humidity (RH) | 5% - 90% non condensing |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 125 x 75 x 38mm (4.9 x 3 x 1.5”) |
| Weight | 190g (0.41 lbs) |
| Warranty | 3 Years |
