Tycon Power Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE
- SKU: POE-SPLT-BT-Uni-P
$106.63 $112.24
Product Information
Tycon Power POE-SPLT-BT-Uni-P
90W PoE Splitter, 802.3af/at/bt compatible, 5/9/12/24V Selectable Voltage Output 72W, Green wire terminal, PoE output with data passthrough, -40 to +75C
The POE-SPLT-BT-UNI-P Active splitters are unique, Gigabit speed, Power over Ethernet adapters which convert an 802.3af/at/bt PoE input to an 802.3af/at/bt PoE output plus a selectable VDC output of 5V, 9V,12V or 24VDC on a wire terminal connector.
They have various protections for short circuit, overload and over temperature. If powered by 802.3bt PoE @ 90W the total output power is 72W Max. If powered by 802.3at @ 30W then total output power is 24W. If powered by 802.3af @15.4W the total output power is 12W. Input power should be ~20% higher than required total output power.Features:
- Converts 802.3af/at/bt PoE input to PoE and VDC output
- Selectable VDC Output: 5V,9V,12V, 24V
- Gigabit Ethernet compatible
- Combined Outputs up to 72W with 90W input
- 2 pair and 4 pair input compatible
- Short Circuit, Over Current, Over Temperature Protections

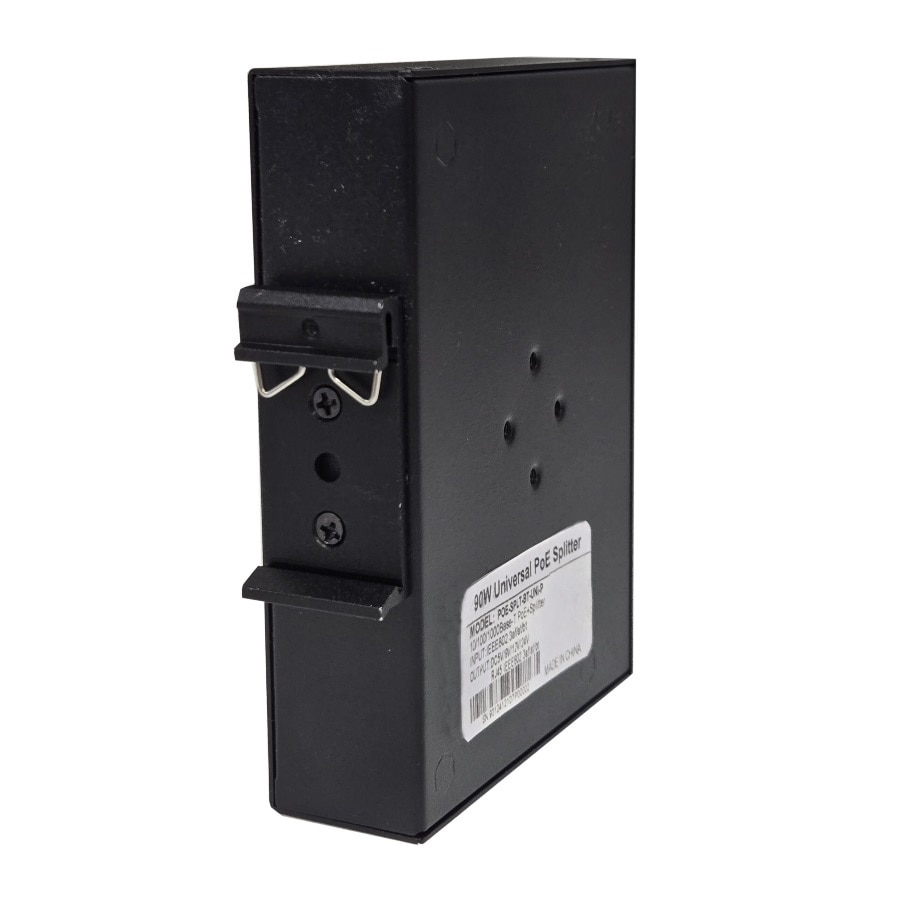

- DIN Mount Metal Housing
- Industrial Temperature Operation: -40C to +75C
Specifications
Specifications POE-SPLT-BT-Uni-P
| Output Voltage ( with 90W 802.3bt PoE input) | 5VDC @ 14A 9VDC @ 7.8A 12VDC @ 5.9A 24VDC @ 3A 48VDC on PoE Out Port (802.3af/at/bt compatible) |
| Max Combined Total Output Power | 72W with 90W PoE Input (802.3bt) 24W with 30W PoE Input (802.3at) 12W with 15.4W PoE Input (802.3af) |
| Output Connectors | Shielded RJ45 & Wire Terminal (up to 12AWG) |
| POE Input (RJ45) | 802.3af/at/bt 48VDC (2 or 4 pairs), 44V to 57V |
| Ethernet Speed | 10/100/1000MB (Gigabit) |
| Efficiency | 80% Min |

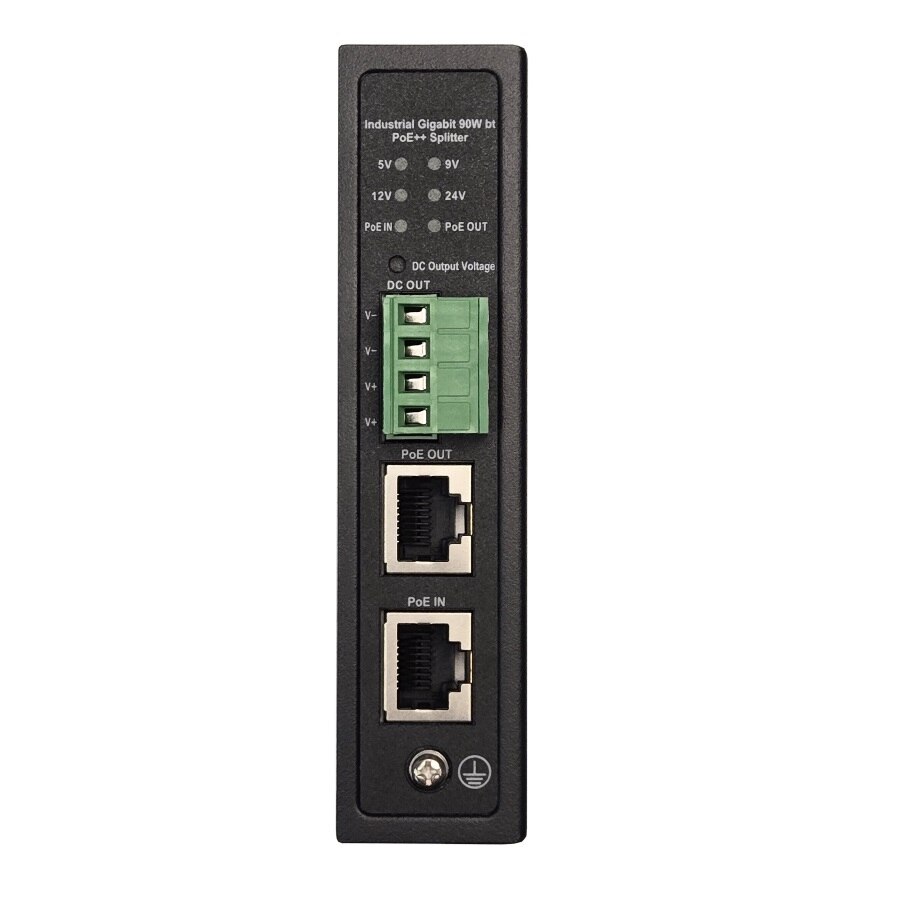

| LED Function | PoE IN Steady Green = Power is Stable PoE Out Steady Green = PoE Out is delivering PoE to a device Voltage Indicator LEDs = Shows selected VDC Output Voltage |
| EMC Standards | FCC Class B NE55022 Class B |
| Operating Temperature | -40 to +75°C ( -40F to +167°F) |
| Operating Humidity (RH) | 5% - 90% non condensing |
| Storage Temperature | -40 to +75°C (-40 to +167°F) |
| Dimensions (LxWxH) | 119 x 85.5 x 28mm ( 4.7 x 3.4 x 1.1” ) |
| Weight | 380g (0.83 lbs) |
| Warranty | 3 Years |
