Tycon Power RemotePro, 200Ah Lithium Battery, 170W Sol, 12/24V MPPT

Tycon Power RPL12/24M-200L-170

RemotePro, 200Ah Lithium Battery, 170W Sol, 12/24V MPPT

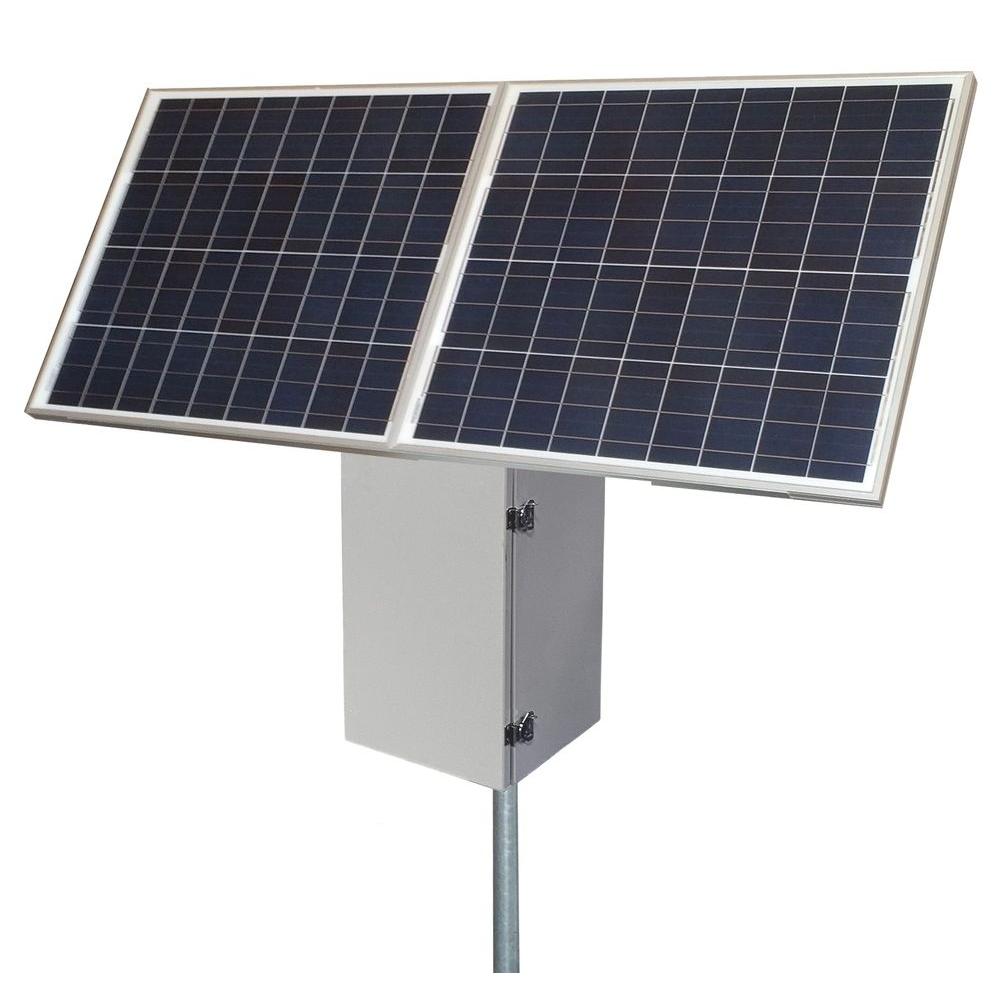

The RemotePro® 170W Lithium Series outdoor power systems from Tycon Power® are meticulously designed for applications requiring a primary off-grid power source to run various equipment. These robust systems feature vented, weatherproof enclosures offering generous space inside for mounting customer equipment. With multiple mounting brackets welded inside, you can mount DIN rails or flat plates, ensuring versatile installation options. Mount the enclosures to a wall or pole using the included mounting bracket system for added flexibility.

High-Quality Solar Panels

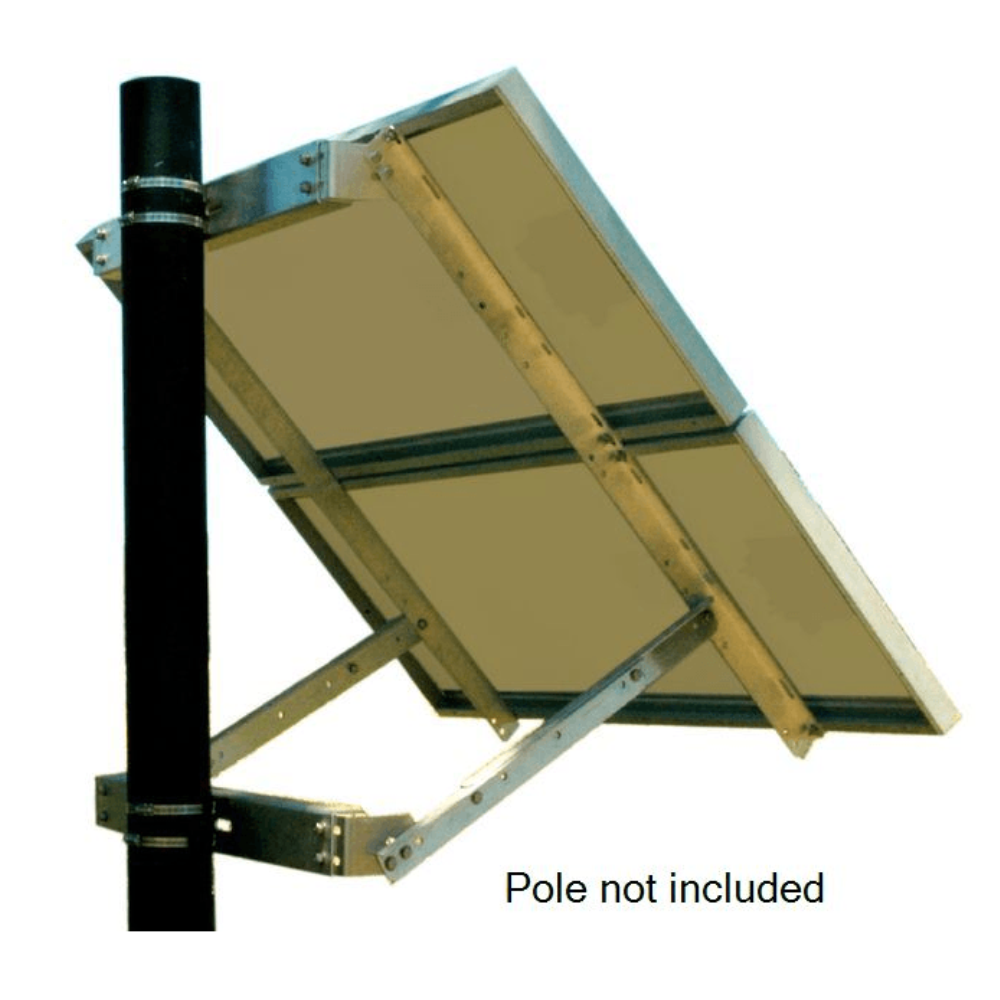

25-Year Power Output Guarantee: The high-quality solar panels come with a 25-year power output guarantee and a +5W output tolerance. You can mount the enclosures and solar mounts to a wall or pole (2-4”) using the included mounting system. This setup ensures optimal sunlight exposure, maximizing the efficiency of the solar panels.

Advanced Battery Protection

MPPT Battery Charge Controllers: The systems include advanced MPPT battery charge controllers with LVD load control, which provide precise control and monitoring of the solar charging process. These controllers protect the batteries from over-charging or over-discharging, extending their lifespan and ensuring reliable performance.

Reliable Lithium Batteries

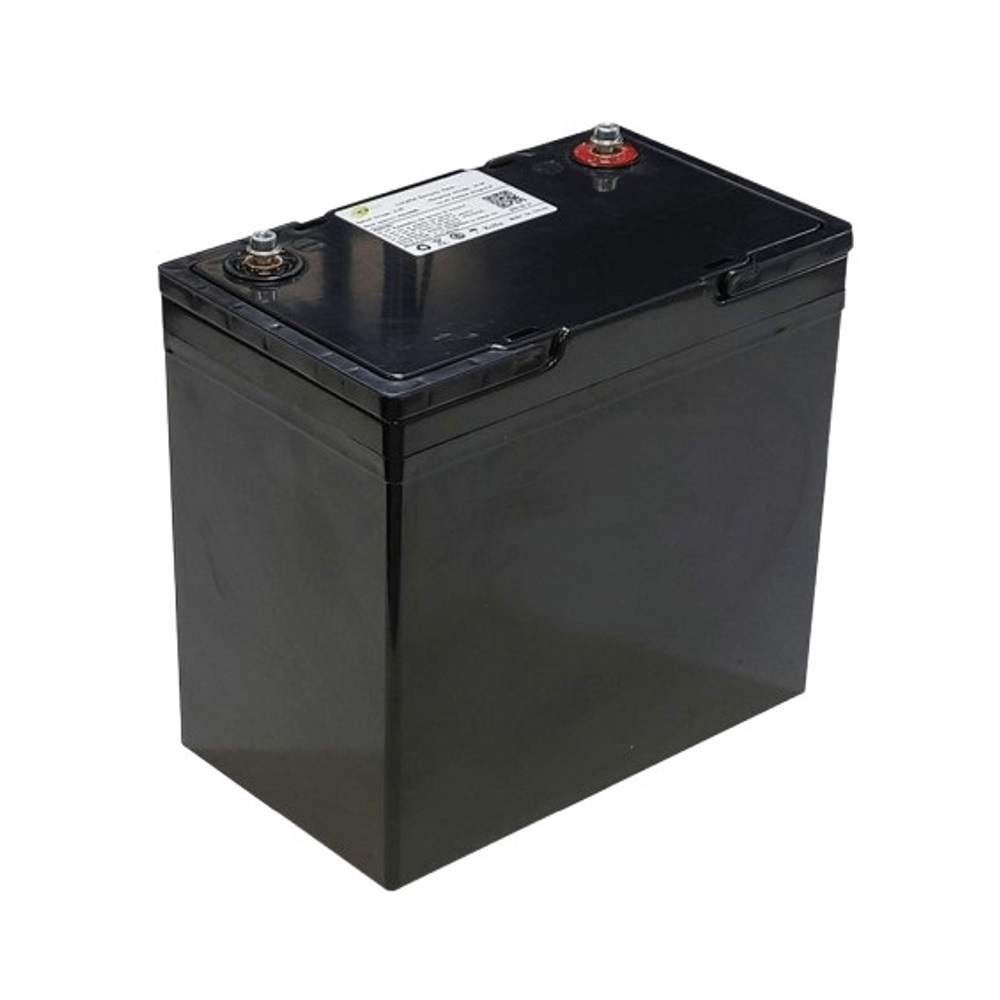

LFP (LiFePO4) Lithium Batteries: The systems use LFP (LiFePO4) Lithium batteries, offering superb 80% deep discharge and 4000+ cycle life performance. With an embedded BMS (Battery Management System), you can enable a 10+ year battery life, providing a dependable power source for various applications. Configure the systems as 12V or 24V battery voltage, catering to different power requirements.

Durable and Secure Enclosures

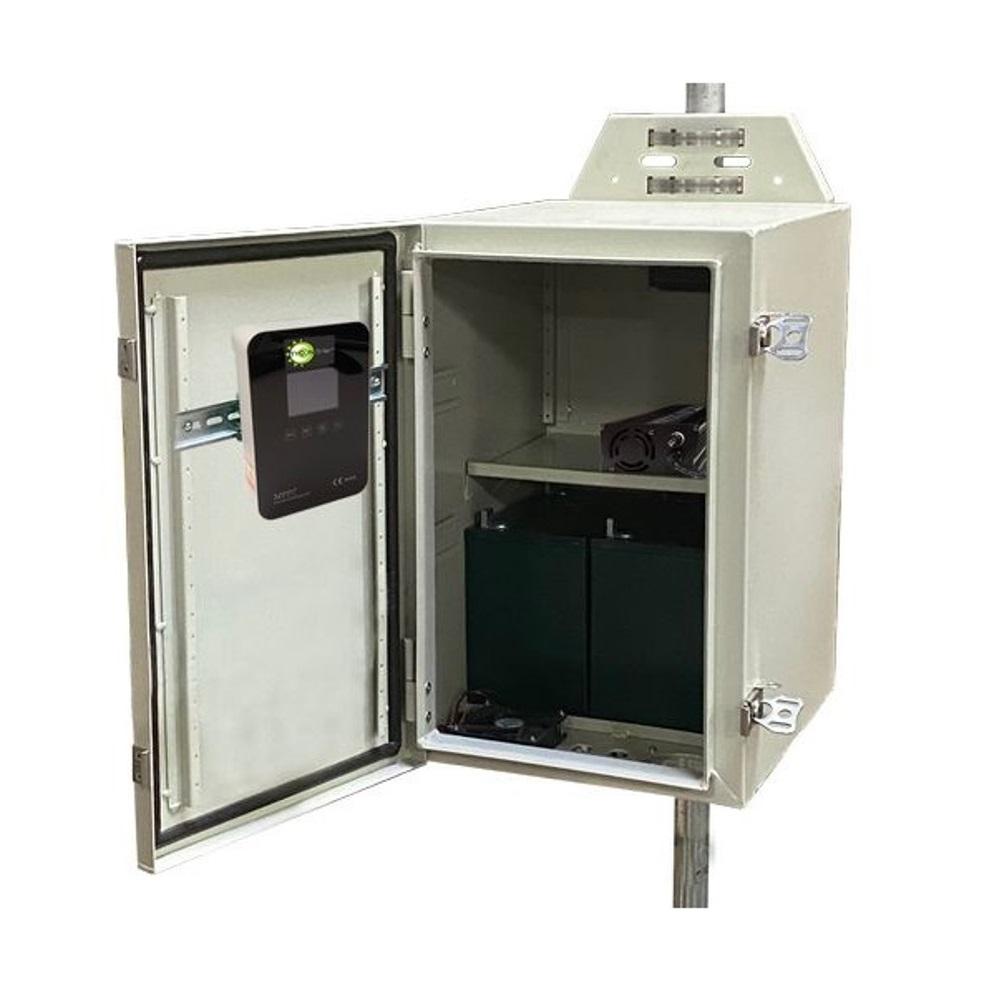

Powder-Coated Steel or Aluminum Construction: The outdoor enclosures, made from durable powder-coated steel or aluminum, hinge and gasket-seal with a locking closure that accepts a common padlock for security. This robust construction ensures the enclosures withstand harsh environmental conditions while keeping internal components safe.

Cable Gland Ports for Flexible Wiring: The enclosures feature four cable gland ports for CAT5/6 cables, antenna cables/connectors, or other cabling. This design guarantees a clean and organized installation, providing flexibility for various wiring needs.

Efficient Thermal Management

Thermostatically Controlled Fan Assembly: The included thermostatically controlled fan assembly activates automatically when the temperature exceeds 45°C, ensuring optimal operating temperatures. This feature protects the internal components while enhancing the system’s longevity.

Comprehensive Cabling Included

Complete Cabling Solution: The systems come with all the necessary cabling to connect the batteries to the controller. Additionally, a 20’ outdoor-rated cable connects the solar panels to the controller, ensuring a hassle-free installation process.

Features:

• Complete 170W Remote Power Solution for Off-Grid Operation
• 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries
• Weatherproof Outdoor Enclosures accommodate up to 400Ah Battery
• Enclosures can be Wall or Pole Mounted (pole not included)
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation

Applications:

• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Backup Power
