Tycon Power 90/264VAC, 24VDC 120W, Smart Battery Charger, Reg
- SKU: TP-BC24-120XT
Product Information

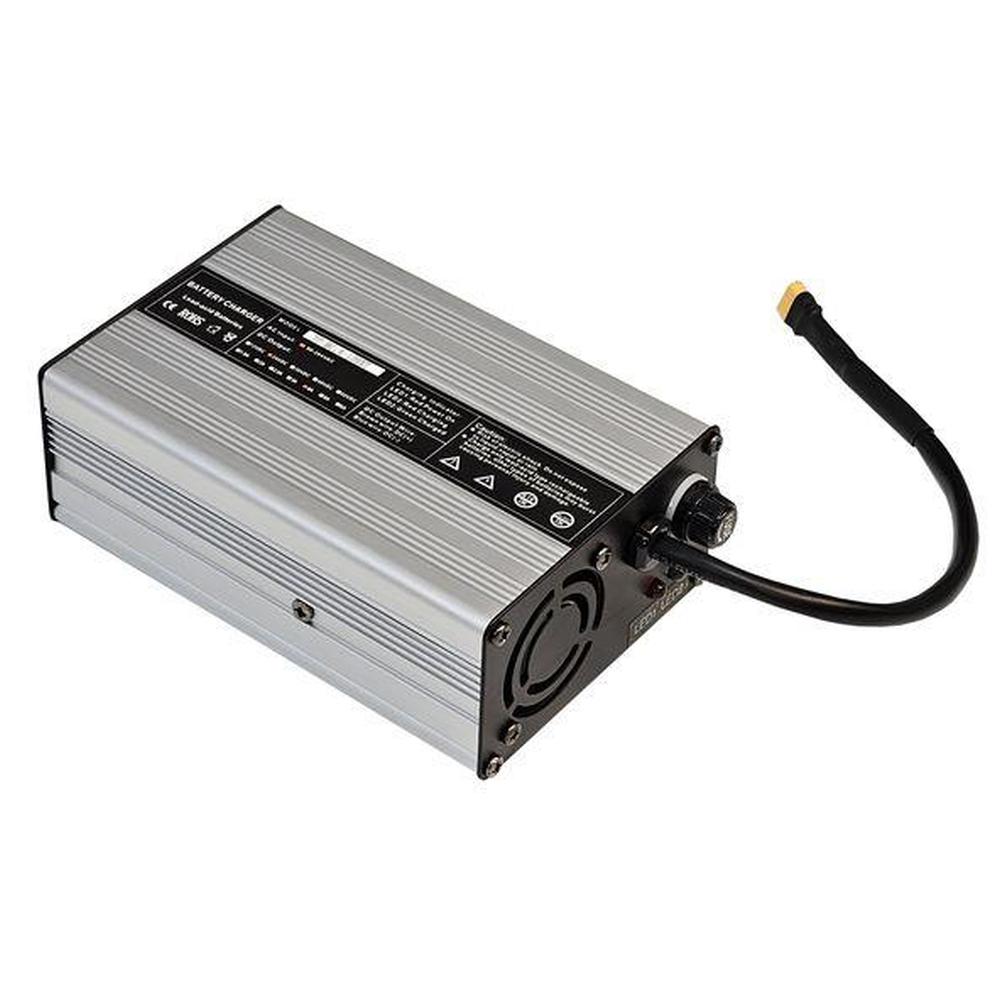

Tycon Power TP-BC24-120XT
90/264VAC, 24VDC 120W, Smart Battery Charger, Reg
The TP-BC24-120XT battery charger from Tycon Systems® provides up to 120W of total charging power. It is designed to be compatible with GEL and AGM type sealed lead acid batteries, as well as Lithium batteries equipped with a BMS that accepts Lead Acid charging voltages. This versatile compatibility ensures that the charger meets the needs of various applications.
Comprehensive Protections: The charger includes protections for short-circuit, overload, over-voltage, over-current, and over-temperature scenarios. These protections safeguard your batteries and devices from potential damage, ensuring safe and reliable operation. Additionally, the charger operates over a wide temperature range, making it suitable for various environments.
Quick Disconnect: The unit features an XT30 connector and pigtail cable for quick disconnect, providing convenience and ease of use. This feature allows for fast and efficient connection and disconnection, making the charger user-friendly.
Status Monitoring
LED Indicators: The charger includes an LED indicator that clearly displays the charging status. When the battery is charging, the LED glows red. When the battery is fully charged, the LED turns green. This easy-to-read indicator allows users to monitor the charging process at a glance, ensuring they are always aware of the charging status.
Versatile Operation
Removable AC Cord: The unit comes with a right-angle removable AC cord equipped with a North American 3-prong plug. This removable feature adds convenience for users who may need to replace or store the cord separately. The charger operates within a wide voltage range of 90VAC to 264VAC, which is auto-ranging, ensuring compatibility with various power sources.
Features:
- AC Battery Charger
- 120W Total Power
- Small Form Factor, Low Cost
- Over-Voltage, Over-Current, Over-Temp, Over-Load, Short-Circuit Protections
- Led indicator: Red=Charging, Green=Battery Full
- Wide temperature operation
- CE and FCC Certifications
Applications:
- Wireless Base Stations, Cellular Base Stations
- Surveillance Systems
- Battery Backup Systems
Specifications
Specifications TP-BC24-120XT
| Total Power Available (for Load and Battery charging) | 120W |
| Nominal Battery Voltage | 24VDC |
| Battery Charge Max Current | 4A |
| Battery Charger Voltage | 29.2V |
| Load Regulation | 5% |
| Line Regulation | 3% |
| Efficiency | 85% Minimum |
| Output Connector | 200mm (8”) long DC cable with XT30 disconnect connector + additional 200MM (8”) long pigtail cable with XT30 and tinned ends |
| EMC Standards | FCC Class B , NE55022 Class B |
| Safety Standards | CSA 22.2, TUV EN60950 |
| AC Power Input | 90VAC / 264VAC , 47/63Hz |
| AC Input Current | 2A Max |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MOhm, 500VDC |
| Operating Temperature | -10 to +50C (14 to +122°F) |
| Operating Humidity (RH) | Up to 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| MTBF (Mean Time Between Failure) | >50,000 hrs |
| Dimensions (LxWxH) | 152 x 89 x 51mm ( 6 x 3.5 x 2”) |
| Weight | 490g (1.08 lbs) |
| Warranty | 3 Years |
