Tycon Power 100/240VAC, 63V 900W, Smart Battery Charger, Reg
- SKU: TP-BC63-900XT
Product Information
Tycon Power TP-BC63-900XT
100/240VAC, 63V 900W, Smart Battery Charger, Reg
The TP-BC12-120XT battery charger from Tycon Systems® provides up to 120W of total charging power, making it an excellent choice for various power needs. This versatile charger is compatible with GEL and AGM type sealed lead acid batteries, as well as Lithium batteries equipped with a BMS that accepts Lead Acid charging voltages.
Comprehensive Protections: The charger includes protections for short-circuit, overload, over-voltage, over-current, and over-temperature scenarios. By offering these safeguards, the TP-BC12-120XT ensures that your batteries and devices remain protected from potential damage, promoting safe and reliable operation. Additionally, the charger operates over a wide temperature range, ensuring consistent performance in various environments.
Quick Disconnect: The unit features an XT30 connector and pigtail cable for quick disconnect. This convenient feature allows for fast and efficient connection and disconnection, making the charger user-friendly and easy to use.
Status Monitoring
LED Indicators: The charger includes an LED indicator that provides clear status updates. When the battery is charging, the LED glows red. When the battery is fully charged, the LED turns green. This easy-to-read indicator allows users to monitor the charging process at a glance, ensuring they are always aware of the charging status.
Versatile Operation
Removable AC Cord: The unit comes with a right-angle removable AC cord equipped with a North American 3-prong plug. This removable feature adds convenience for users who may need to replace or store the cord separately. The chargers are auto-ranging, capable of operating within a voltage range of 90VAC to 264VAC, ensuring compatibility with various power sources.
Features:
- AC Battery Charger
- 120W Total Power
- Small Form Factor, Low Cost
- Over-Voltage, Over-Current, Over-Temp, Over-Load, Short-Circuit Protections
- Led indicator: Red=Charging, Green=Battery Full
- Wide temperature operation
- CE and FCC Certifications
Applications:
- Wireless Base Stations, Cellular Base Stations
- Surveillance Systems
- Battery Backup Systems
Specifications
Specifications TP-BC63-900XT
| Total Power Available (for Load and Battery charging) | 900W |
| Charger Output Max Current | 14A |
| Charger Output Voltage | 63V |
| Load Regulation | 0.05 |
| Line Regulation | 0.03 |
| Efficiency | 87% Minimum |

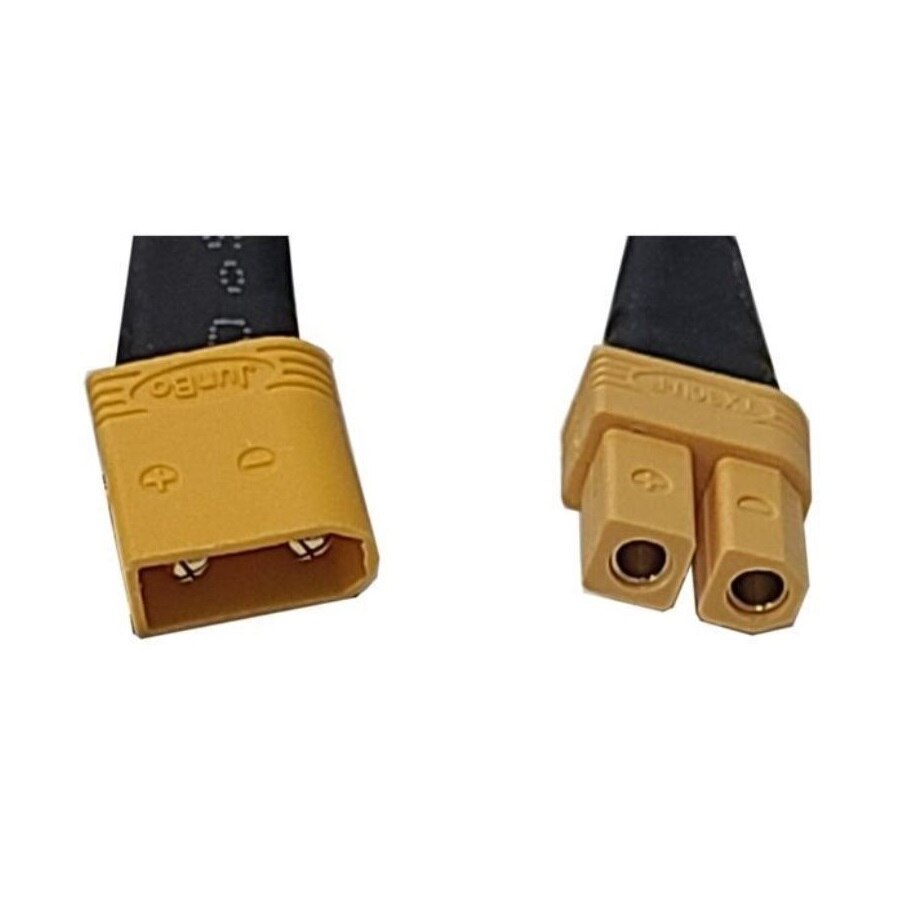

| Output Connector | Attached 610mm (24”) long cable with XT60 disconnect connector ; also separate pigtail: 457mm (18”) cable with XT60 mating connector and bare wire connections. |
| EMC Standards | FCC Class B , NE55022 Class B |
| Safety Standards | CSA 22.2, TUV EN60950 |
| AC Power Input | 100VAC / 240VAC , 47/63Hz , Attached 3 prong US Power Cord. 34” Long |
| AC Input Current | 2A Max |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MOhm, 500VDC |
| Operating Temperature | -10 to +50C (14 to +122°F) |
| Operating Humidity (RH) | Up to 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| MTBF (Mean Time Between Failure) | >50,000 hrs |
| Dimensions (LxWxH) | 280 x 125 x 55mm ( 11 x 4.9 x 22”) |
| Weight | 1.6kg (3.5lb) |
| Warranty | 3 Years |
