Tycon Power 18-36VDC IN 24VDC OUT 70W High Power
- SKU: TP-DCDC-2424GR-VHP
$169.31 $178.23
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information

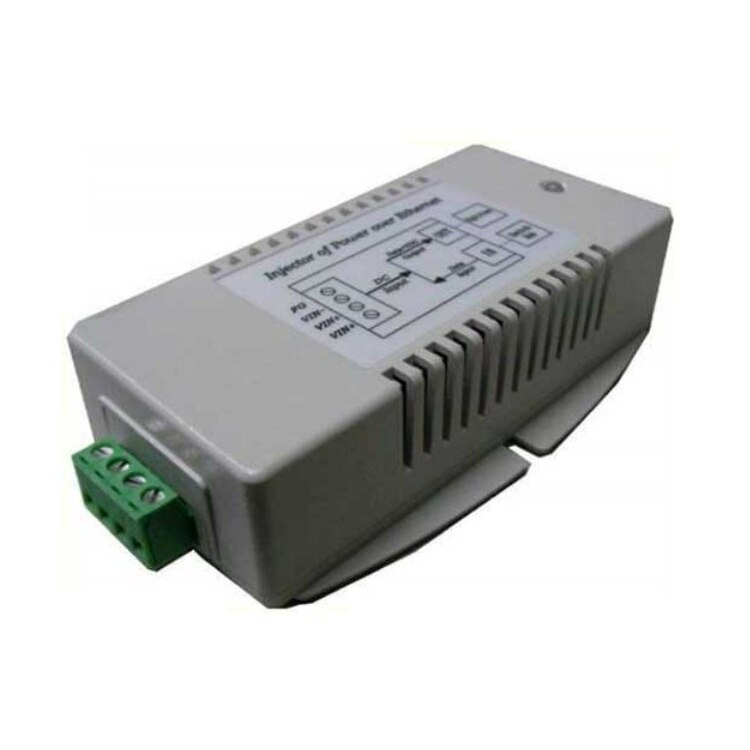

Tycon Power TP-DCDC-2424GR-VHP
18-36VDC IN 24VDC OUT 70W High Power
The Gigabit compatible TP-DCDC-2424GR-VHP are special very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber x™ wireless radio systems and other systems which require high power passive PoE (High PoE). The unique POE inserter supplies 24VDC PoE power on all 8 Ethernet wires (4 pair) with the following pinout: 1,2,4,5 V+ and 3,6,7,8 V
They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
The units are DIN rail mountable with available adapters: Model DIN-ClipKit-Uni
Features:
- Input Voltage 24VDC (18-36VDC)
- 8 wire 24VDC Passive POE Output
- High Power Output to 70W
- Dual DC Inputs for Connecting 2 Power Sources
- Gigabit Data Thruput
- Low self consumption power (<2W)
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- Industrial Temperature Range
Specifications
Specifications TP-DCDC-2424GR-VHP
| Input Voltage | ±18VDC to 36VDC |
| DC Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| PoE Specification | Passive PoE (8 Wire, 4 Pair) |
| PoE Pinout | 1,2,4,5 V+ and 3,6,7,8 V- |
| Output Voltage | 24VDC |
| Data In & Data/PoE Output Connector | RJ45 (Shielded), Shield is connected to FG (Frame Ground) Input |
| Output Current (max) | Up to 2.9A |
| Output Power (max) | 70W Total |
| Self Consumption Power | 2W |
| Efficiency (min) | 85% |
| Line Regulation, Ripple, Noise | 1% |
| Load Regulation | 5% |
| EMC Standards | FCC Class B EN55022 Class B |
| Safety Standards | UL1950, CSA 22.2 &TUV EN60950 |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 90% |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Dimensions | 125 x 75 x 38mm (4.9 x 3 x 1.5") |
