Tycon Power 4 Port PoE Gigabit Midspan UniVolt Injector
- SKU: TP-MS4G-VHP
Product Information

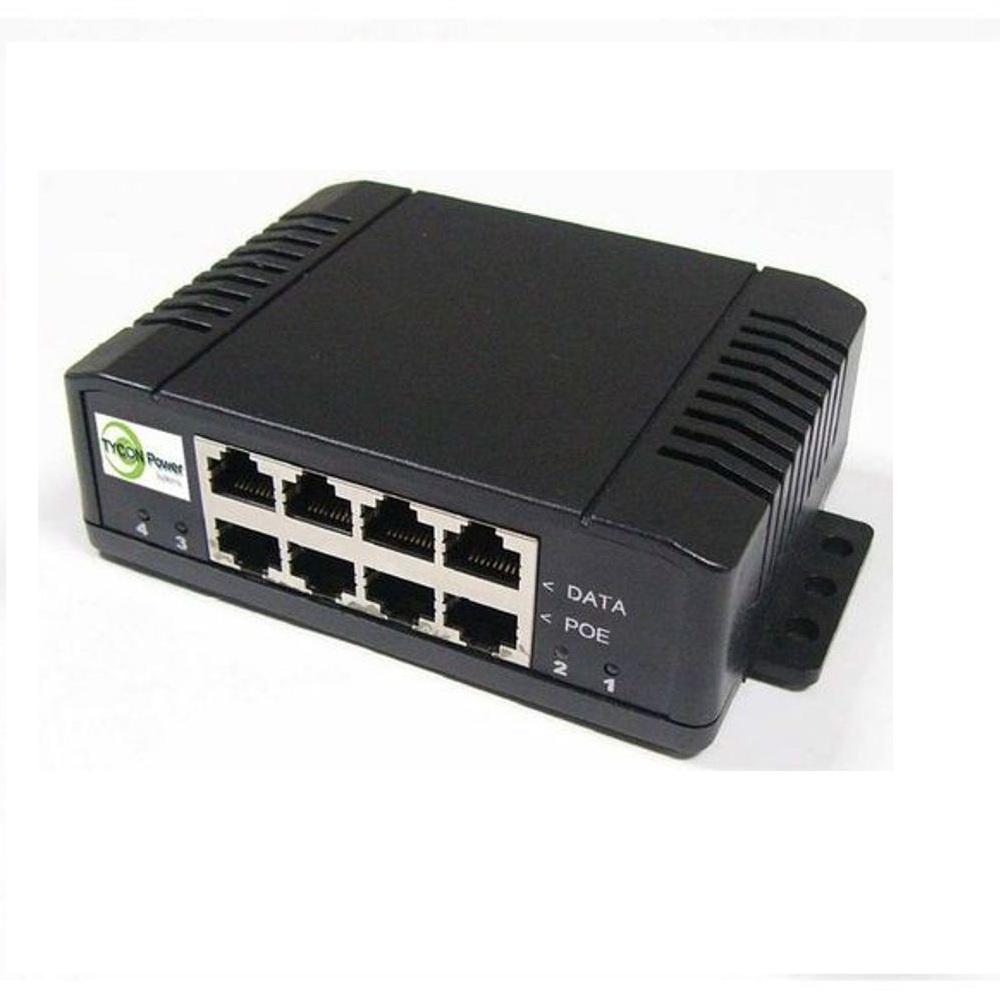

Tycon Power TP-MS4G-VHP
4 Port PoE Gigabit Midspan UniVolt Injector
The TP-MS4G-VHP mid span PoE power sources are used for supplying PoE and data to multiple devices from a central location such as an operations room or equipment cabinet. The PoE devices feature a separate data-in port coupled with a data out/PoE port. The PoE function is considered 4 Pair Passive PoE which is sometimes referred to as “High PoE”. The units support Gigabit Ethernet and are backward compatible to 10/100MB.
The Midspan features Universal Voltage (UniVolt™) PoE outputs where the PoE voltage equals the input voltage. All ports will have the same PoE voltage.
PoE DC Voltage (20V-60V) is supplied on pins 1,2 (V-), 3,6 (V+) and 4,5 (V+) and 7,8 (V-). The unit can accept + or – voltage on input however the design is a non-isolated design. Maximum power output per port is 1.8A. The individual outputs are overcurrent, over/under voltage and short circuit protected.
The midspan is DIN Rail mountable with the included DIN Rail brackets.
Specifications
Specifications TP-MS4G-VHP
| Ethernet Standard | IEEE802.3/IEEE802.3u/IEEE802.3ab (10 base-T/100base-T/1000base-T) |
| POE Standard | Passive PoE, 4 Pair Power, High PoE |
| PoE Pinout | 1,2 (V-) 3,6 (V+) and 4,5 (V+) 7,8 (V-) |
| Shielded RJ45 Ports | 4 data-in ; 4 data/PoE out, Port shield is connected to FG (frame ground) |
| Max Device Distance | 100m (328ft) |
| Maximum PoE Power | Up to 1.8A Per Port |
| POE Protection | Over Current, Over/Under Voltage, Short Circuit |
| LED’s | Green - A valid power device is detected on this port. Active current is >100mA. Red - No power device is detected on this port. Off - No input power, or input source in alarm condition. Alarm: voltage is more than 65VDC, or less than 15VDC. Alarm: current is >2A. |
| DC Power Input | 20VDC to 60VDC, Unit can accept + or – VDC on input, non-isolated design, Fused at 10A |
| Self Consumption | <1W |
| Operating Temperature | -30C to +60C (-40F to 140F) |
| Operating Humidity (RH) | Up to 90% , Non Condensing |
| Storage Temperature | -40C to +85C (-40F to 185F) |
| Dimensions (LxWxH) | 90mm x 118mm x 40mm (3.5” x 4.6” x 1.5”) |
| Weight | 0.45kg (1lb) |
