Tycon Power Gigabit POE Midspan AC/DC 12 Port 24V
- SKU: TP-NCMS412-24
Product Information

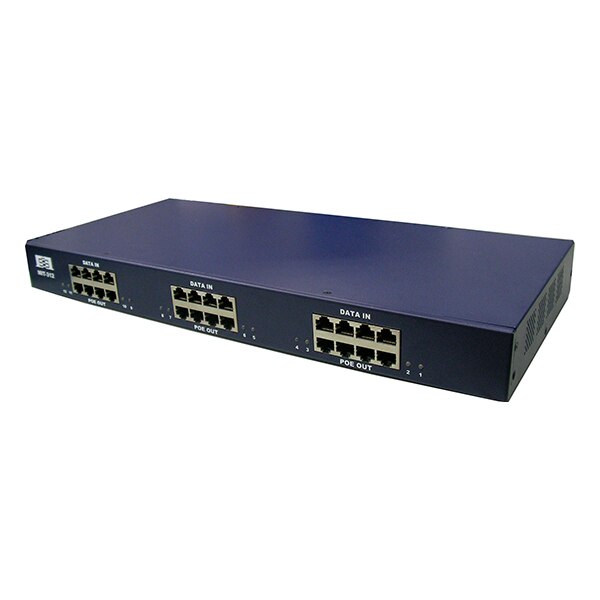

Tycon Power TP-NCMS412-24
POE Midspan Injectors
The TP-NCMS series of rack mount mid span POE power sources are used for supplying POE and data to up to 12 devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port which employs built in Ethernet surge suppression. The POE function is not IEEE802.3af compliant, useful for powering those devices that require a POE voltage other than 48V. The TP-NCMS412-24 has AC and DC inputs. The DC input is regulated so if running off a battery system the 24V POE to the client devices won’t exceed 24.5V. When running from DC input voltage the TP-NCMS412-24 can operate down to 12VDC and POE output voltage will equal the DC input voltage – 2V.
POE DC Voltage is supplied on pins 4,5 (V+) and 7,8 (V-). The individual outputs are overload, short circuit and surge protected.
The 1U rack mounting accommodates 19" or 23" racks with included brackets.
Specifications
Specifications TP-NCMS412-24
| Ethernet Standard | IEEE802.3/IEEE802.3u (10/100/1000Mbps) |
| POE Standard | Passive/Non Compliant- POE Voltage supplied on pins 4,5(+), 7,8(-) |
| Shielded RJ45 Ports | 12 data-in; 12 data/POE out |
| Max Device Distance | 100m (328ft) |
| Max Current per Port | 1A @ 24VDC |
| POE Protection | Over Temperature, Over Current, Over/Under Voltage |
| LED's | Power On and POE ready(RED); Power Outputting power(GREEN); Power Off (LED OFF) |
| AC Power Input | 90-264VAC, 50/60Hz |
| AC Input Current | 4A @ 115VAC / <2 @ 230VAC |
