Tycon Power 6 Panel Adapter Kit for TPSM-350x2-TP. Total Solar Capacity = 2.1KW
- SKU: TPSM-350x6-AdapterKit
Product Information
Tycon Power TPSM-350x6-AdapterKit
6 Panel Adapter Kit for TPSM-350x2-TP. Total Solar Capacity = 2.1KW

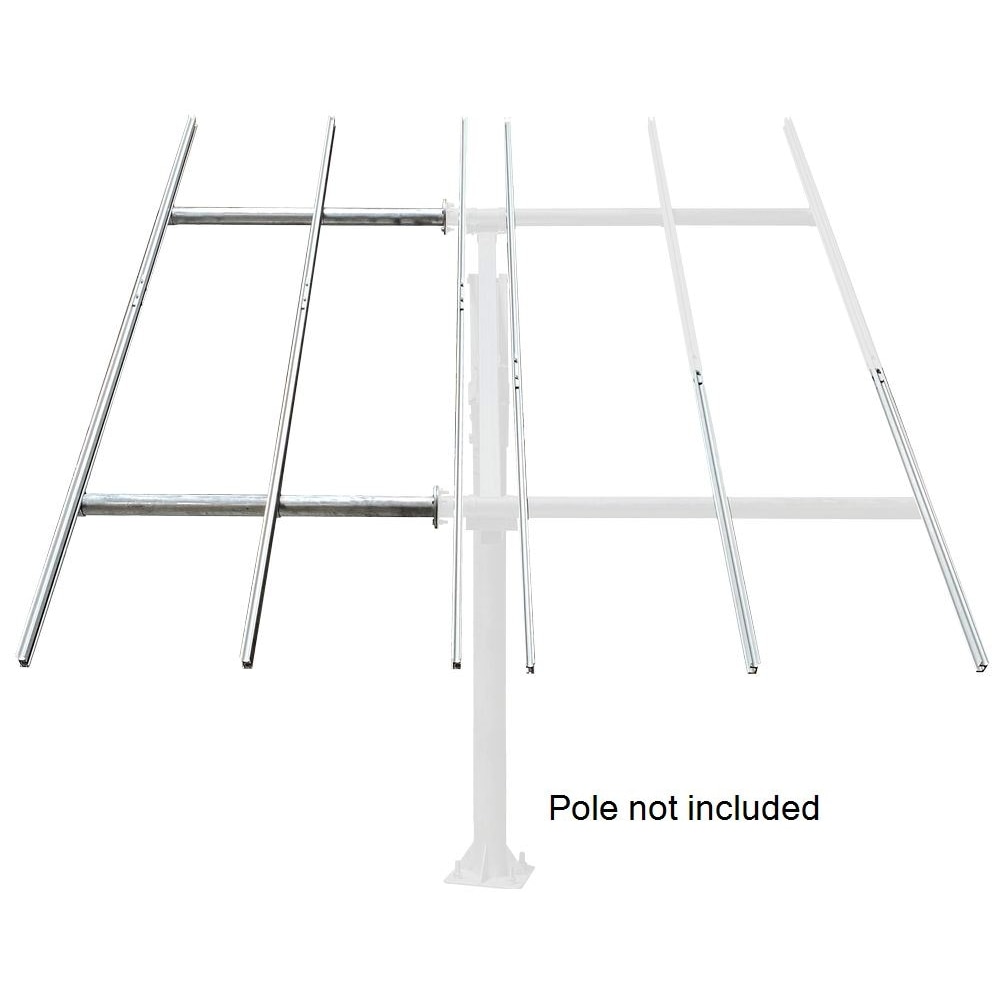

Tycon Solar’s TPSM-350×6-AdapterKit provides all the components needed to convert the TPSM-350×2-TP two-panel solar mount into a six-panel solar mount. This comprehensive kit offers a reliable and efficient solution for expanding your solar panel system. Consequently, it ensures a seamless upgrade.
Comprehensive Kit Contents
All Necessary Components: The adapter kit includes ten mounting rails, two cross beam extensions, and all the necessary hardware for assembly. This comprehensive collection ensures you have all the essential parts needed for an efficient and effective conversion.
Solar Panel Mounting Brackets: The kit also includes solar panel mounting brackets. This feature guarantees that your panels are securely and properly mounted. Therefore, you get a stable and reliable setup for your solar power system.
Durable and Reliable
High-Quality Materials: The TPSM-350×6-AdapterKit components use high-quality materials, ensuring durability and long-lasting performance. The robust construction allows the kit to withstand various environmental conditions. Thus, it provides reliable support for your solar panels over time.
Easy Installation
User-Friendly Design: The adapter kit’s design allows for easy installation, facilitating quick and straightforward setup. This user-friendly feature saves time and reduces labor costs. Consequently, the TPSM-350×6-AdapterKit becomes an economical choice for expanding your solar panel system.
Expandability
Seamless System Expansion: By using the TPSM-350×6-AdapterKit, you can easily expand your existing solar panel system from two panels to six panels. This adaptability ensures that your solar power system grows with your energy needs. Therefore, it provides a flexible and scalable solution for various applications.
Features:
- All components required to add an additional 4x 60-72 cell panels (nominally 230-360 watt) to the TPSM-350×2-TP 2 panel mount.
- Stainless Steel, Galvanized Steel, and Anodized Aluminum construction.
Specifications
Specifications TPSM-350x6-AdapterKit
| U-Bracket with Grounding Plate | 2 |
| U-Bracket | 6 |
| 76 x 1300mm Extension Cross Beam | 2 |
| M8*30 Stainless Bolt with Flat Washer, Lock Washer and Nut | 16 |
| M12*36 Stainless Bolt with Flat Washer, Lock Washer and Nut | 8 |
| Vertical Rail – 1828mm Length | 4 |
| Vertical Rail Extension – 1370mm Length | 6 |
| Rail Couplers | 8 |
| Solar Panel End Clamps (35-50mm) | 8 |
| Solar Panel Inner Clamps (35-50mm) | 10 |
| Crate Outside Dimensions | 1828 x 203 x 203mm (72 x 8 x 8”) |
| Shipping Weight | 30kg (65lbs) |
| Warranty | 3 years |
