Tycon Power RUT241 Bundle. Incl. 150GB of RMS data , 12 months of RMS Remote Access credits, AC/DC power supply
- SKU: TS-RUT241-BUNDLE
Product Information
Tycon Power TS-RUT241-BUNDLE
RUT241 Bundle. Incl. 150GB of RMS data , 12 months of RMS Remote Access credits, AC/DC power supply, 48" DC Power Cable and External MIMO antenna
The TS-RUT241-BUNDLE includes a field-proven Teltonika RUT241 Industrial 4G Cellular/Wi-Fi router and all necessary accessories for rapid deployment in remote locations. Compatible with major carriers such as Verizon, AT&T, and T-Mobile, the router requires a carrier-provided SIM card and data plan for cellular network access.
Connectivity: This comprehensive kit offers twelve months of connectivity and a 150GB data allowance through the Tycon® RMS portal. This user-friendly portal enables centralized management and control of deployed routers, including software updates and configuration adjustments. Additionally, users can establish a VPN hub utilizing the platform and OpenVPN software to securely access devices such as security cameras and sensors connected to remote routers at no extra charge.

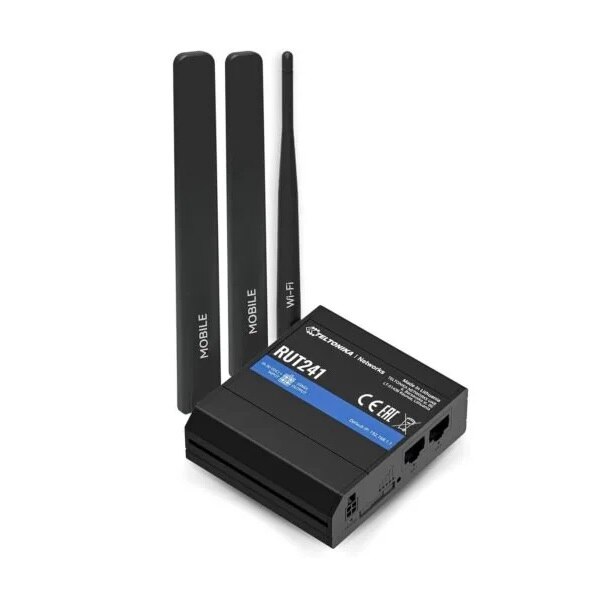

Reception: The kit comes with indoor antennas for Cellular and WiFi and also a weatherproof 4G MIMO cellular / WiFi antenna for enhanced signal reception.
Power: The router kit accepts 9-30VDC from multiple power sources. It can be powered with the included AC/DC adapter, directly from batteries using the included DC Cable, or via 24V Passive Power Over Ethernet (PoE) connection through the LAN port.
Mounting: The router can be conveniently mounted using the provided DIN Rail adapter.
Features:
- Teltonika RUT241 4G Cellular/WiFi Industrial Router
- Compatible with SIM from all major carriers (SIM not included)
- Includes SIM adapter kit for Nano and Micro SIM
- Includes 12 month management package and 150Gb
- management data package
- Includes AC Power Supply and DC cable for operation from 9-
- 30VDC. Can also be powered by 24V Passive PoE.
- Includes DIN Rail Mount Kit for 35mm DIN Rails
- Includes Indoor Antennas for Cellular + WiFi and Weatherproof
- 4G MIMO Cellular + WiFi Puck Antenna.
- Includes CAT5E 1.5M Ethernet Patch Cable
- -40 to +75C Operating Temperature
Applications:
- Monitor/Control Remote Systems
- Environmental Monitoring
- RemotePro® and UPSPro® Systems
- Smart Grid Management
- Security and Surveillance
- Oil and Gas Management
- IoT Connectivity
- Agriculture/ Livestock
Specifications
Specifications TS-RUT241-BUNDLE
| Cellular Compatibility | 4G/LTE (Cat 4), 3G, 2G |
| Flash Memory and RAM | 16 MB Flash ; 128 MB RAM |
| Ethernet Ports | Qty 2 10/100 Mbps Shielded RJ45 Ports (1x LAN and 1x WAN) Note: WAN port can be configured as LAN port in user interface |
| Network Routing | Static Routing, Dynamic Routing(BGP,OSPF v2, RIP v1/2, RIPng, OSPF6 |
| Firewall | Port Forward, Traffic Rules, Custom Rules |
| DHCP | Static and Dynamic IP allocation, DHCP Relay |
| VPN | OpenVPN Compatible |
| Other Network Capabilities | QOS, DDNS,Load Balancing, VoIP Passthru, VLAN (port and tag), DDOS Prevention, MAC Filter |
| WiFi Compatibility | IEEE 802.11b/g/n, Configurable as Access Point (AP) or Client (STA) |
| WiFi Security | WPA2-Enterprise-PEAP, WPA2-PSK,WEP,WPA-EAP,WPA-PSK,AES-CCMP,TKIP |
| Extra Interfaces | 1x Digital Input + 1x Digital Open Collector Output on 4 Pin Power Connector |
| Antennas | 2x 4G Cellular Indoor Antenna, 1x WiFi 2.4GHz Indoor Antenna 1x Weatherproof 4G MIMO + WiFi Mobile Antenna |
| Antenna Connectors | 2x SMA Cellular ; 1x RP-SMA WiFi |
| Status LEDs | 1x Power LED, 2x Lan Status, 5x Signal Strength, 3x Connection Type |
| Power Options | 9-30VDC via Power Connector or 24V Passive PoE to LAN Port |
| AC/DC power supply | Input:100-240VAC 50/60Hz, Output: 9VDC 1A |
| Power Connector Type | Molex 0430250400 4 pos miniature connector housing Molex 0430300009 connector socket for 20-24AWG wire |
| Power Consumption | <6.5W Max |
| Surge Protection | EN 61000-4-5:2006 |
| Reset Button Function | Reboot / Factory Reset |
| Housing Construction | Aluminum Housing with plastic front and back panels |
| Mounting Method | DIN Rail with included DIN adapter, Mounting slots on bottom and sides of housing |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Operating Humidity | 10% - 95% Non-Condensing |
| Dimensions | 3.3 x 1.0 x 2.9” (83 x 25 x 74mm) |
| Router Weight | 4.4 oz (125g) |
| Shipping Weight | 1.1lb (0.5kg) |
| Regulatory | CE, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, WiFi Certified, CCC, Anatel, GCF, REACH, Thailand NBTC, Ukraine UCRF, SDPPI(POSTEL) |
| Carrier Certifications | Verizon, T-Mobile, AT&T |
| Device Management | Web Based User Interface, Tycon® RMS Management Portal |
| Warranty | 2 Years |
