Tycon Power UPSPro 24V 40Ah Battery Backup System, 24V 30W Passive PoE + 24V 1.5A Aux Output, 120/240VAC Power Supply, Pole/Wall Mount Poly Enclosure
- SKU: UPS-PL2424-40L
Product Information
Tycon Power UPS-PL2424-40L
UPSPro 24V 40Ah Battery Backup System, 24V 30W Passive PoE + 24V 1.5A Aux Output, 120/240VAC Power Supply, Pole/Wall Mount Poly Enclosure
The UPSPro® series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable via Power over Ethernet (PoE) using a PoE Supply/Inserter (included).

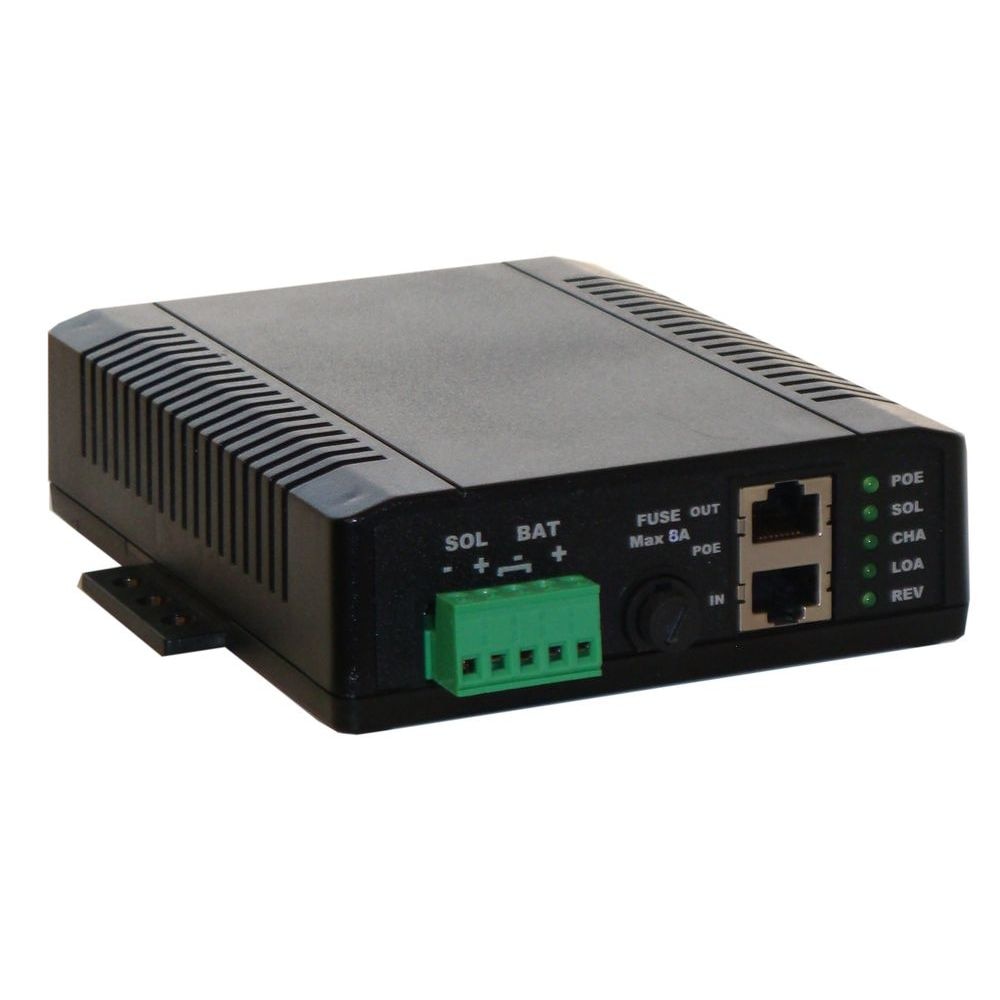

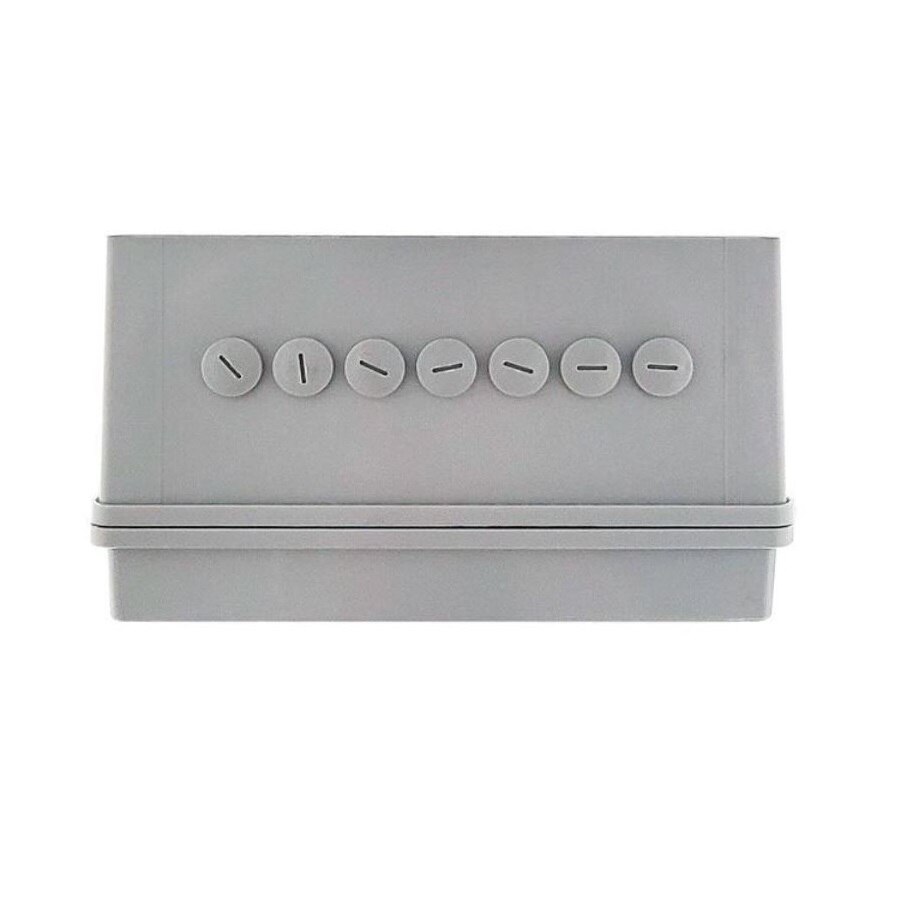

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries or LiFePO4 Lithium batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

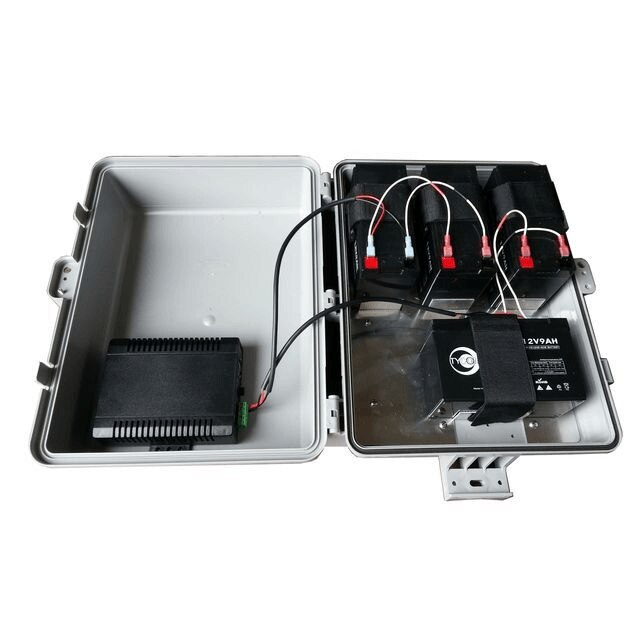

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the PoE power supply
Multiple configurations are available for 12V or 24V systems with various battery storage capacities. A typical 250mW wireless access point with average power consumption of 3.5W will run 15 hours on a 9Ah AGM battery. You can expect the same load will run 23hrs on a Lithium battery.
Features:
- Uninterruptible Power System

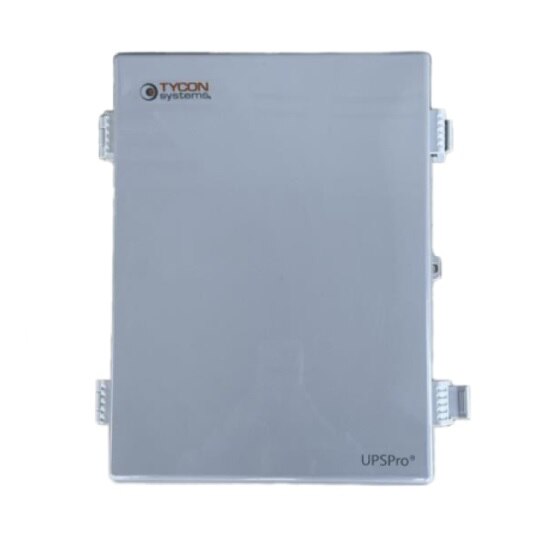

- Weatherproof, UV resistant, outdoor enclosures
- Powered over Outdoor CAT5/6 cable using Passive POE and/or Solar
- Generous interior space for customer electronics

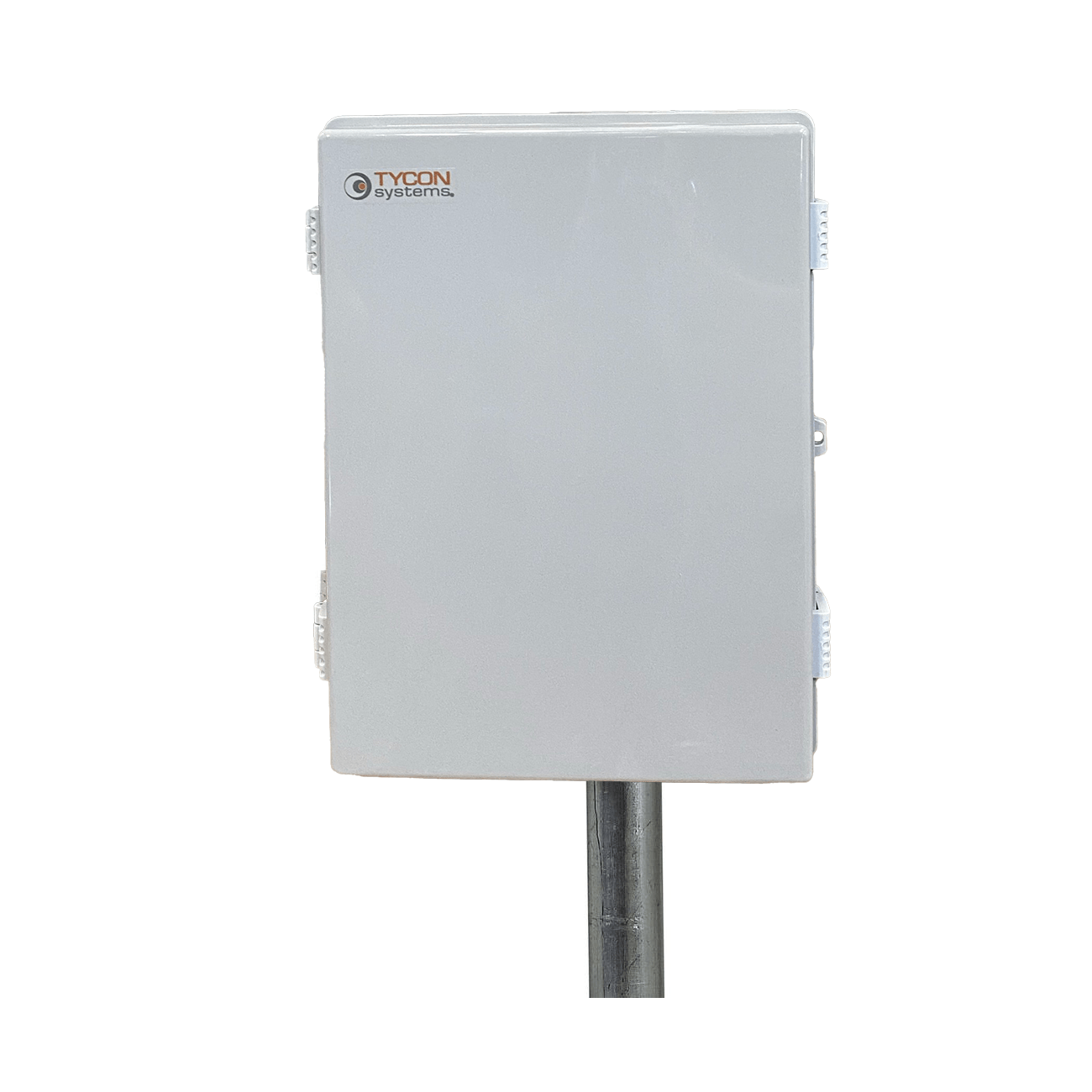

- Wall or Pole Mounting
- Isolates Customer Equipment from Power Line Surges

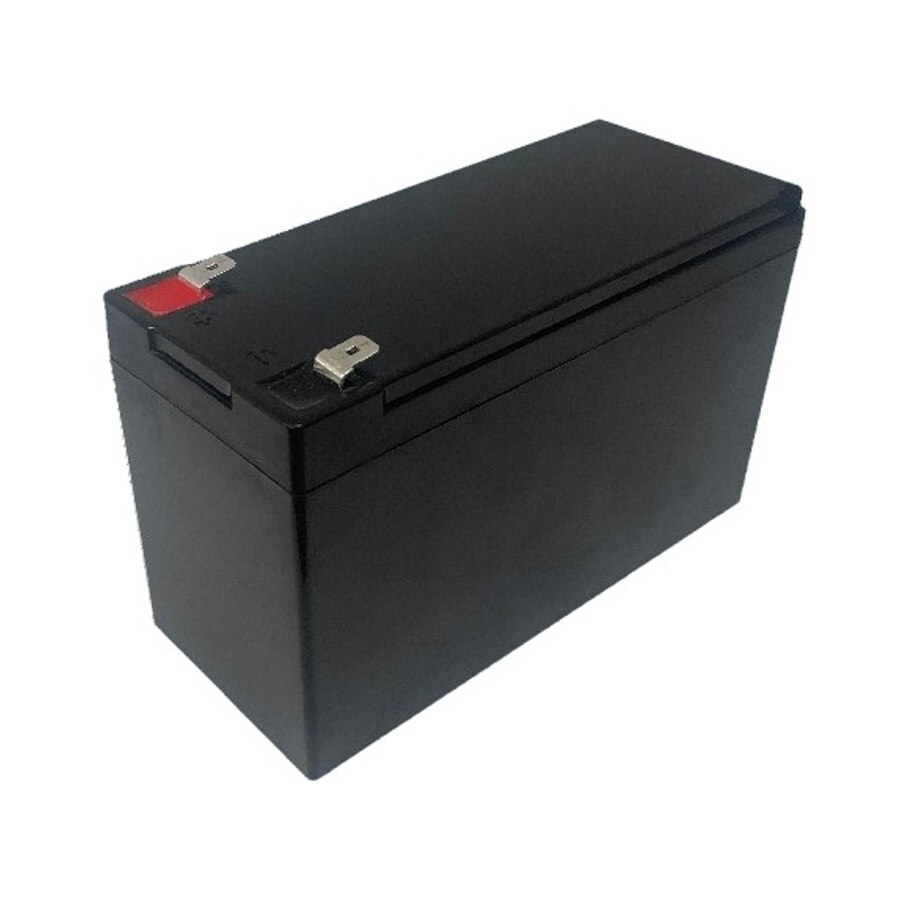

- High Quality AGM VR Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Specifications
Specifications UPS-PL2424-40L
| POE Output Voltages Available (DC) | 24V |
| Available Capacities (Amp Hours) | 9Ah, 18Ah, 36Ah, 40Ah |
| Total Output Power | 60W |
| Maximum POE Input Voltage | 57V |
| Battery Voltage (DC) | 24V |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) or LiFePO4 Lithium |
| Battery Life | 5 Years |
| Controller Type | Dual Input Solar/POE, PWM, 24V 10A Max Solar Panel Size 200W |
| Overcharge Protection | 28.6V |
| Over-discharge protection | 22.0V |
| Over-discharge recovery voltage | 24.0V |
| Controller Self Consumption | <0.5W |
| Charging POE Power Supply | 120/220VAC In ; 36-48VDC 90W Min Out |
| Enclosure Type | Polycarbonate |
| Enclosure External Size | SM: 12 x 8.5 x 7" (305 x 216 x 178mm) LG: 15.7 x 12.7 x 6.7" (400 x 323 x 170mm) |
| Enclosure Internal Size | SM: 11 x 7 x 6" (279 x 178 x 152mm) LG: 15 x 11 x 6.5" (381 x 279 x 165mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (without batteries) | SM: 5lb (2.2kg) LG: 7lb (3kg) |
| Battery Weight (each) | Lead Acid: 5.5lb (2.5kg), Lithium: 2.2lb (1kg) |
| Warranty | 3 Years |
