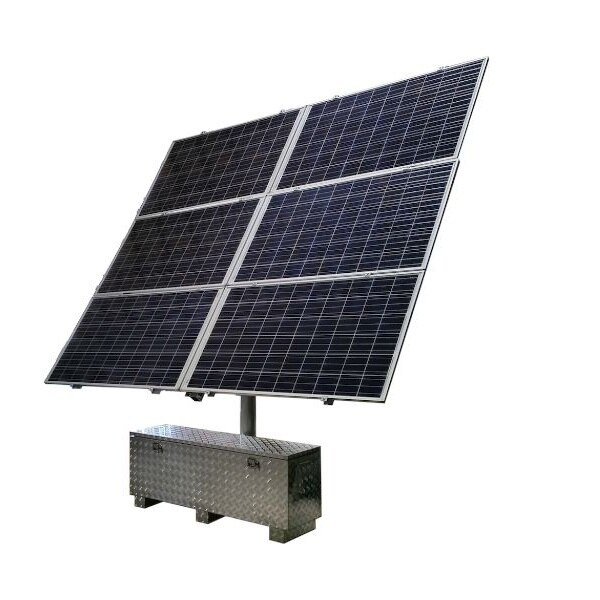

Tycon Systems RemotePro 360W Continuous Remote Power System, 2160W Solar Panel w/ Mount
- SKU: RPAL48M-14-2160
Product Information
Tycon Systems RPAL48M-14-2160
RemotePro 360W Continuous Remote Power System, 2160W Solar Panel w/ Mount, Aluminum Enclosure, 1440Ah Battery Bank, 60A MPPT controller, 30A load output
The Tycon Solar RemotePro 2160W RPAL48M-14-2160 outdoor power system is designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.
The system is available with MPPT temperature compensated solar charge controllers with an RS485 interface for remote monitoring with a Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter. The solar controller turns off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers.
The outdoor enclosure is diamond plate aluminum ground mounted type. It is hinged and gasket sealed with locking closures. The enclosure has four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.
The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance.
Batteries are maintenance free, Non-Spillable, Valve Regulated, Sealed Pure Lead Carbon Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
The solar mount includes the concrete anchors that are necessary for mounting. Tilt adjustment range is 10-65° and can be adjusted by one person.
Features:
- Complete 2.2KW Remote Power Solutions for Off-Grid Operation.
- Supports up to 315W continuous power with 6hrs peak sun.
- Weatherproof Outdoor Enclosures with up to 1440Ah Battery
- Expandable Ground Mounted Solar Mount
- High Performance Sealed Lead Acid AGM Batteries
- MPPT Solar Charge Controllers with RS485 Interface
- Thermostatically Controlled Ventilation
Applications:
- Wireless Base Stations
- Remote Lighting
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Off-Grid Power
- Backup Power
Specifications
Specifications RPAL48M-14-2160
| Battery Type | Maintenance Free Non-Spillable Valve Regulated Sealed Pue Lead Carbon AGM |
| Battery Life | 5+ Years |
| Controller Type | 30A Wire Terminal |
| Controller Self Consumption | <1W |
| Enclosure Type | ENC-AL-65x28x18 Ground Mount, Diamond Plate Aluminum |
| Enclosure Size | 65 x 28 x 18” (1651 x 711 x 457mm) |
| Internal Mount Features | DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back |
| Solar Panel Dims (L x W x H) | 1440W Solar Array 78 x 154 x 1.6” (1980 x 3912 x 40mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (no batteries) | 588 lb (267 kg) 6 Panel System |
| Battery Weight | 127 lb (57.6 kg) (Each 180Ah Battery) |
| Wind Speed Rating | 90MPH |
| Warranty | 3 Years |
