Tycon Systems RemotePro 75W, 200Ah Lithium Batt, 340W Sol, 12/48V MPPT Outdoor Remote Power Systems
- SKU: RPSTL12/48M-200L-340
Product Information
Tycon Systems RPSTL12/48M-200L-340
RemotePro 75W, 200Ah Lithium Batt, 340W Sol, 12/48V MPPT Outdoor Remote Power Systems
The RemotePro® 340W Lithium Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates. The enclosures can be mounted to a wall or pole with the included mounting bracket system.
The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system.

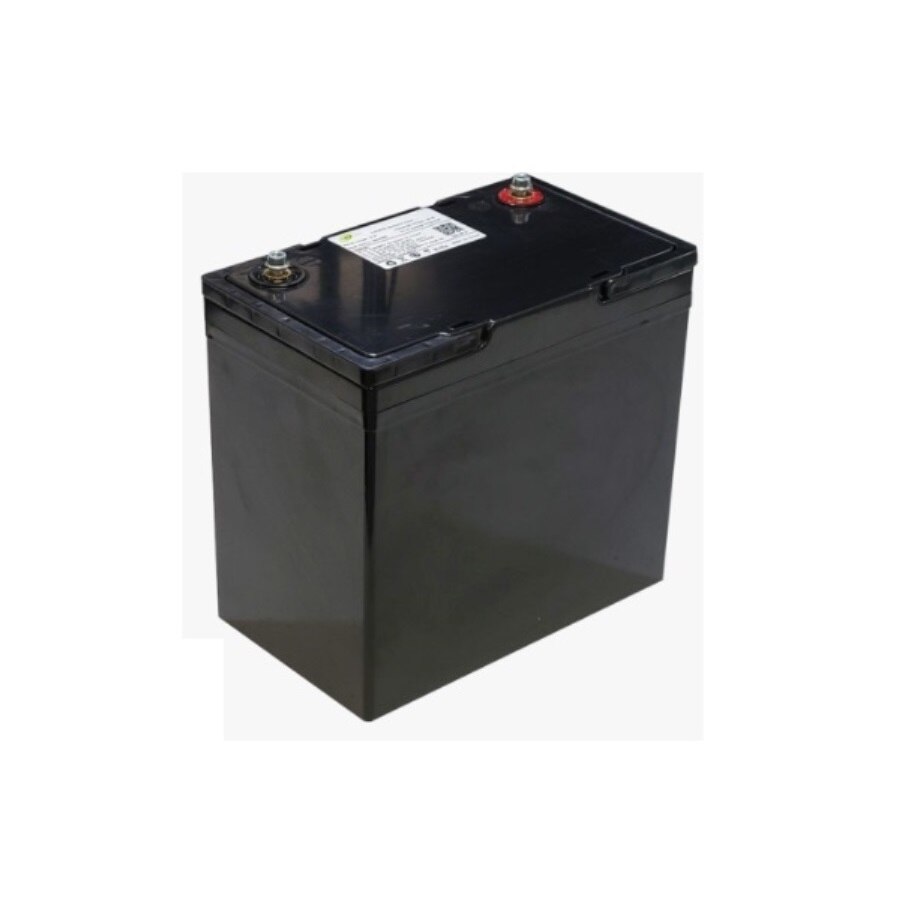

Batteries are an LFP (LiFePO4) Lithium type which have superb 80% deep discharge and 4000+ cycle life performance. The batteries have an embedded BMS (Battery Management System) to enable 10+ year battery life. Systems can be configured as 12V or 24V battery voltage and also 48V.

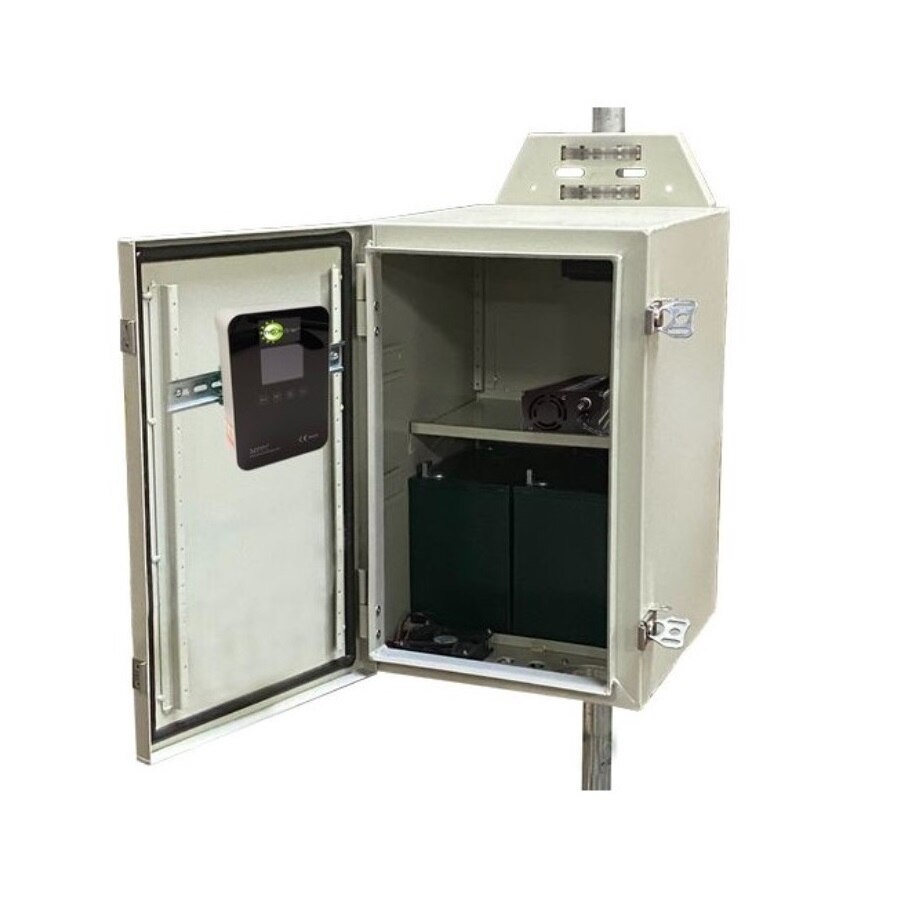

The outdoor enclosures are powder coated steel or aluminum. They are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
Features:
- Complete 340W Remote Power Solution for Off-Grid Operation
- 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries
- Weatherproof Outdoor Enclosures accommodate up to 400Ah Battery
- Enclosures can be Wall or Pole Mounted (pole not included)

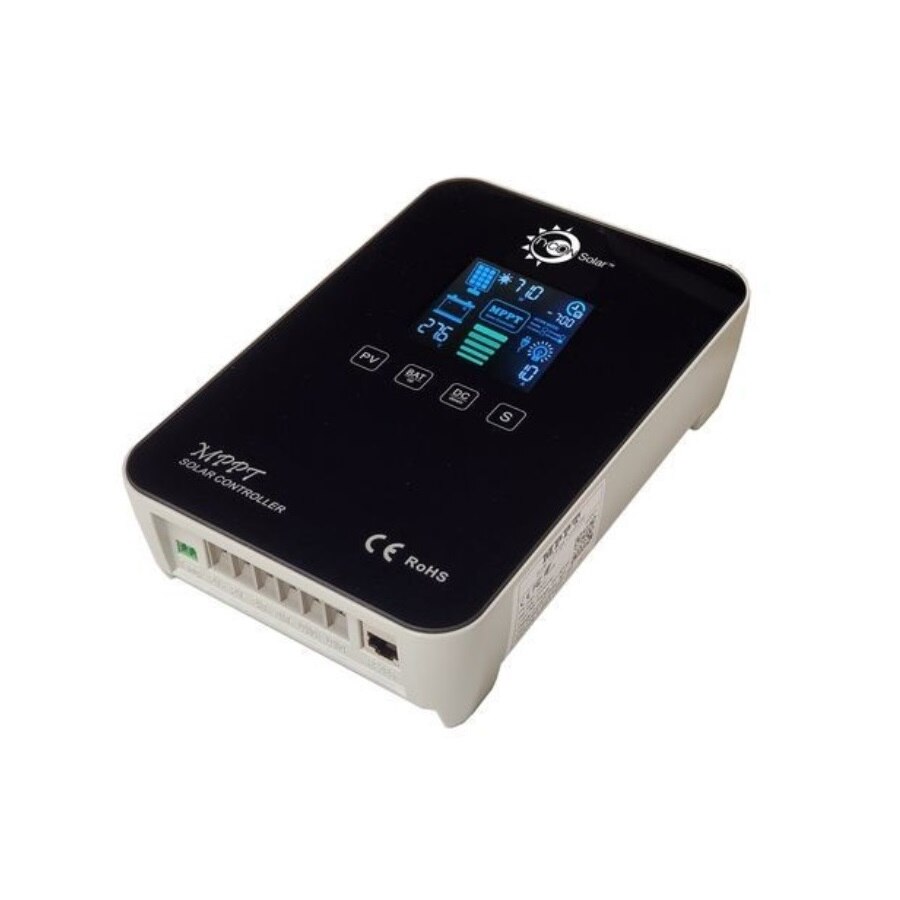

- MPPT Solar Charge Controllers with RS485 Interface
- Thermostatically Controlled Ventilation
Applications:
- Wireless Base Stations
- Remote Lighting
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Off-Grid Power
- Backup Power
Specifications
Specifications RPSTL12/48M-200L-340
| Weight | 225.5 lbs |
| Dimensions | 48 × 40 × 35 in |
| Battery Voltage | 24/48 VDC |
| BATTERY Capacity | 200Ah |
| Solar Capacity | 340W |
| Enclouser Type | Pole Mount Steel |
| Controller Type | MPPT (Maximum Power Point Tracking) |
| Cont. Watts W/6 HRS Peak Sun | 50W |
