Tycon Solar 12V 180A Pure Lead Carbon AGM Battery
- SKU: TPBAT12-180
$1,308.15 $1,364.78
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information

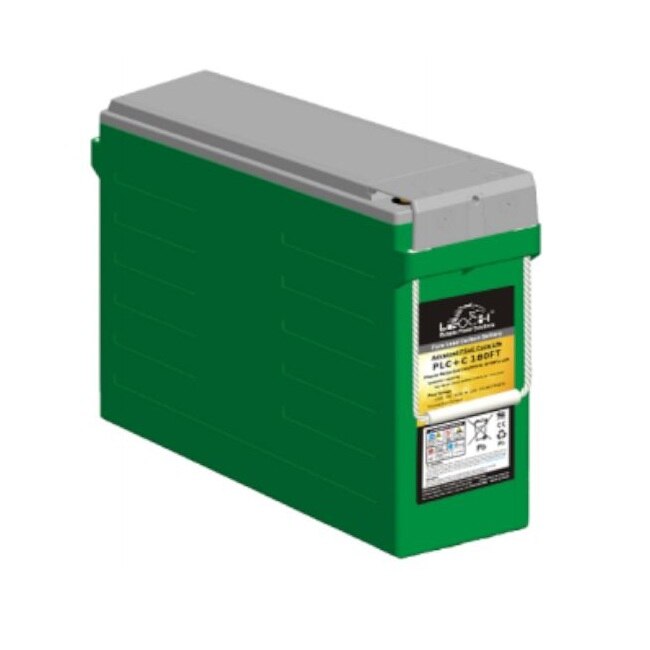

Tycon Systems TPBAT12-180
12V 180A Pure Lead Carbon AGM Battery
The Tycon Solar TPBAT12-180 high rate valve regulated pure lead carbon sealed lead acid (VRLA) AGM battery has been developed for long term operation in harsh environments. They have a very high deep discharge cycle life and impressive 8 year float life. They are designed to operate over a wide temperature range such as those experienced in outdoor equipment applications. The batteries can be installed in any position without affecting their performance or reliability.
Features:
- Sealed and Maintenance Free Pure Lead Carbon
- Safety Valve for Ultimate Safety; Prevents Overpressure
- Exceptional Deep Discharge Recovery Performance
- Low Self Discharge Characteristics
- Highly Resistant to Vibration and Shock
Applications:
- Remote Equipment Power
- Surveillance Cameras
- Wireless Base Stations
- Medical Equipment
- Remote Sensors
- Backup Power Systems
Specifications
Specifications TPBAT12-180
| Voltage | 12V |
| Capacity (amp hours; 20hr) | 180 |
| Typical Float Life | 8 Years |
| 30% Discharge Cycle Life | 5000 Cycles |
| Type / Technology | •Valve Regulated Pure Lead Carbon Sealed •Lead Acid / Absorbent Glass Mat (AGM) |
| Self-Discharge (25°C) | <5% per month |
| Charge Voltage (-3mV / °C) | 14.1 to14.4V ; Max Current 180A |
| Float Voltage (-2mV / °C) | 13.5 to 13.8V |
| Internal Resistance | 3.5mΩ |
| Operating Temperature | -40C (-40F) to +55C (131F) |
| Housing | ABS (UL94V-0) |
| Certifications ISO 9001 | 2000, ISO 14001, OHSAS 18001, IATF16949 |
| Compliances | IEC 60896 |
| Warranty | 2 Years |
| Weight | 57.6kg (127lb) |
| Crate Outside Dimensions | 559 x 125 x 320 (22 x 4.92 x 12.6”) |
