Ubiquiti Networks Enterprise Campus 24 PoE
- SKU: ECS-24-PoE
$3,508.38
- Manufacturer: Ubiquiti Networks ECS-24-PoE
- Installation Guide: Download
Product Information

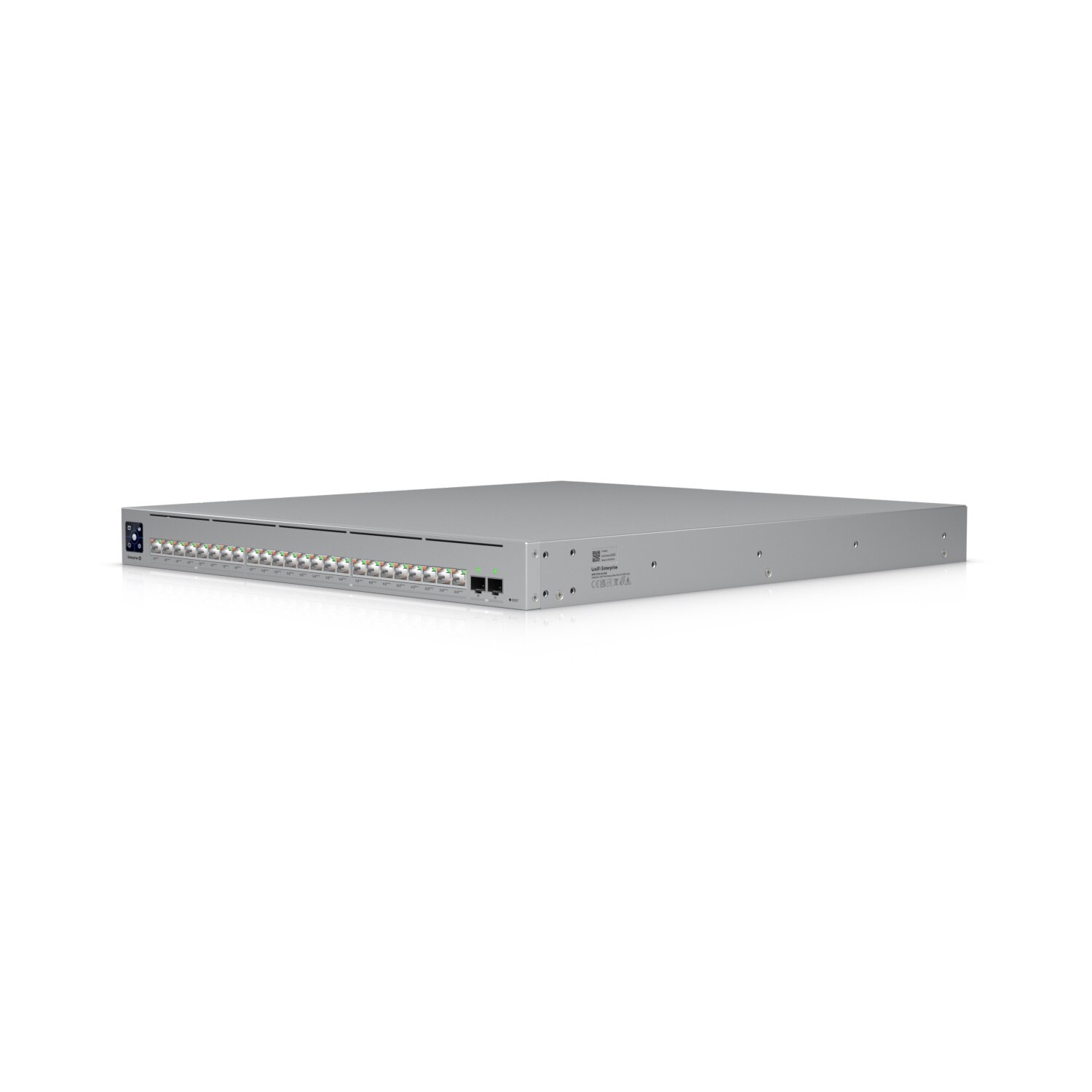

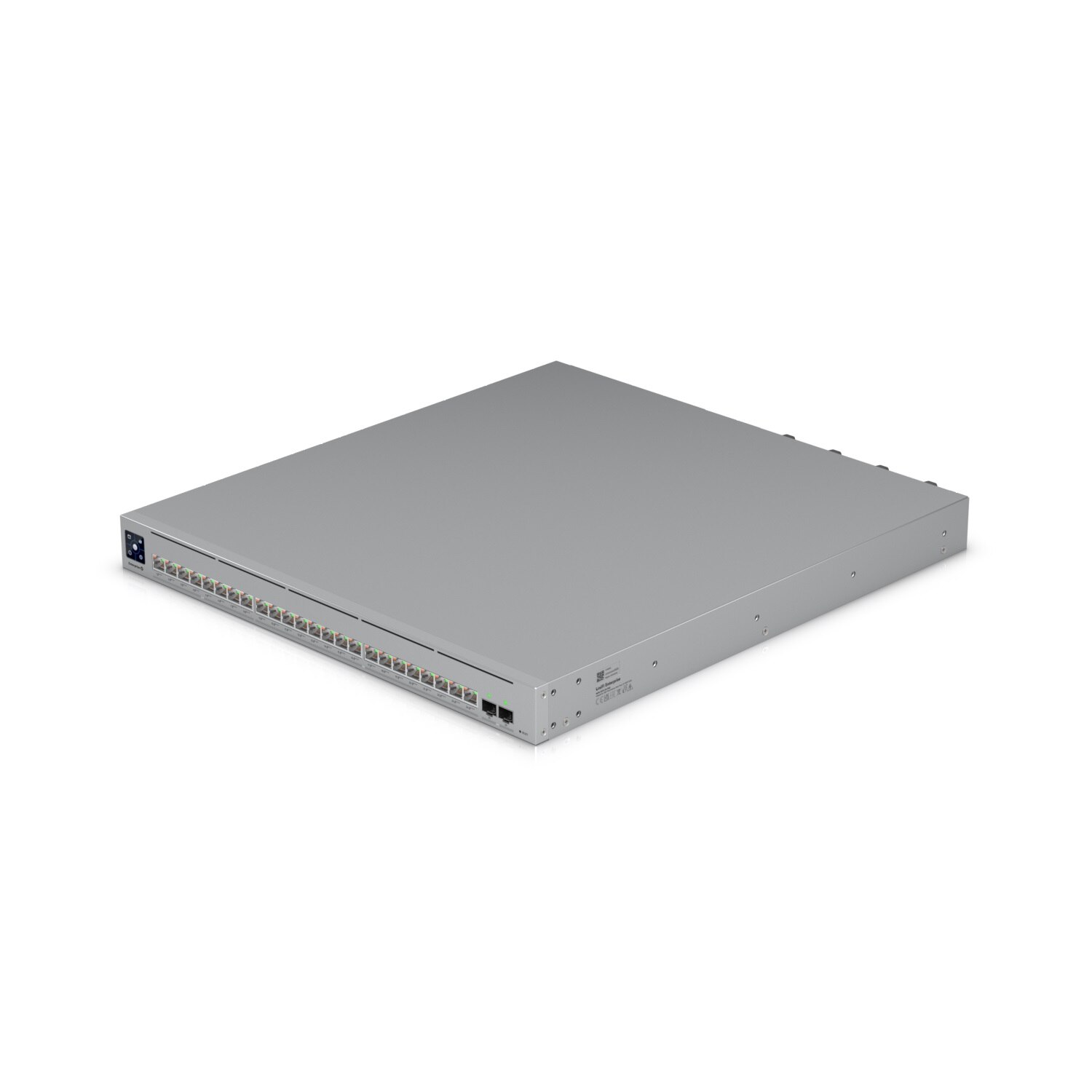

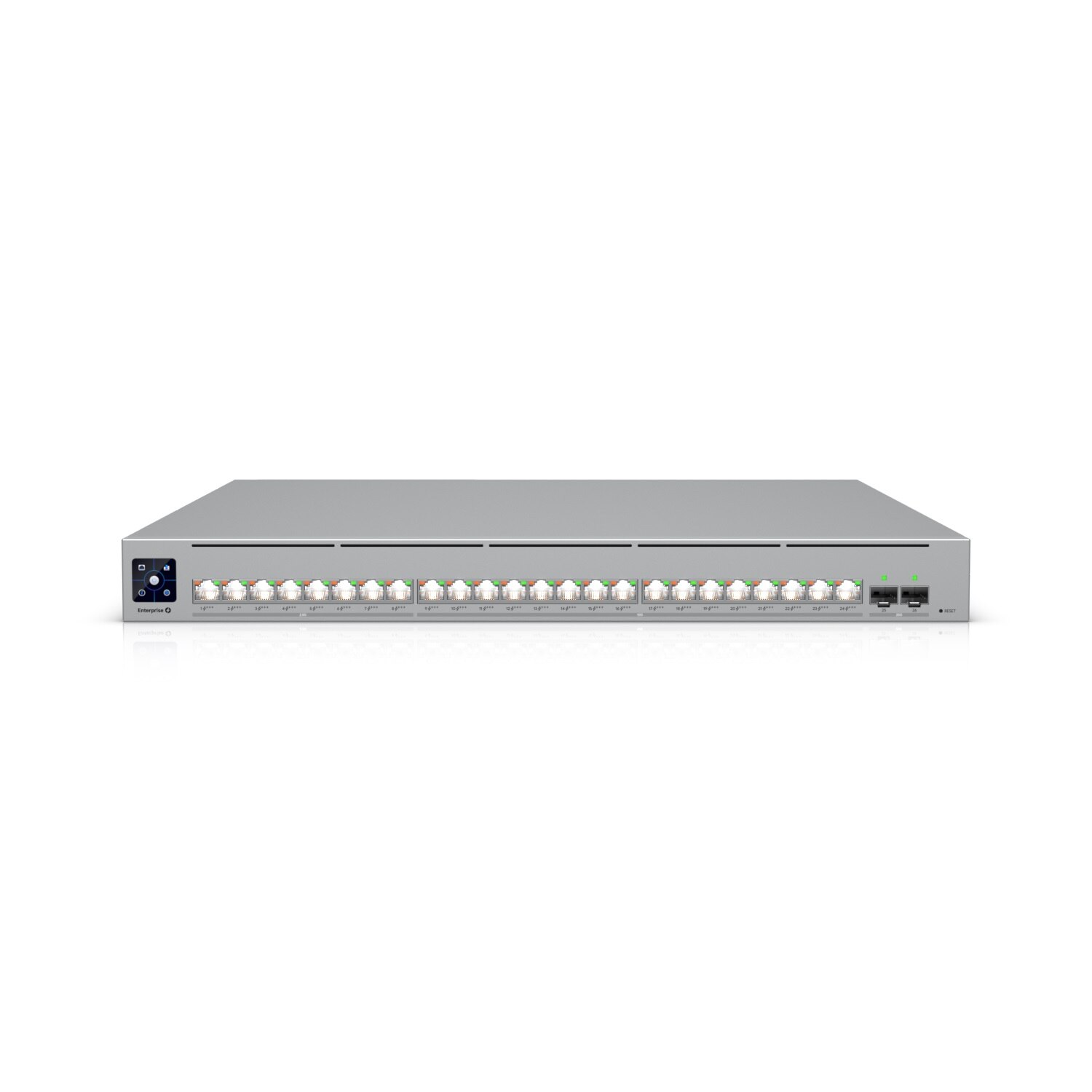

Ubiquiti Networks ECS-24-PoE
Enterprise Campus 24 PoE

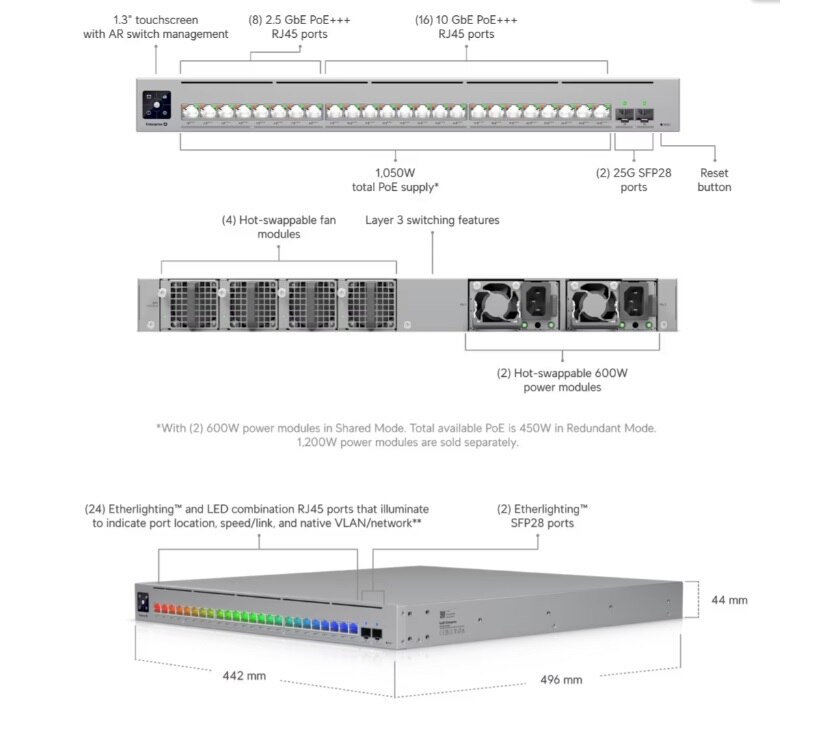

Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Features:

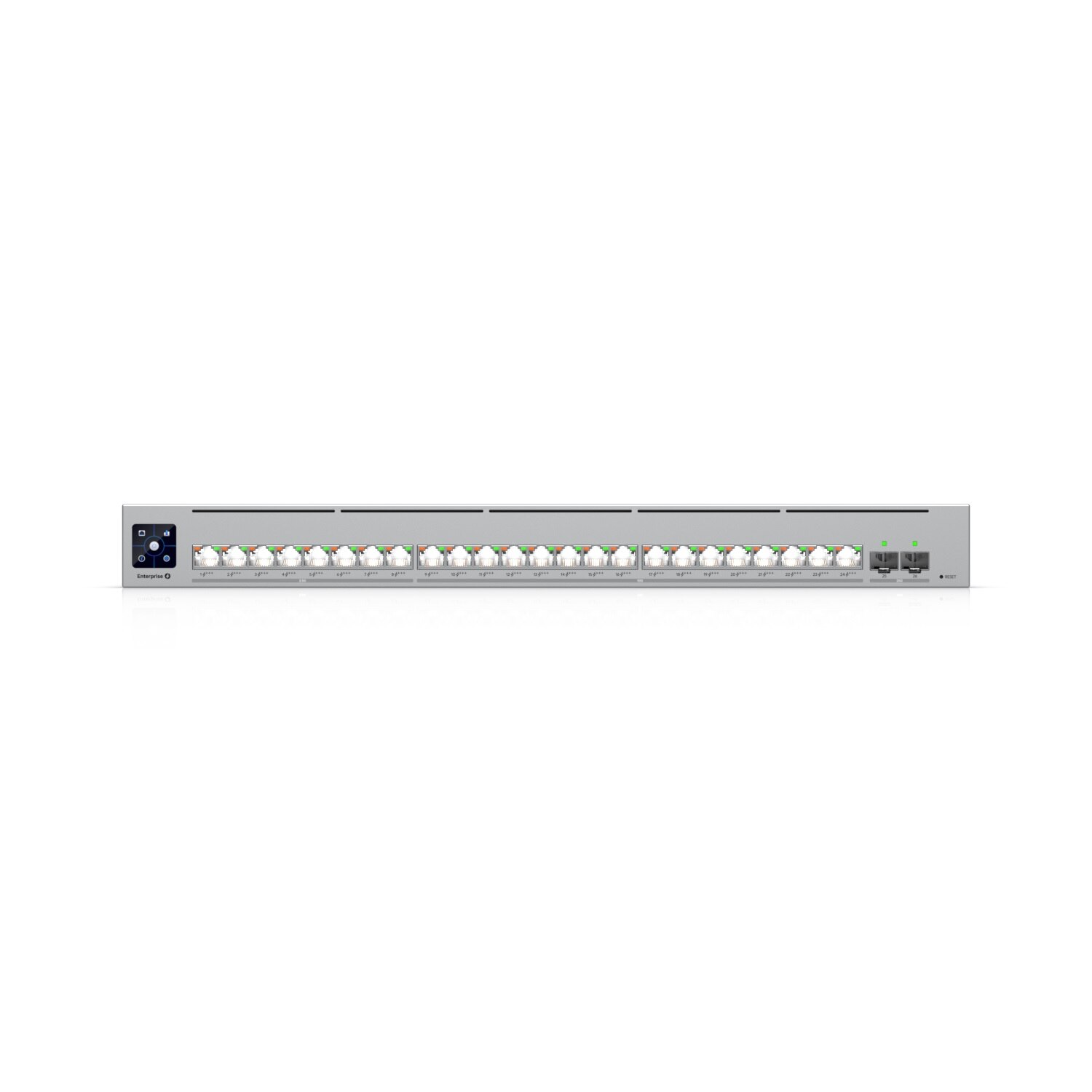

- (16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)
- (2) 25G SFP28 ports
- Up to 1,050W PoE availability*

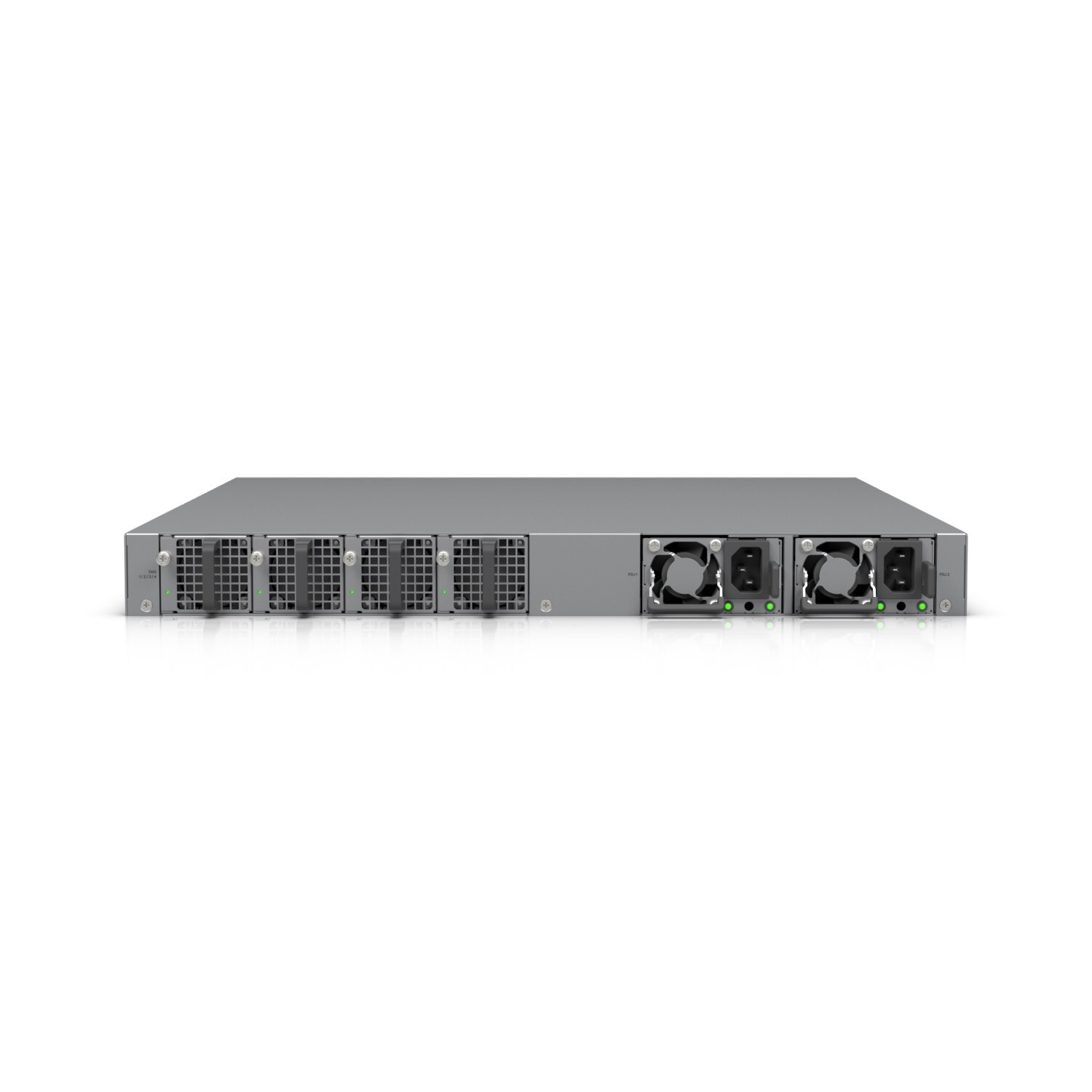

- (2) included hot-swappable power modules
- (4) included hot-swappable fan modules with one backup
Specifications
Specifications ECS-24-PoE
| Dimensions | 442 x 496 x 44 mm (17.4 x 19.5 x 1.7") |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb) |
| Enclosure material | SGCC steel |

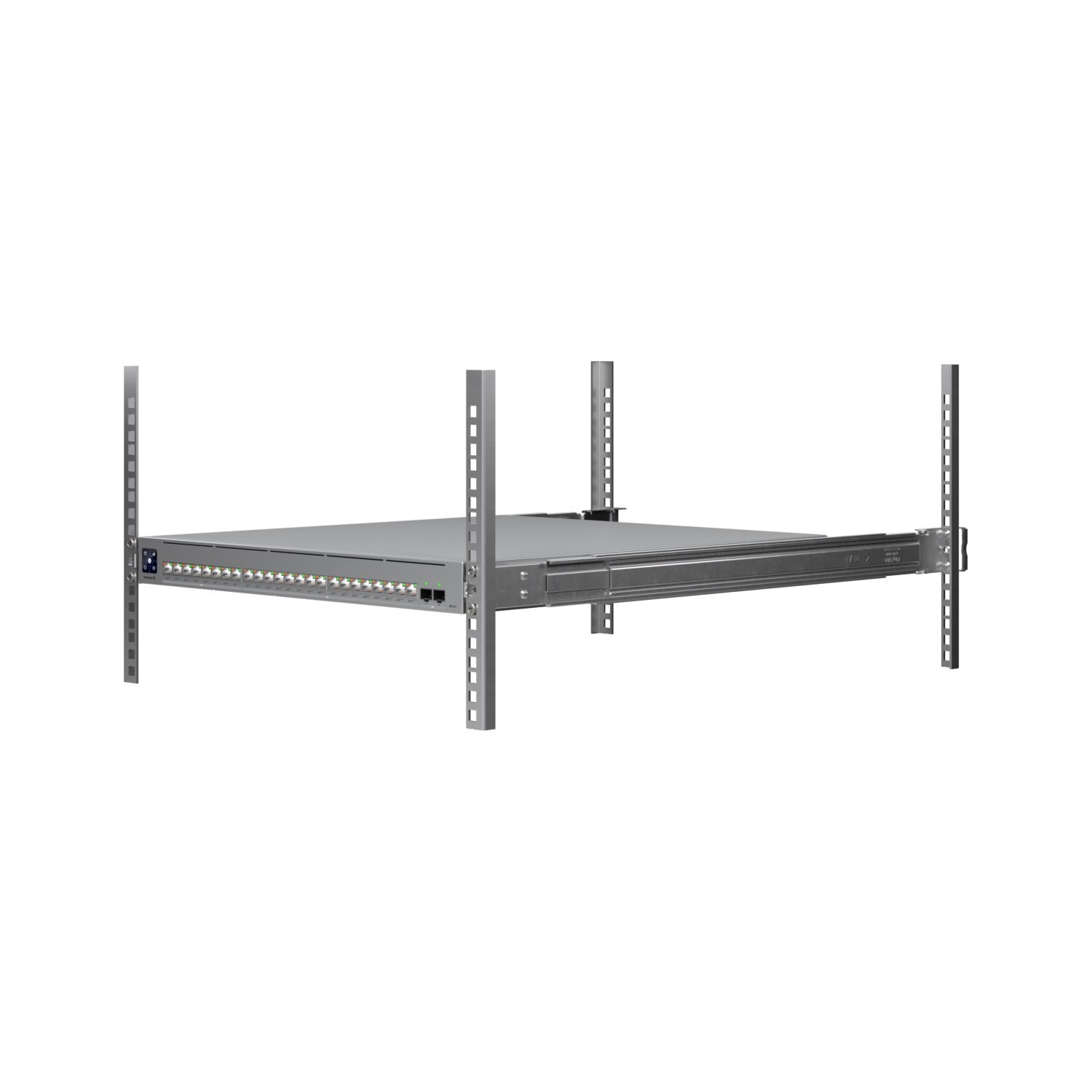

| Slide rails support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (16) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports (8) 2.5/1 GbE, 100/10 MbE RJ45 ports (2) 25/10/1G SFP28 ports |
| PoE interface | (24) 90W PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)* *802.3bt Type 4, Class 8 |
| Total non-blocking throughput | 230 Gbps |
| Switching capacity | 460 Gbps |
| Forwarding rate | 342.24 Mpps |
| Power method | (2) Universal input, 100—240V AC, 50/60 Hz |
| Power supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported voltage range | 100—240V AC |
| Max. power consumption | Excluding PoE output: 150W Including PoE output: 1,200W |
| Total available PoE | 100-240V AC Shared Mode: 1,050W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules* |
| Max. PoE wattage per port by PSE | PoE+++: 90W |
| Voltage range PoE mode | 50—57V |
| Fan method | (4) hot-swappable fan modules* *Fan modules operate with 3 + 1 redundancy. |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |

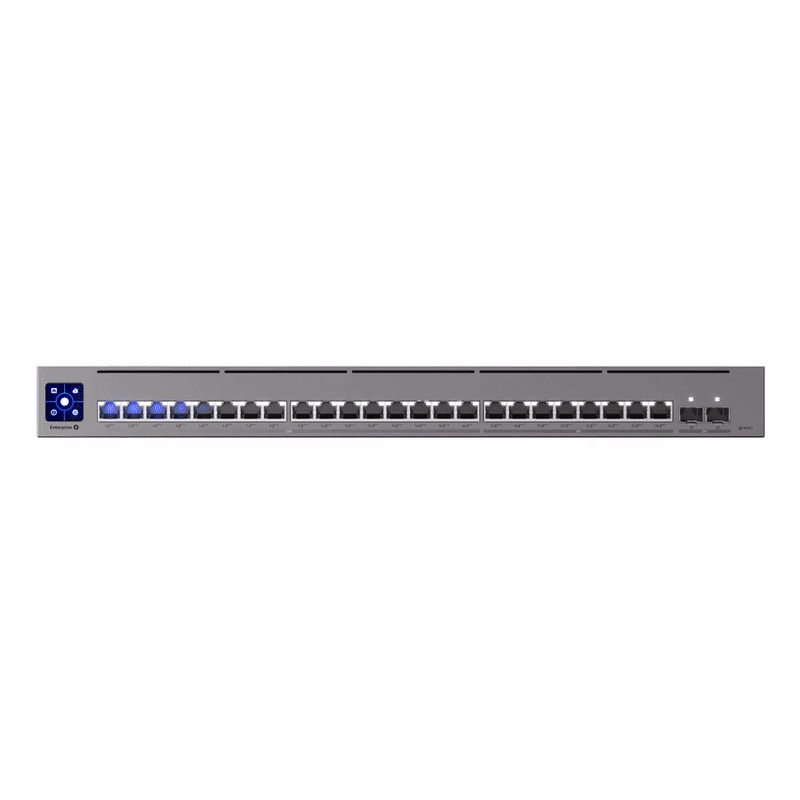

| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP28 | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
