Ubiquiti Enterprise Network Video Recorder
- SKU: ENVR
$2,788.42
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

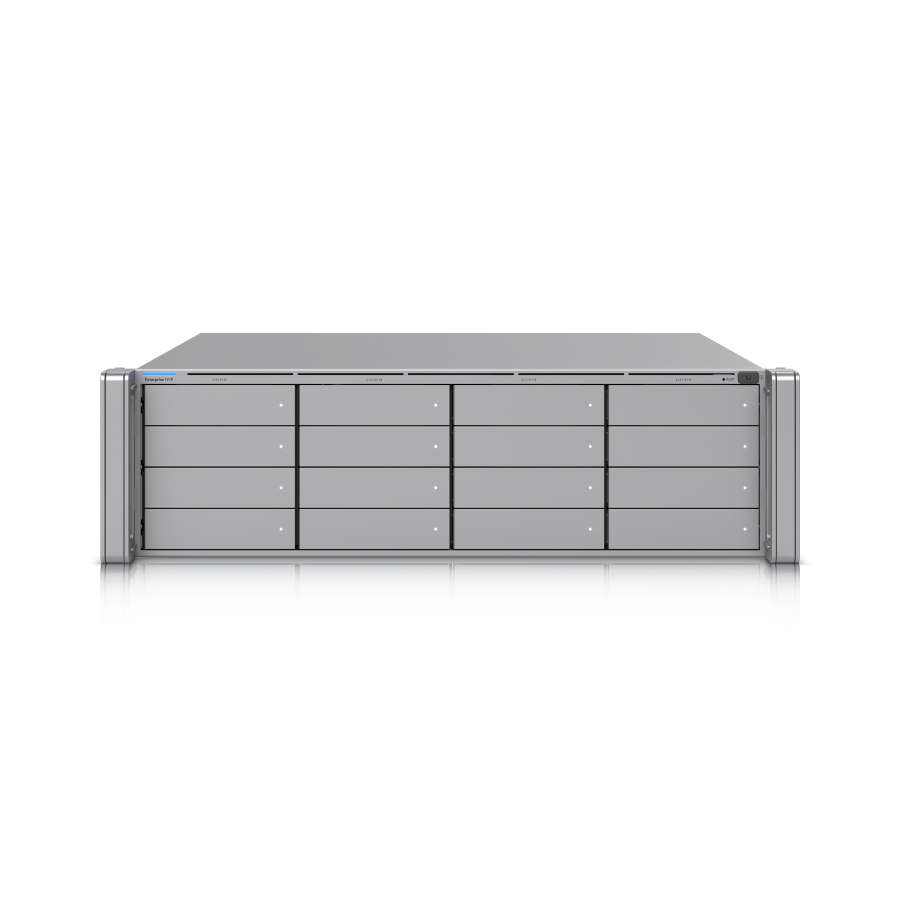

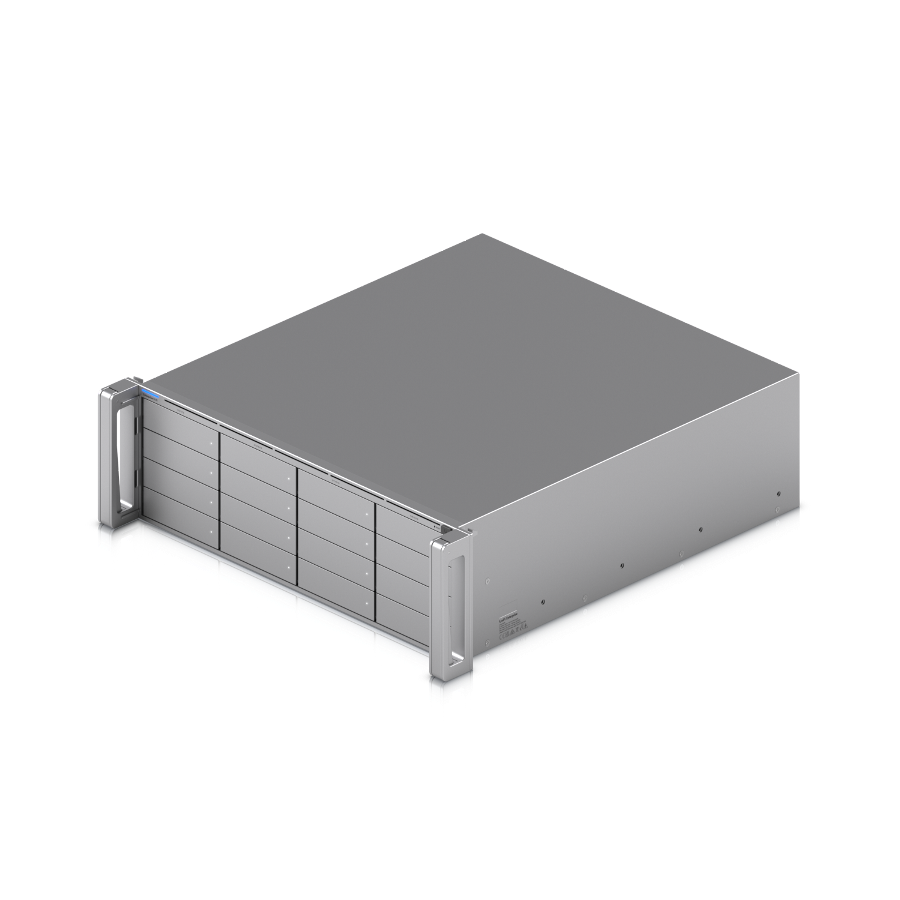

Ubiquiti Networks ENVR
Enterprise Network Video Recorder
3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.

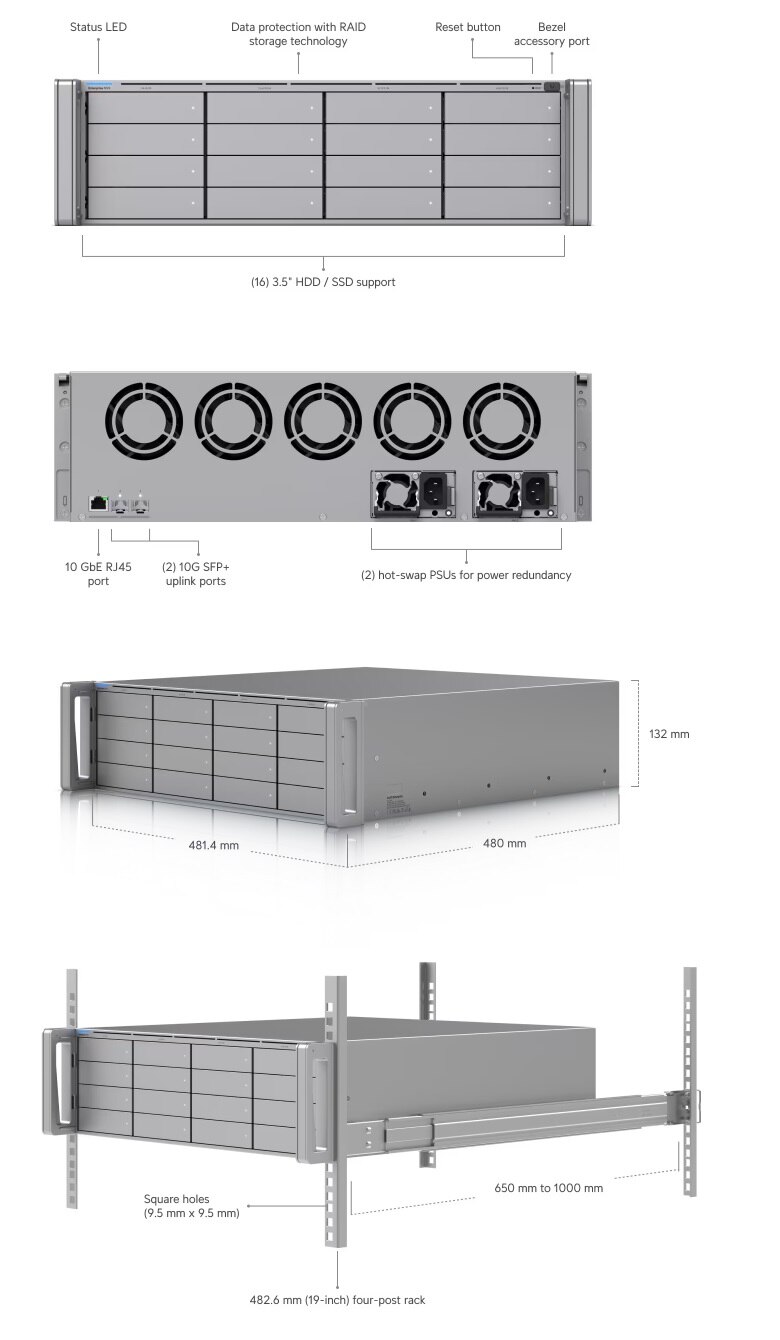

Features:

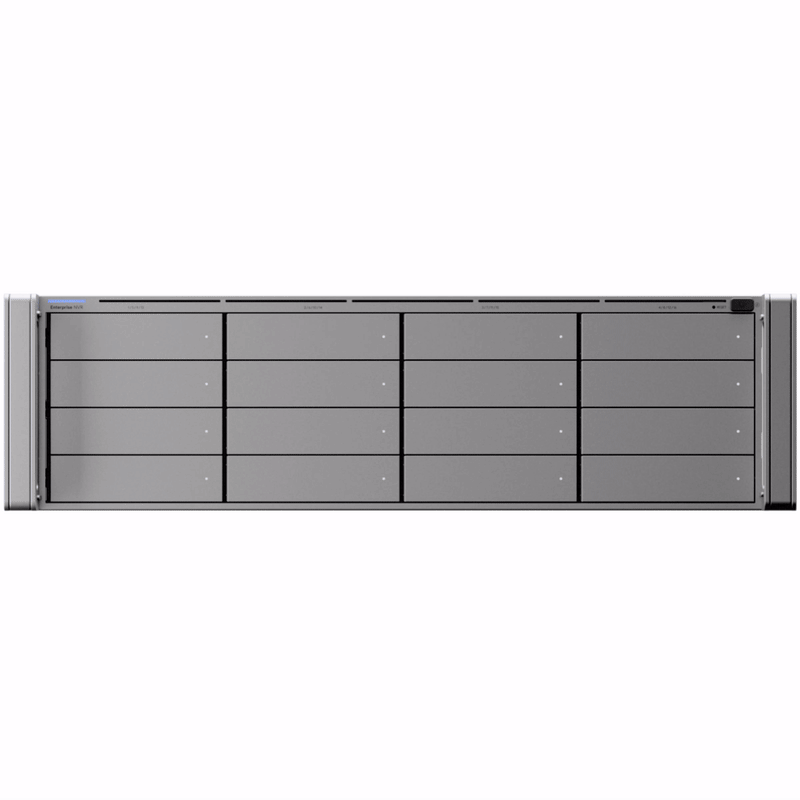

- (16) 3.5" HDD / SSD support

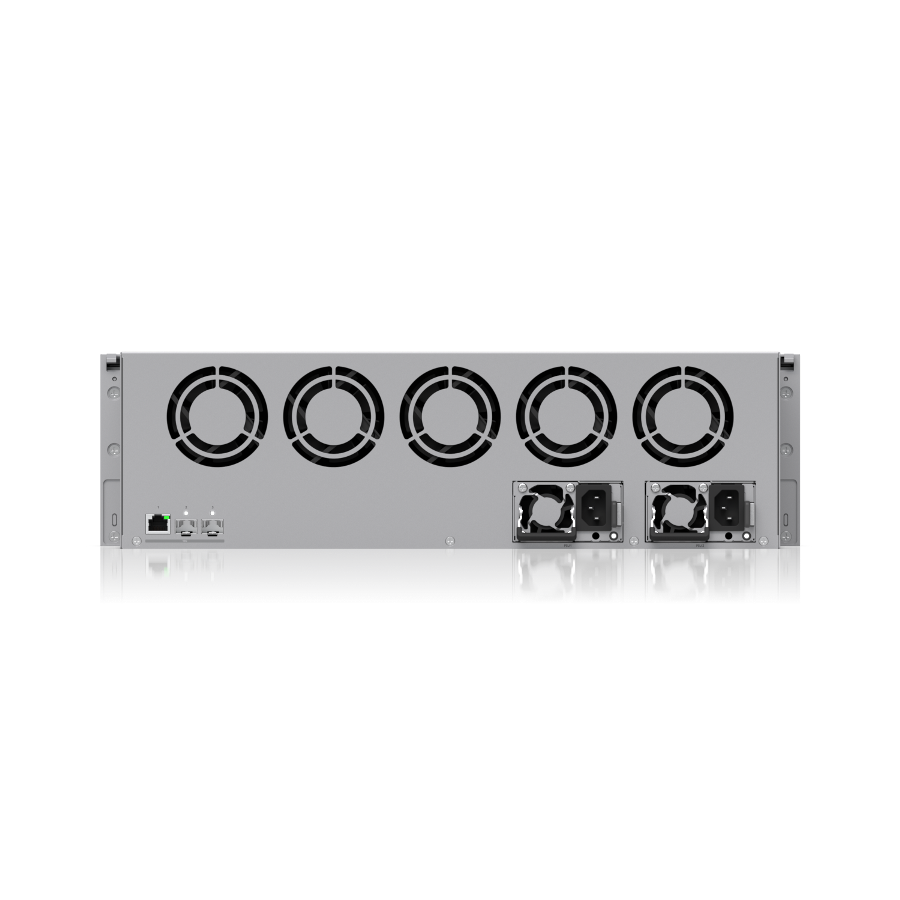

- (2) 10G SFP+ uplinks and (1) 10 GbE RJ45 port
- Data protection with RAID storage technology
- (2) included hot-swap PSUs for power redundancy
Specifications
Specifications ENVR
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| Weight | 16.6 kg (36.6 lb) |
| Enclosure material | SGCC steel |
| Mount material | Aluminum |

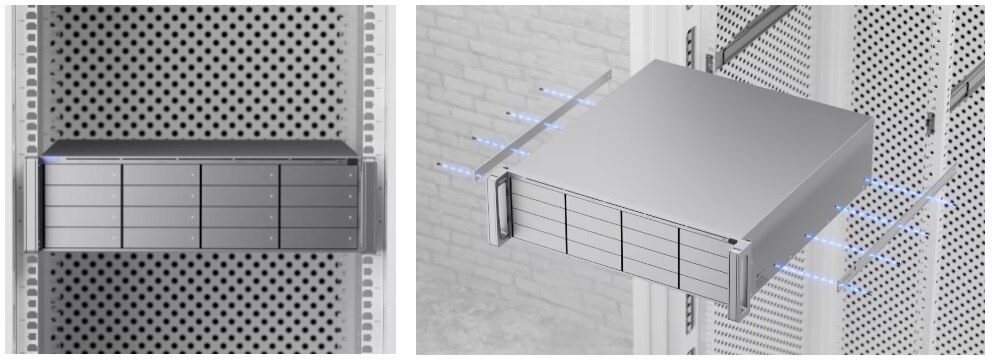

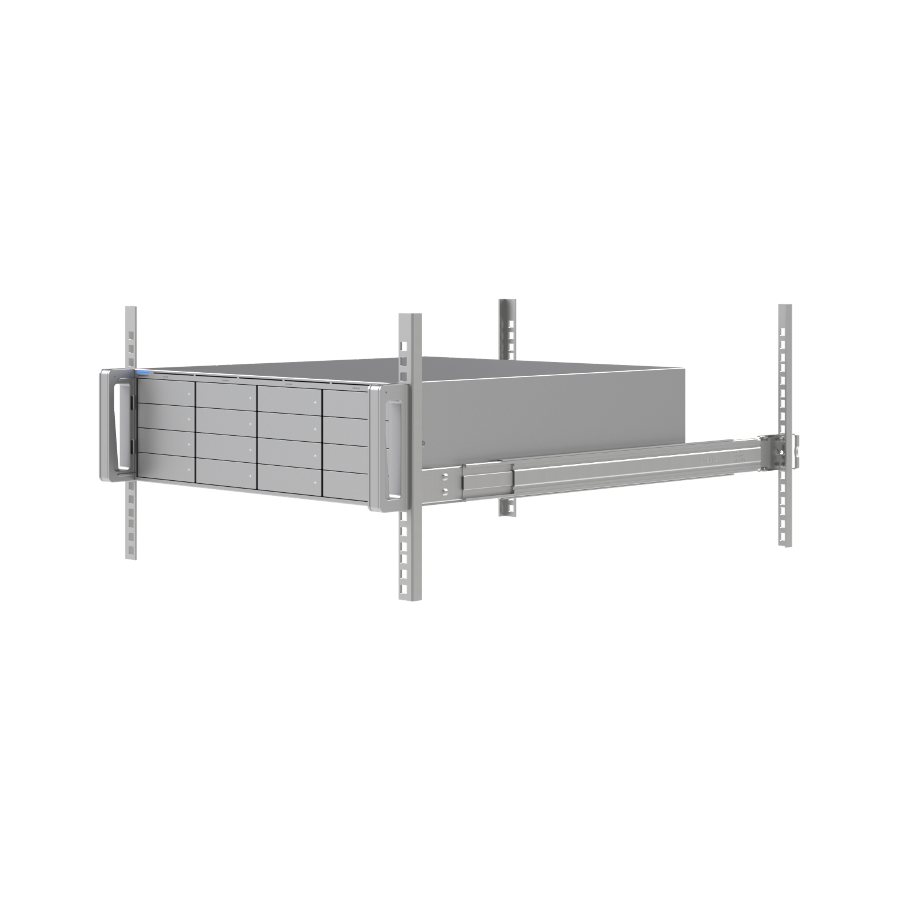

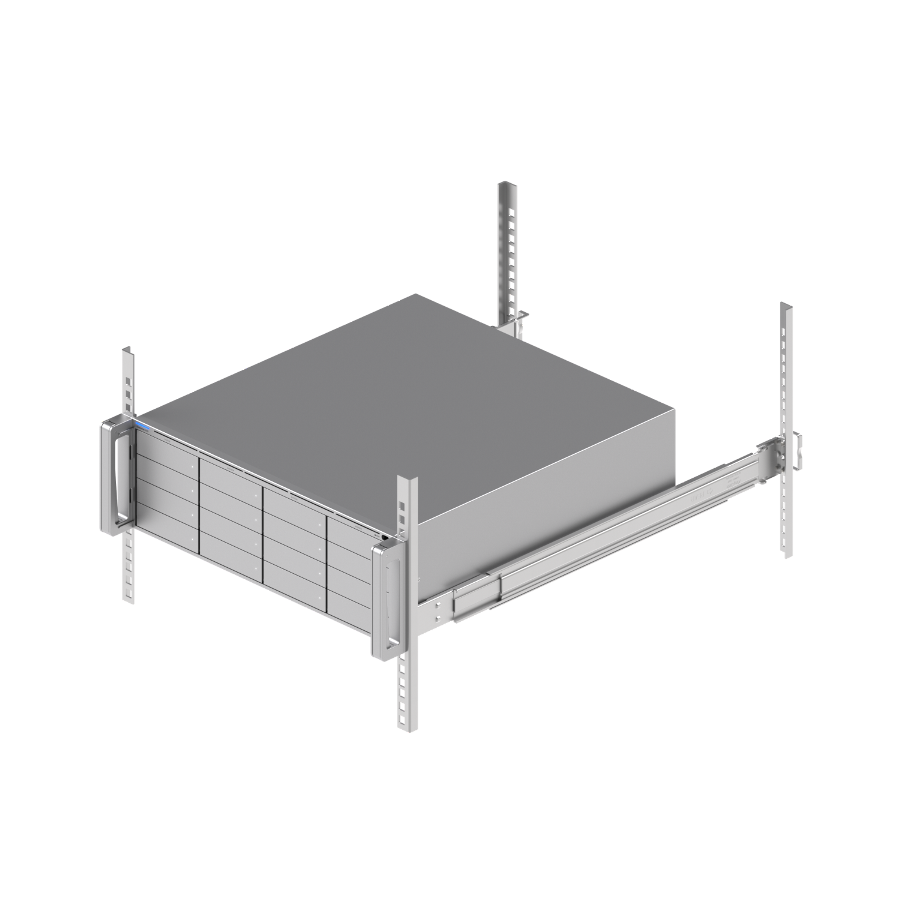

| Slide rails support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1000 mm (25.6–39.4”) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (1) 1/2.5/5/10 GbE RJ45 port (2) 1/10 GbE SFP+ ports |
| Power method | (2) AC input, 100-240V, 7A Max., 50/60Hz (redundant, hot-swappable) |
| Power supply | Hot-swappable 550W CRPS |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 410W |
| Max. power budget for Drives | 310W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| Capacity | |
| HD cameras | 210 |
| 2K cameras | 140 |
| 4K cameras | 70 |
| LEDs | |
| System | (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Ethernet | Green: link/activity |
| SFP+ | Green: link/activity |
| HDD | White: disk detected Amber: disk error |
