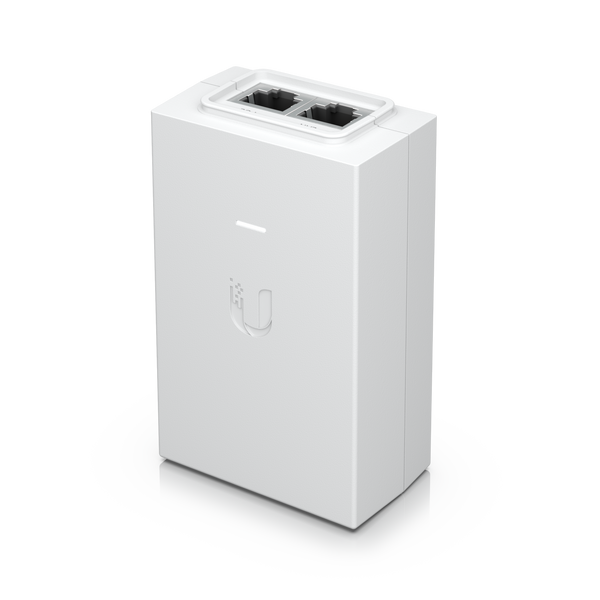

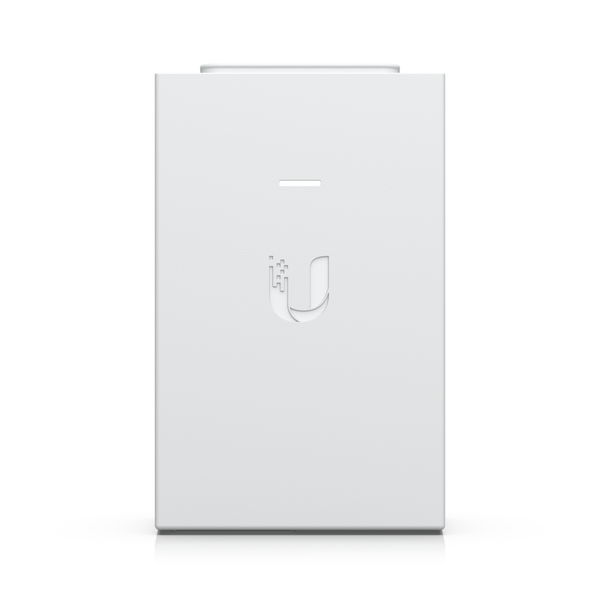

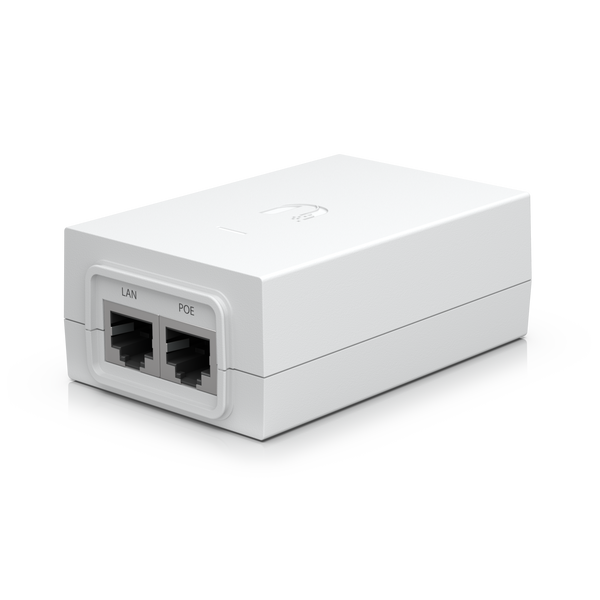

Ubiquiti PoE Injector, 24VDC, 30W, Gigabit, White
- SKU: POE-24-30W-G-WH
$22.32
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks POE-24-30W-G-WH
Ubiquiti PoE Injector, 24VDC, 30W, Gigabit, White
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Features:
- 24 VDC at 1.25A Output Voltage
- 30W Output Power
- Powers Most Ubiquiti PoE Devices
- 100 to 240 AC at 50/60 Hz Input Voltage
- Earth Grounding & Surge Protection
- Peak Pulse Current & Clamping Protection
- Protection Against ESD Events
Specifications
Specifications POE-24-30W-G-WH
| Dimensions | 94 × 60 × 33 mm (3.70 × 2.36 × 1.30") |
| Weight | 156 g (5.5 oz) 0.34 lbs |
| Output Voltage | 24VDC @ 1.25A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 83+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | – |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |

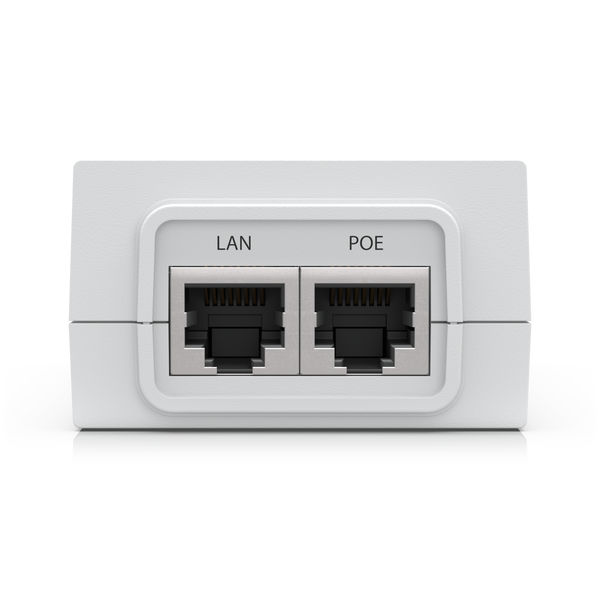

| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
