Ubiquiti UniFi Reader Flex
- SKU: Reader Flex
$279.38
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

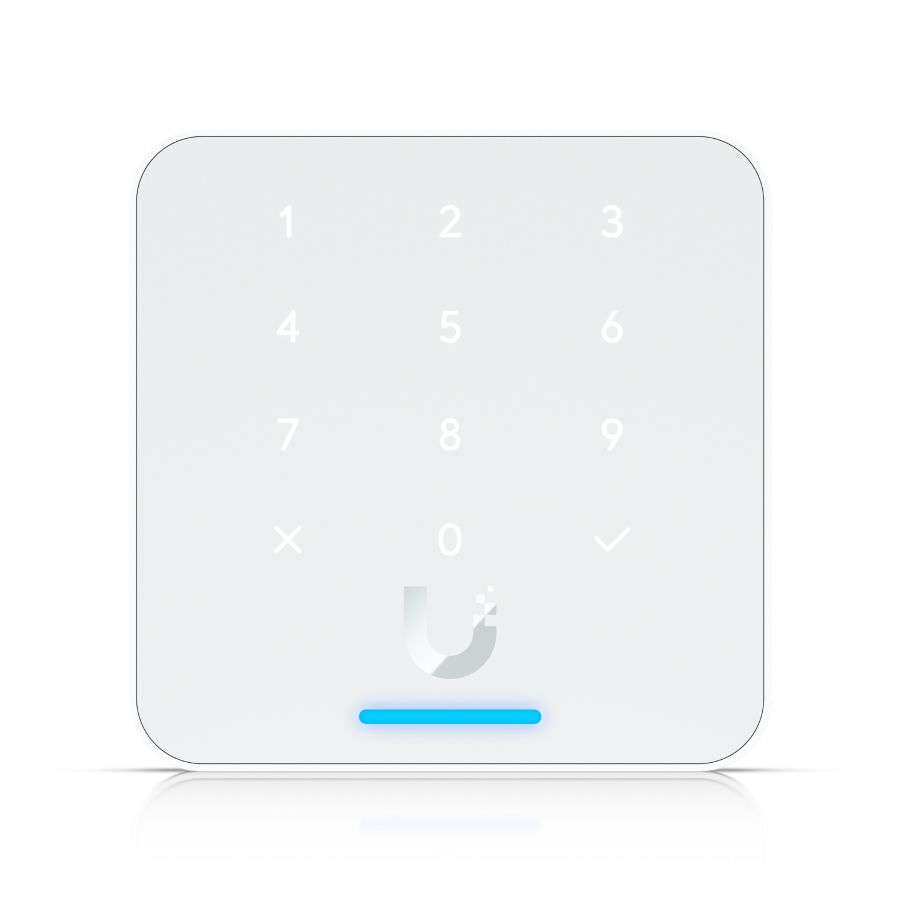

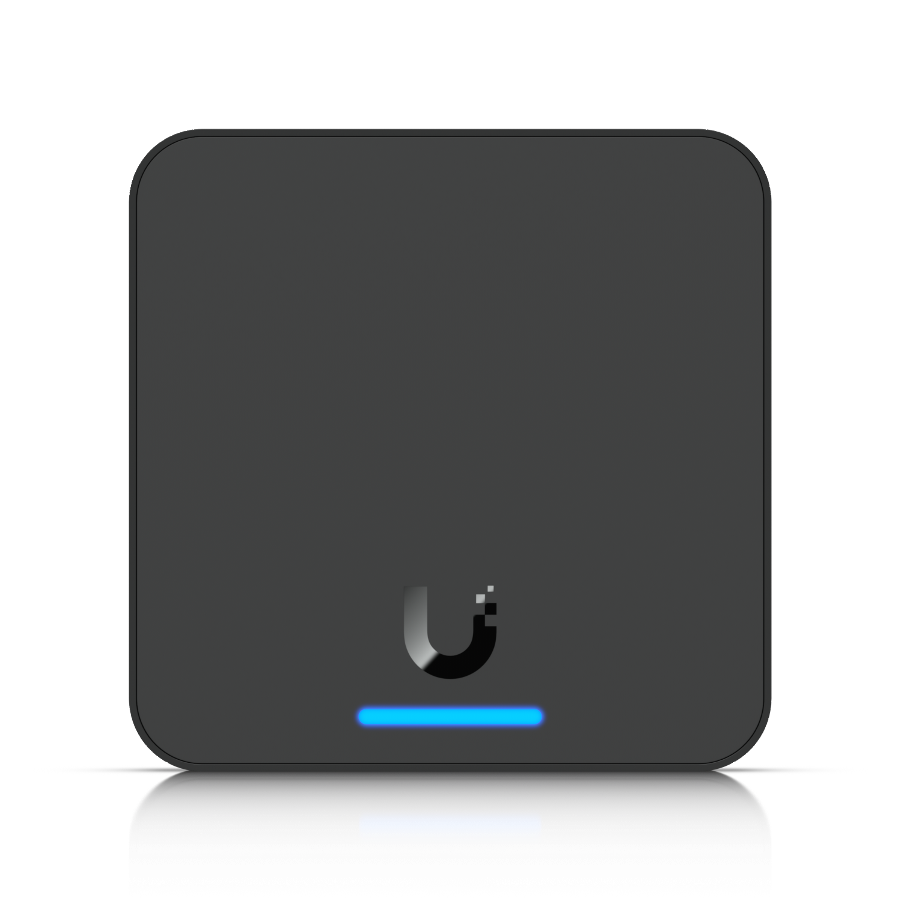

Ubiquiti Networks UA-G3-Flex

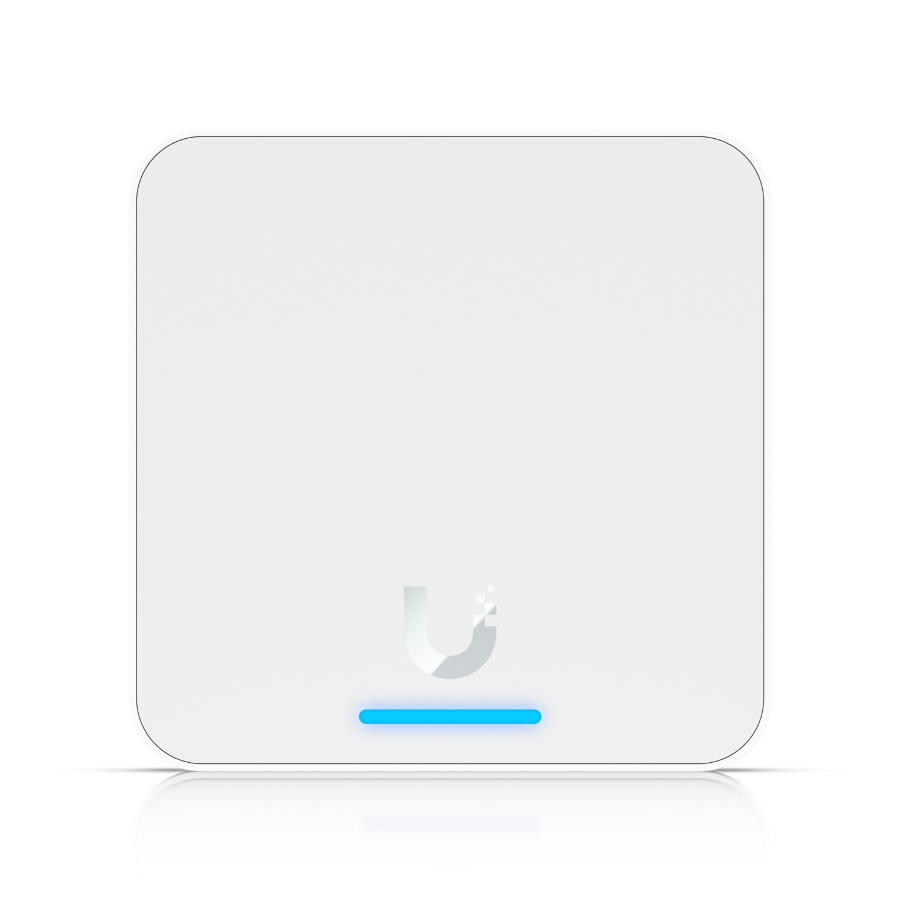

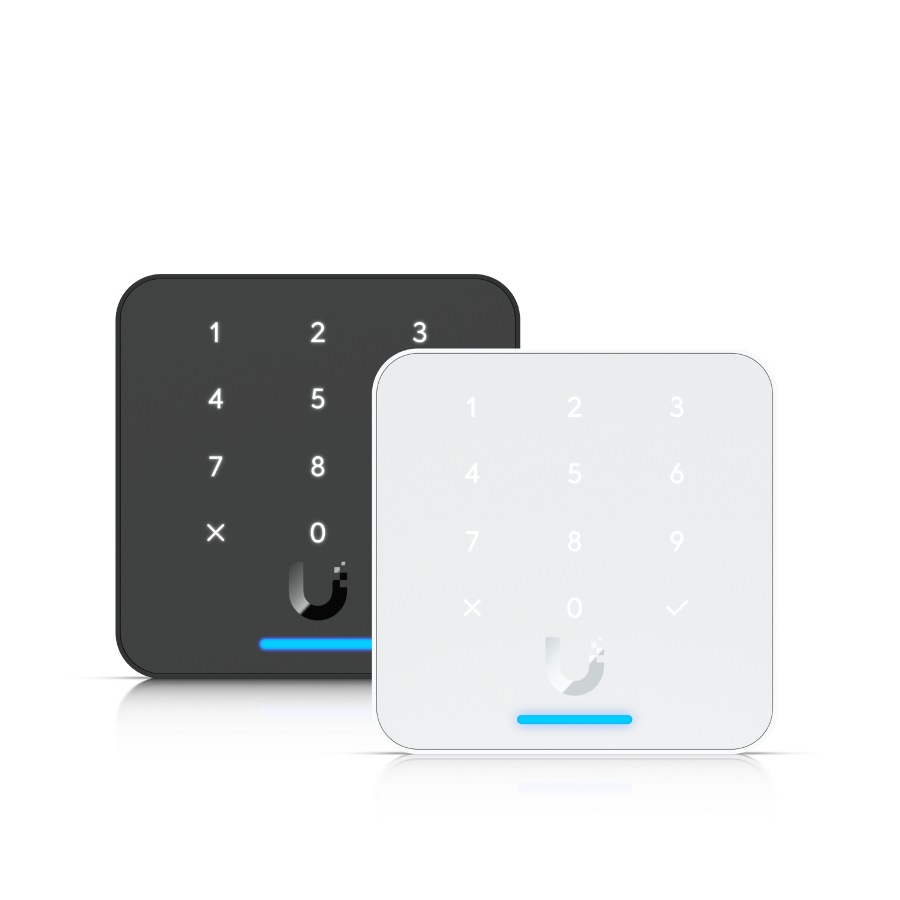

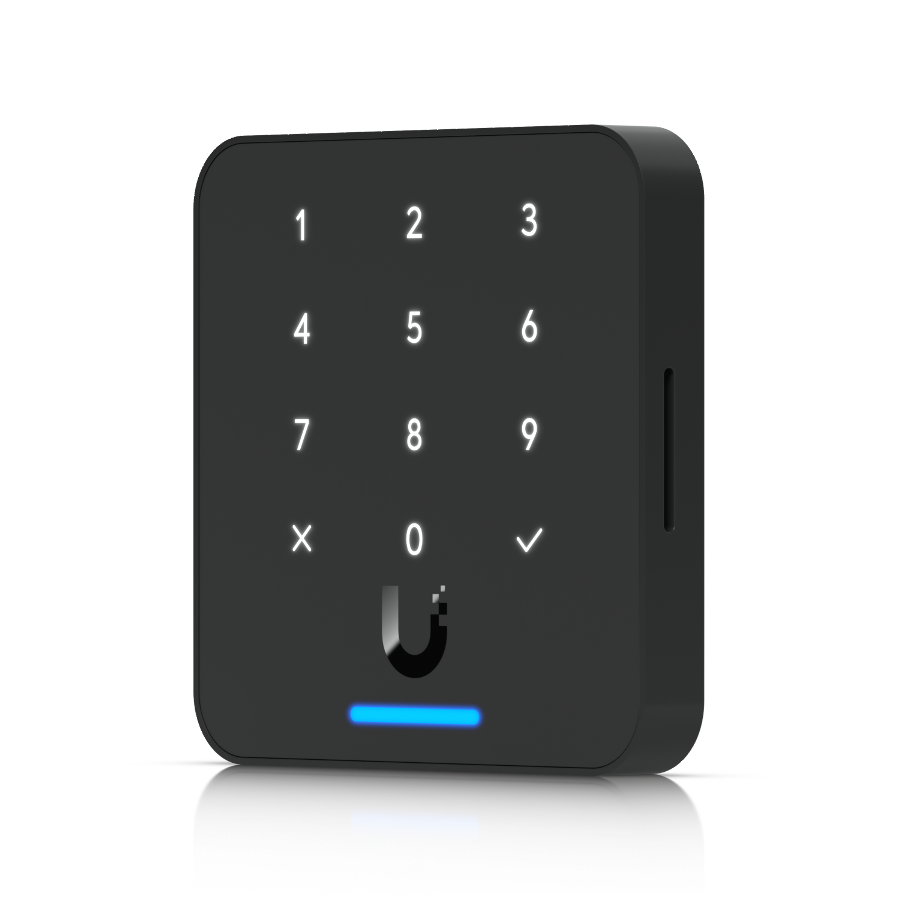

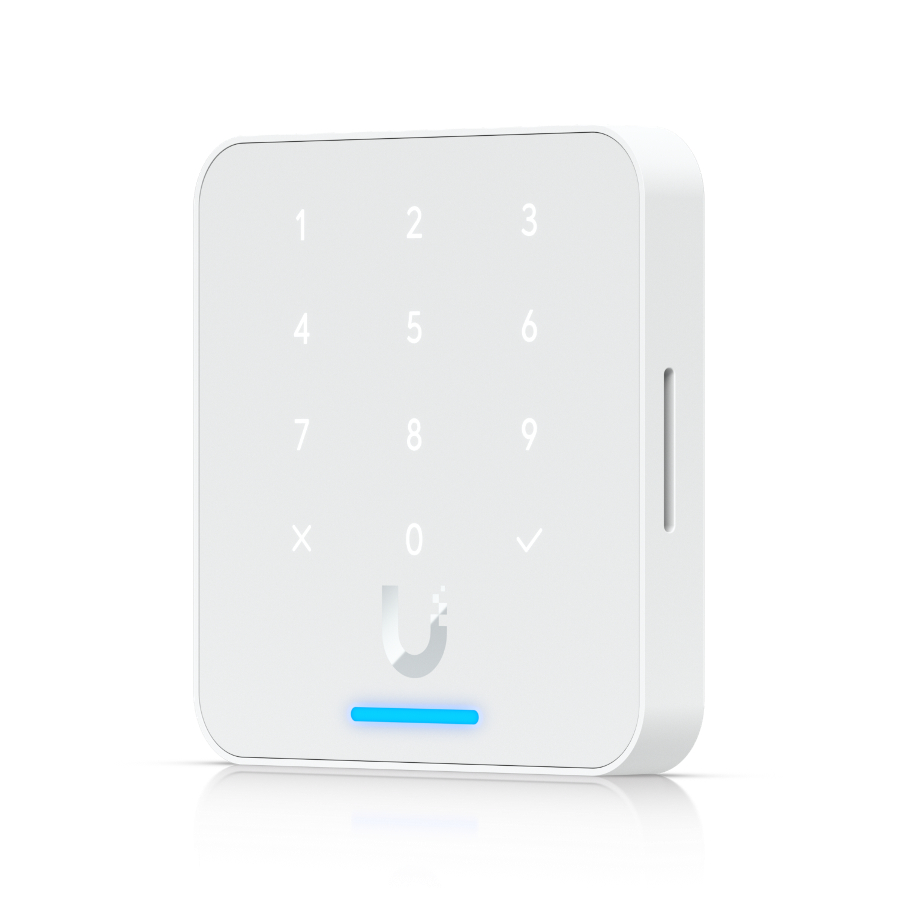

UniFi Reader Flex
Third-generation NFC card reader with a keypad and Apple Touch Pass support.
Features:

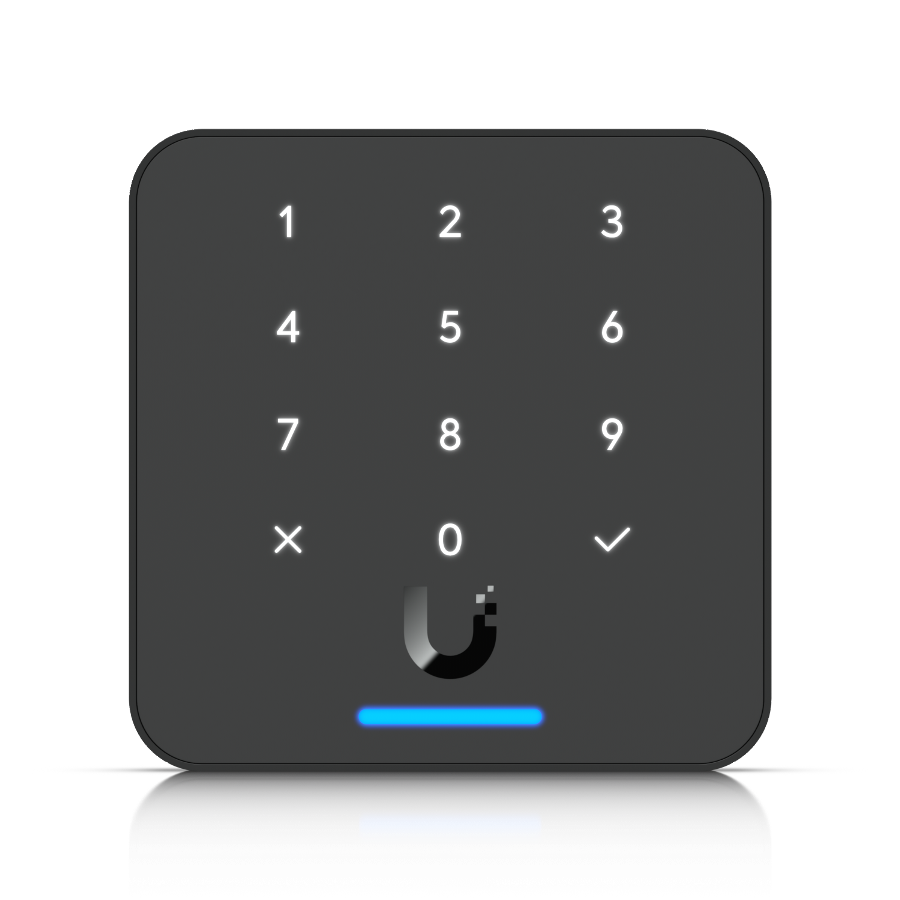

- Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass
- Provides entry and exit greeting messages
- Push button performance (Usable with moisture or most gloves)
- IP55-rated weather resistance (-30 to 60°C)

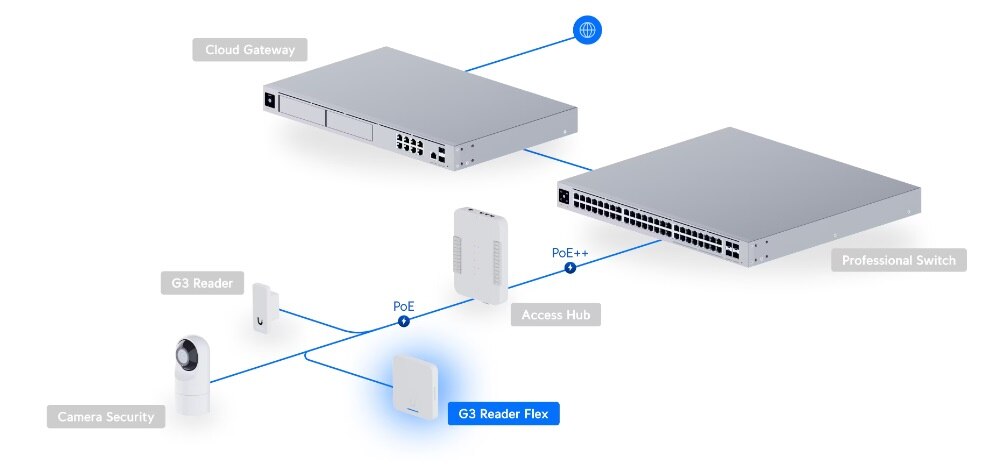

- Connects to UniFi Access Hub via PoE
Specifications
Specifications UA-G3-Flex

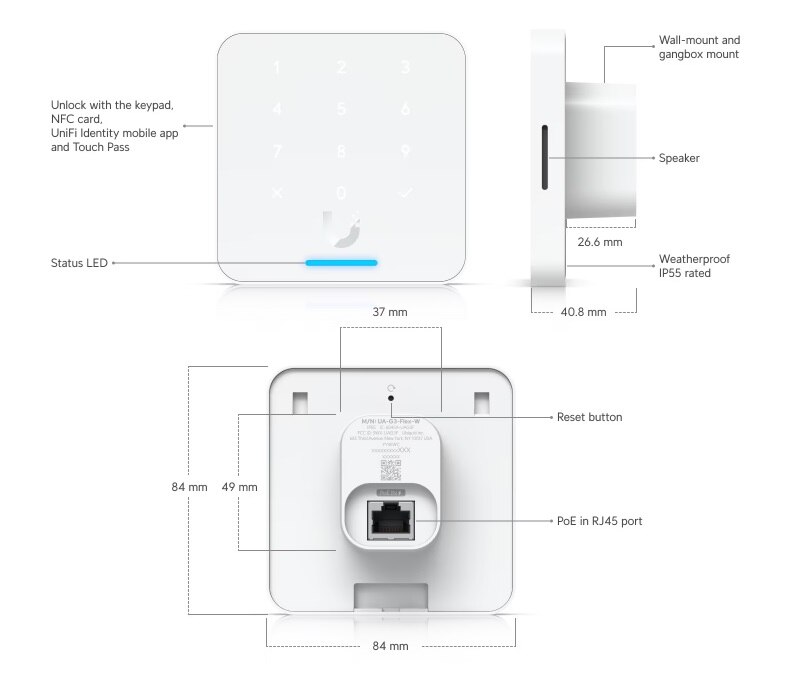

| Dimensions | 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6") |
| Weight | 165 g (5.8 oz) |
| Enclosure material | Polycarbonate, glass, aluminium alloy |
| Mounting material | Polycarbonate, aluminum alloy |
| Mounting | Wall, gang box, junction box |
| Weatherproofing | IP55 |
| Hardware | |

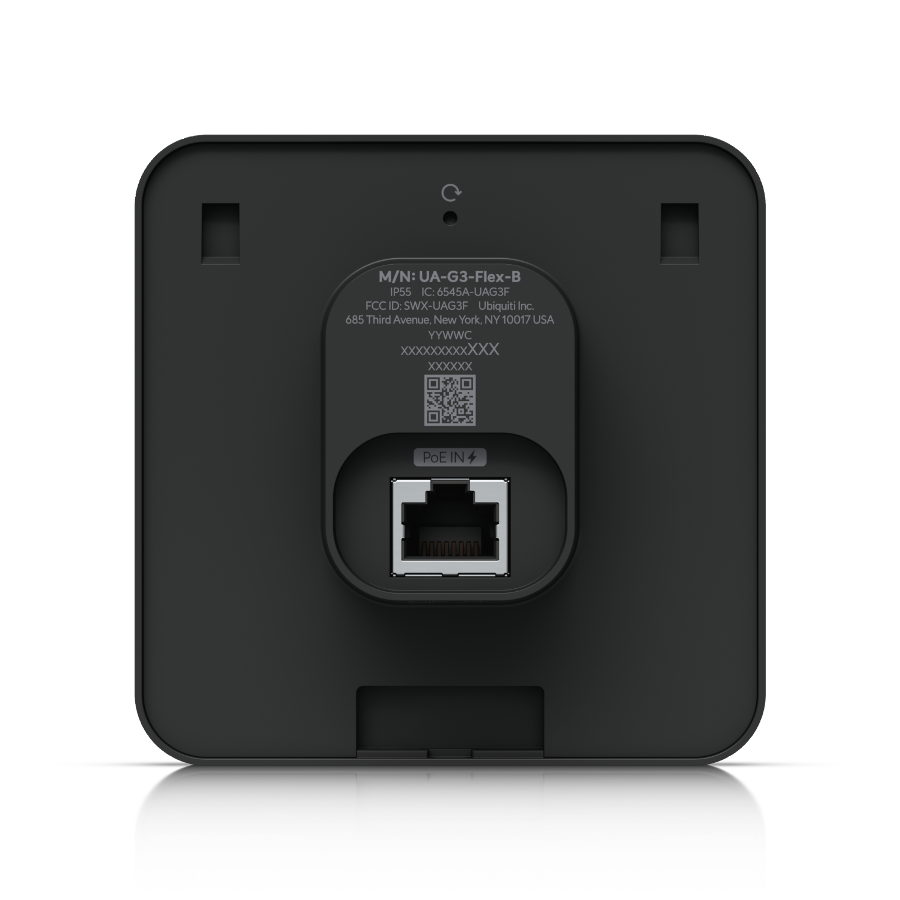

| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power method | PoE |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 5W |
| Sensor | (12) Capacitive buttons |
| Speaker | (1) 8 ohm, 1W |
| LEDs | (1) Status light (12) Keys backlight |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Document number, and issue date and/or revision level | UA-G3-Flex V01 |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
