Ubiquiti Long-Range Ethernet Repeater
- SKU: UACC-LRE
$40.45
Product Information

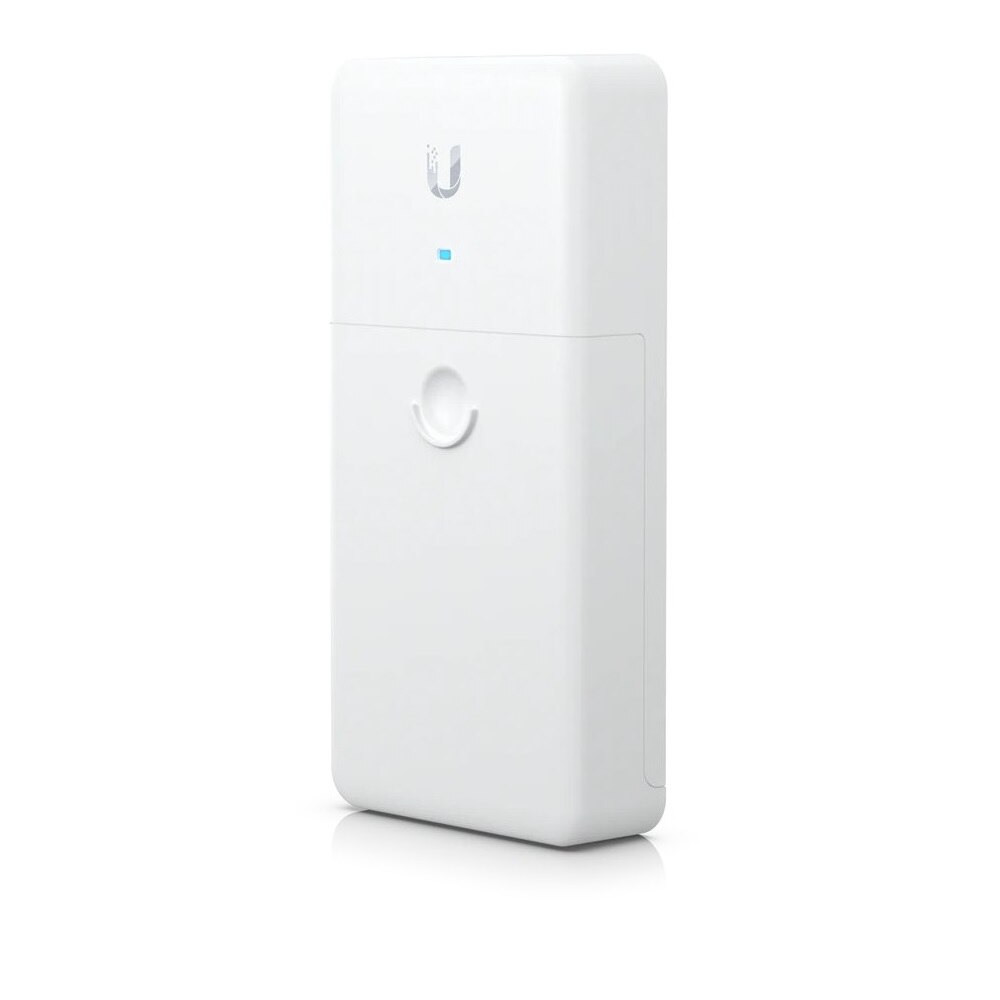

Ubiquiti Networks UACC-LRE
Long-Range Ethernet Repeater
The Long-range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive 802.3af/at PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage.
Features:
- Extend PoE connections up to 1 km*
- (1) GbE RJ45 port for PoE/PoE+ input**
- (1) GbE RJ45 port for passthrough PoE output
- 10kA+ surge protection
- Works reliably in extreme temperatures (-40 to 80° C)
Specifications
Specifications UACC-LRE
| Dimensions | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5") |
| Weight | 350 g (0.027 lbs) |
| Enclosure material | UV stabilized polycarbonate |
| Mounting material | Stainless steel |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| PoE interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Power method | PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)* |
| Max. power consumption (excluding PoE out) | 1.5W |
| Voltage range | 37—57V DC |
| ESD/EMP protection | Air/contact: ± 30kV |
| DC sparkover voltage | 90V at 100V/s |
| Max. impulse sparkover voltage | 700V at 1kV/μs |
| Discharge current | 10kA+ |
| Max. MTU | 1,500 bytes |
| Modes | Long-range indoor Outdoor ethernet repeater |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Blue: power ON |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: passthrough PoE out |
