Ubiquiti Networks 8-Port, Layer 3 Etherlighting™ PoE++ Switch with (8) 10 GbE and (2) 10G SFP+ Ports
- SKU: USW-Pro-XG-8-PoE
$700.55
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks USW-Pro-XG-8-PoE
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
Features:

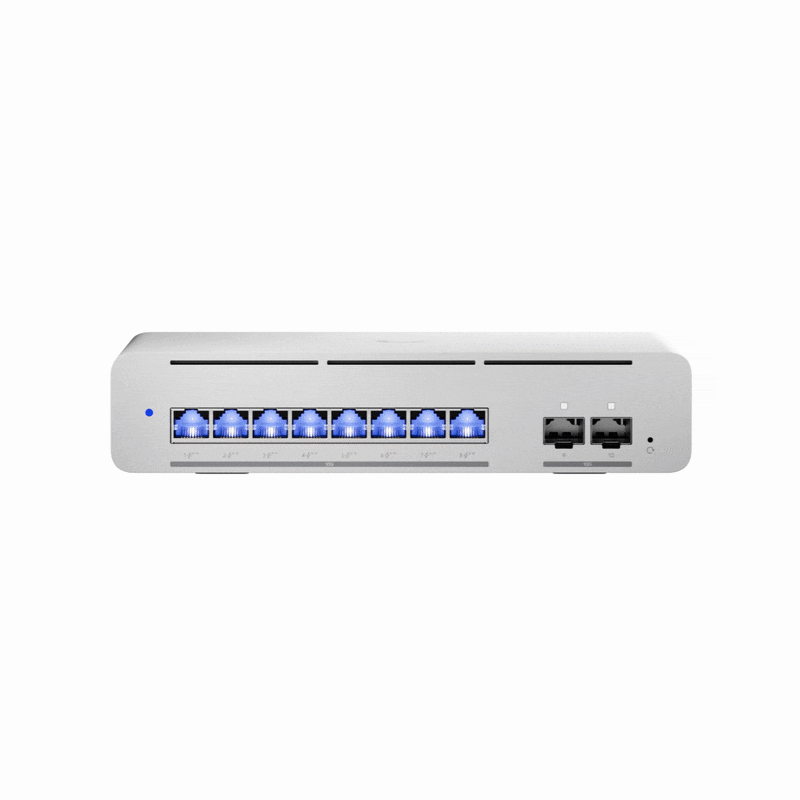

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (8) 10 GbE PoE++ ports
- (2) 10G SFP+ ports
- 155W total PoE availability

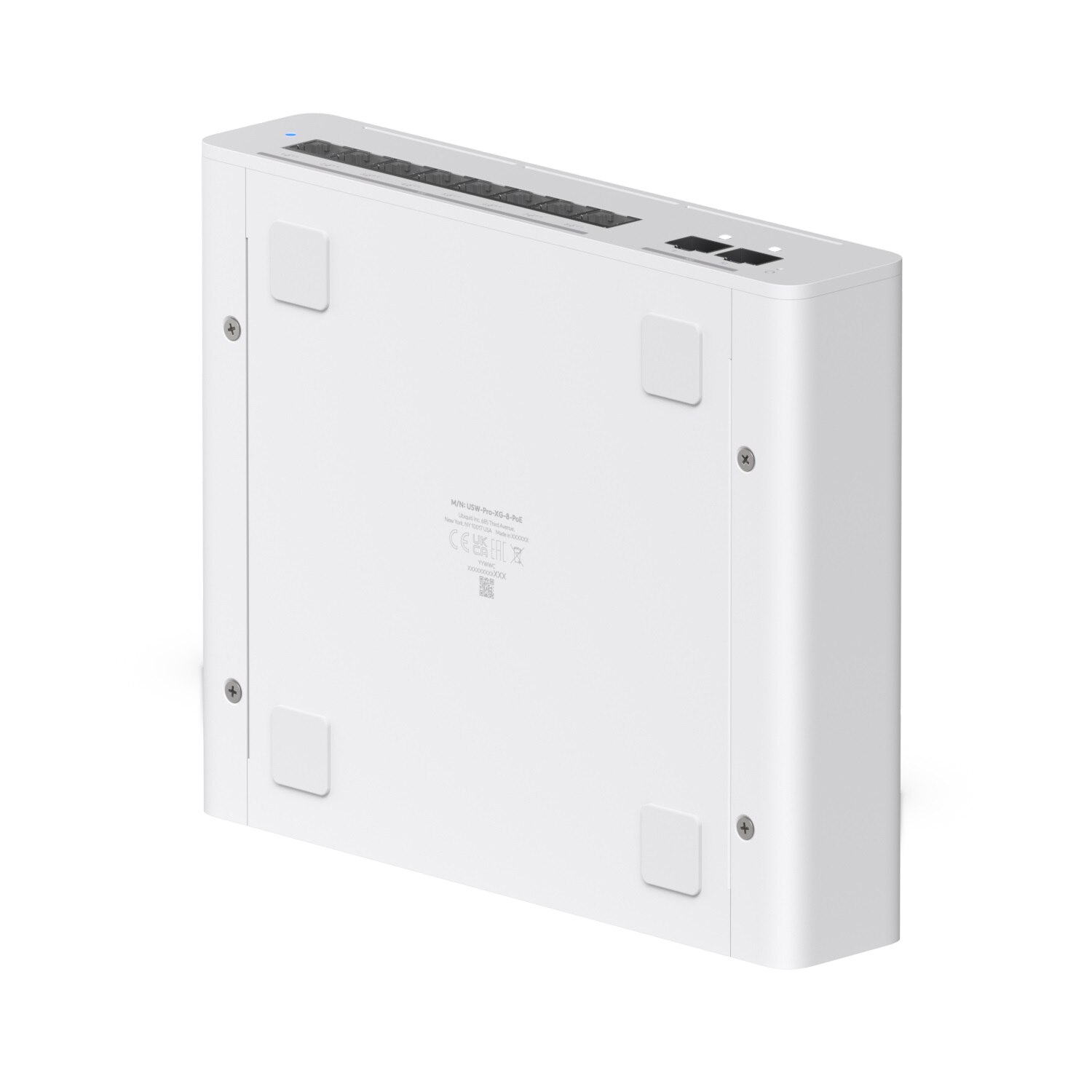

- Versatile desktop and wall, mounting
Specifications
Specifications USW-Pro-XG-8-PoE

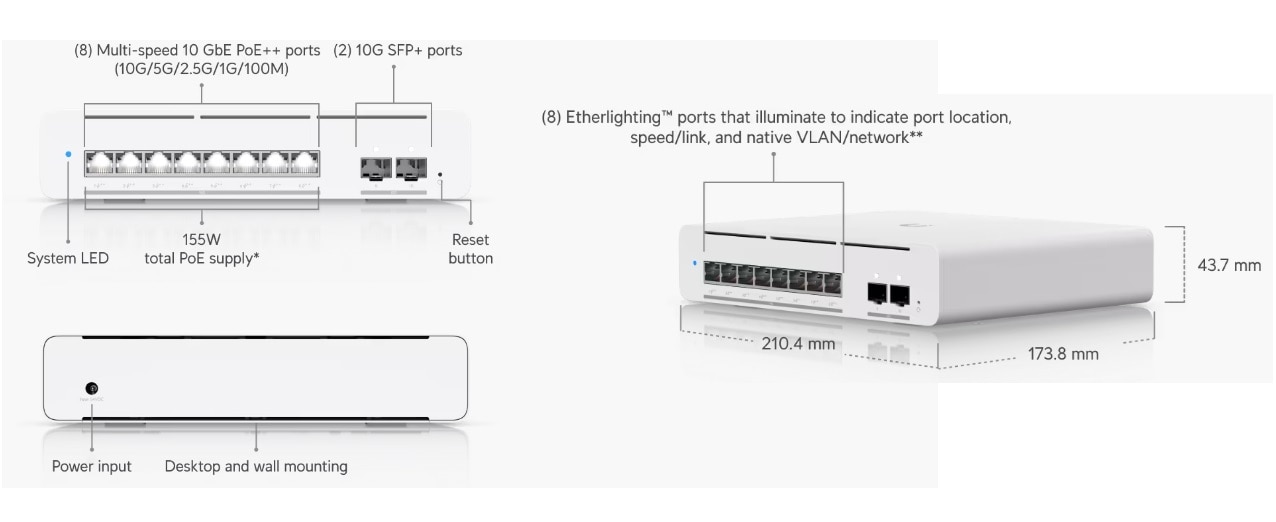

| Dimensions | 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7") |
| Port Layout | |
| 10 GbE RJ45 | 8 (All PoE++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Layer 3 | Yes |
| Form Factor | Compact desktop, wall |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | |
| ARP Entries | 12,000 |
| IPv4 Routes | 12,000 |
| Packet Buffer Size | 2 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| PoE Ports | |
| PoE++ | 8 |
| Max. PoE Wattage per Port by PSE | |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| Max. Power Consumption | 61W (Excluding PoE output) 220W (Including PoE output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 210W |
| Management | Ethernet |
| Weight | 1.6 kg (3.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Polycarbonate |
| ESD/EMP Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | |
| Ethernet | Yes |
| SFP+ | Yes |
| LEDs | |
| System | Yes |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
