Uniview 5MP LightHunter HD IR Fixed Dome Analog Camera
- SKU: UAC-D125-AF28(40)M
$195.14
- Manufacturer: Uniview
- Data Sheet: Download
Product Information
Uniview UAC-D125-AF28(40)M

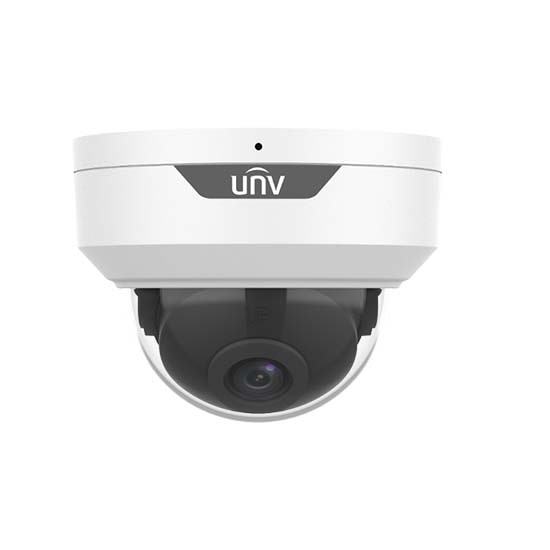

5MP LightHunter HD IR Fixed Dome Analog Camera
This UAC-D125-AF28(40)M is a 5MP LightHunter HD IR fixed dome analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
Features:
- High quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- Supports 180° horizontal/vertical flip
- OSD configuration menu, easy to operate
- Water and dust resistant (IP67) and vandal-resistant (IK10)
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Metal base and metal housing
- 3-Axis
Specifications
Specifications
| Sensor | |
| Pixel | 5MP |
| Size | 1/2.7" |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | |
| Lens | 4.0mm |
| Lens mount | M12 |
| Angle of view | H: 91.3° V: 46.1° D: 109.6° |
| Illuminator | |
| Illuminator | One IR illuminator |
| Illumination distance | 30m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Audio | |
| Microphone | Built-in Mic |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4kV for power and video output interfaces |
| Ingress protection | IP67 |
| IK rating | IK10 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection, Max 3.3W |
| Mount | Surface mount (default), optional tilted mounting bracket |
| Dimensions | Φ109mm*83mm (diameter*height) |
| Material | Metal |
| Weight | 372g (0.82lb) |
| Certification | CB, CE, FCC, UL |
