WaveOptics Pushable UV Resistant Cable Gel-Filled 01F G657A1 Fiber MT
- SKU: FOSPC-001-T-PS30-FT002-EX
$0.11
- Manufacturer: WaveOptics
- Data Sheet: Download
Product Information
WaveOptics FOSPC-001-T-PS30-FT002-EX

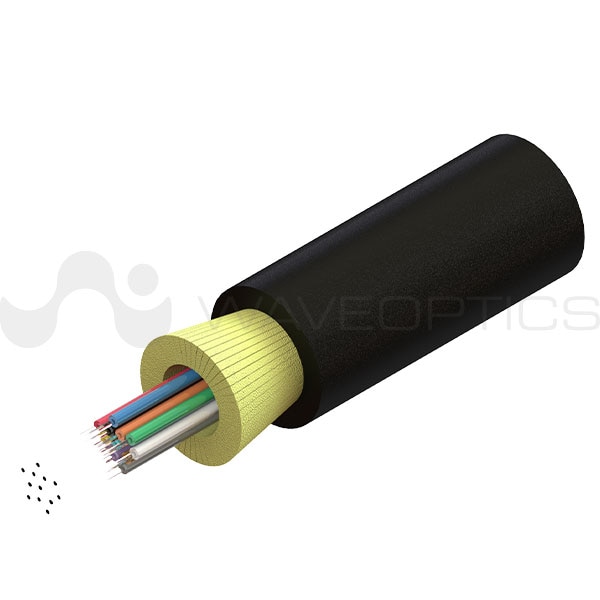

Pushable UV Resistant Cable Gel-Filled 01F G657A1 Fiber MT
Waveoptics® Pushable Cable Gel-Filled is designed for installation in microducts. Outer jacket made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test. Aramid yarn is used as a strength member. These two elements combined make a light weight, robust and crush resistant cable that allows it to be pulled and pushed into a microduct, reducing fiber deployment cost, while maximizing the pulling and pushing distance.
1 – 4 fibers configuration uses water blocking aramid yarn and 6 – 12 fibers configuration is filled with water blocking gel.
APPLICATIONS:
- Indoor
- Outdoor
- Duct Installation
- Bend Insensitive
PROTECTIONS:
- Water Blocking
- Crush Resistant
Specifications
Specifications FOSPC-001-T-PS30-FT002-EX
| Design Properties | |
| Fibers per Tube | 1 – 12 |
| Dielectric Strength Member | Water Blocking Aramid Yarn |
| Outer Jacket Material | PBT / 0.50 mm (0.118 in) (±5%) |
| Drum Length | 3,200 ft or 10,000 ft (±5%) |
| Temperature Range | |
| Operation | -40°C to 70°C (-40°F to 158°F) |
| Installation | -30°C to 60°C (-22°F to 140°F) |
| Storage / Transport | -40°C to 70°C (-40°F to 158°F) |
| Mechanical Properties | |
| Maximum Crush Resistance | 500 N/100mm |
| Minimum Bend Radius | 50 mm (1.97 in) |
