AFL LL-400b Fiber Optic Enclosure

AFL LightLink 400b Optical Splicing and Distribution Enclosure

The LL-400b is a butt-style enclosure equipped with 6 independent cable entry/exit grommets, used for outdoor pedestal or indoor building entrance and riser splicing applications. The unit supports a maximum storage and splicing capacity of up to 240 single or 432 mass-fused fibers.

• MDU splicing
• OSP splicing
• FTTx distribution

• Supports optional interconnect modules
• Enclosure has a scratch-resistant powder-coated aluminum base and a fully gasketed cover
• Unique self-sizing grommet design allows for express and pre-terminated cable installation
• Organize splicing and interconnecting fibers in FTTx, broadband, distribution, and building entrance applications

• Six cable entries: 2 up to 1.00 ft and 4 up to 0.77 ft
• 240 single fusion splices
• 432 mass fusion splices
• White Aluminum Chassis
• 22.75 in x 11.00 in x 4.0 in | 57.79 cm x 27.94 cm x 10.16 cm
• 6.5lbs | 2.95 kg

• AFL LL-400b Optical Splicing and Distribution Enclosure

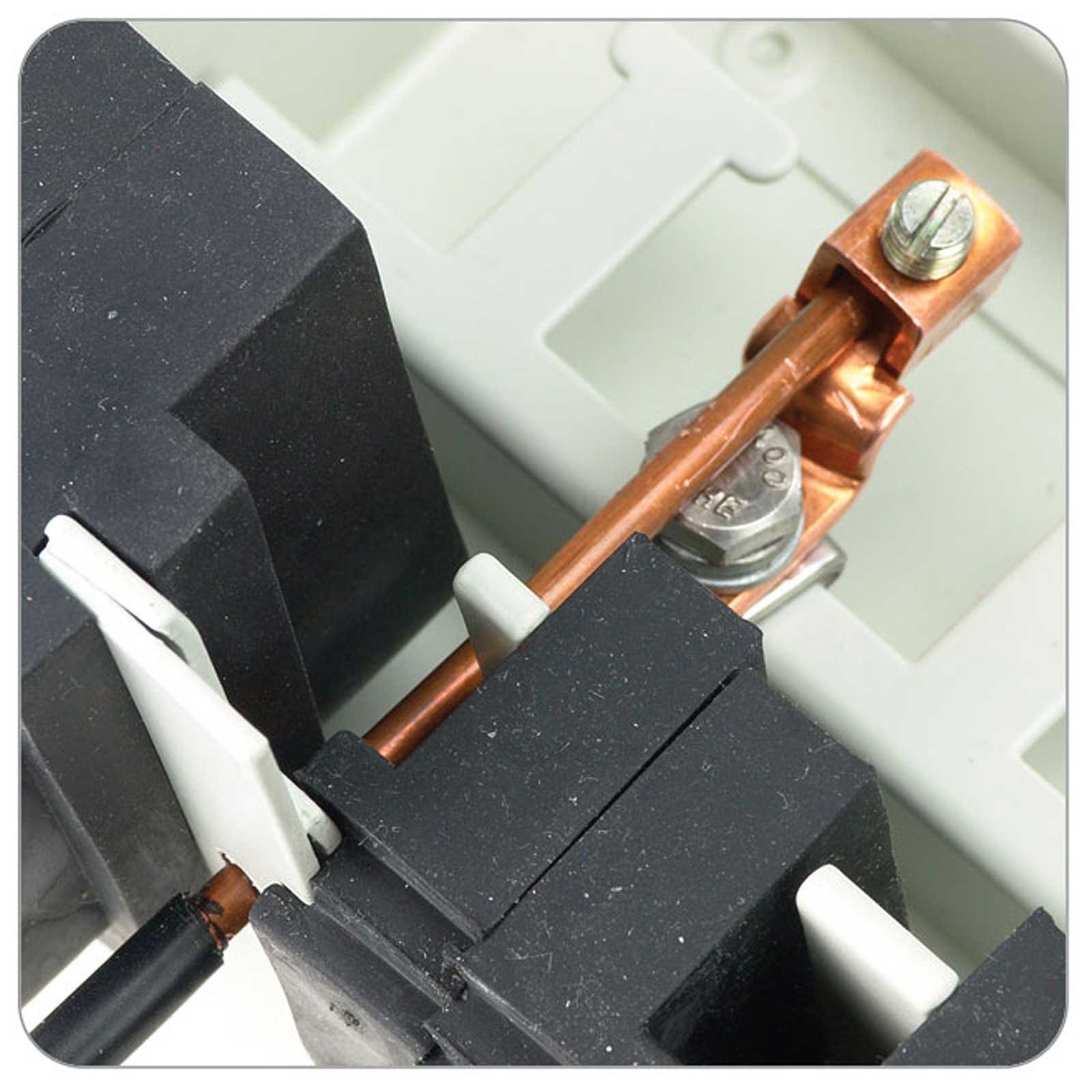

• Hardware Kit for External Grounding

Does not include splice trays or interconnect module.

• LL-410 Interconnect Module (Supports Up To 2 LGX-118 Adapter Plates): 911410-00-04
• LL-2400 Single Fusion Splice Tray: 91710-06
• LL-2448-48S Single Fusion Splice Tray: FA000045
• LL-2448 Universal Splice Tray: 911289-00-02
• LL-400 Security Kit: FM000787
• LL-400b Large Dual-port Grommet Kit: 911406-00-00
• LL-400b Large Multi-port Grommet Kit: FC000352
• LG-410/LG-500 Dual-port Grommet Kit: 911386-00-01
• LG410/LG500 Multi-port Grommet Kit: FC000573
• LL-400b In 1212 Pedestal: FM000636
