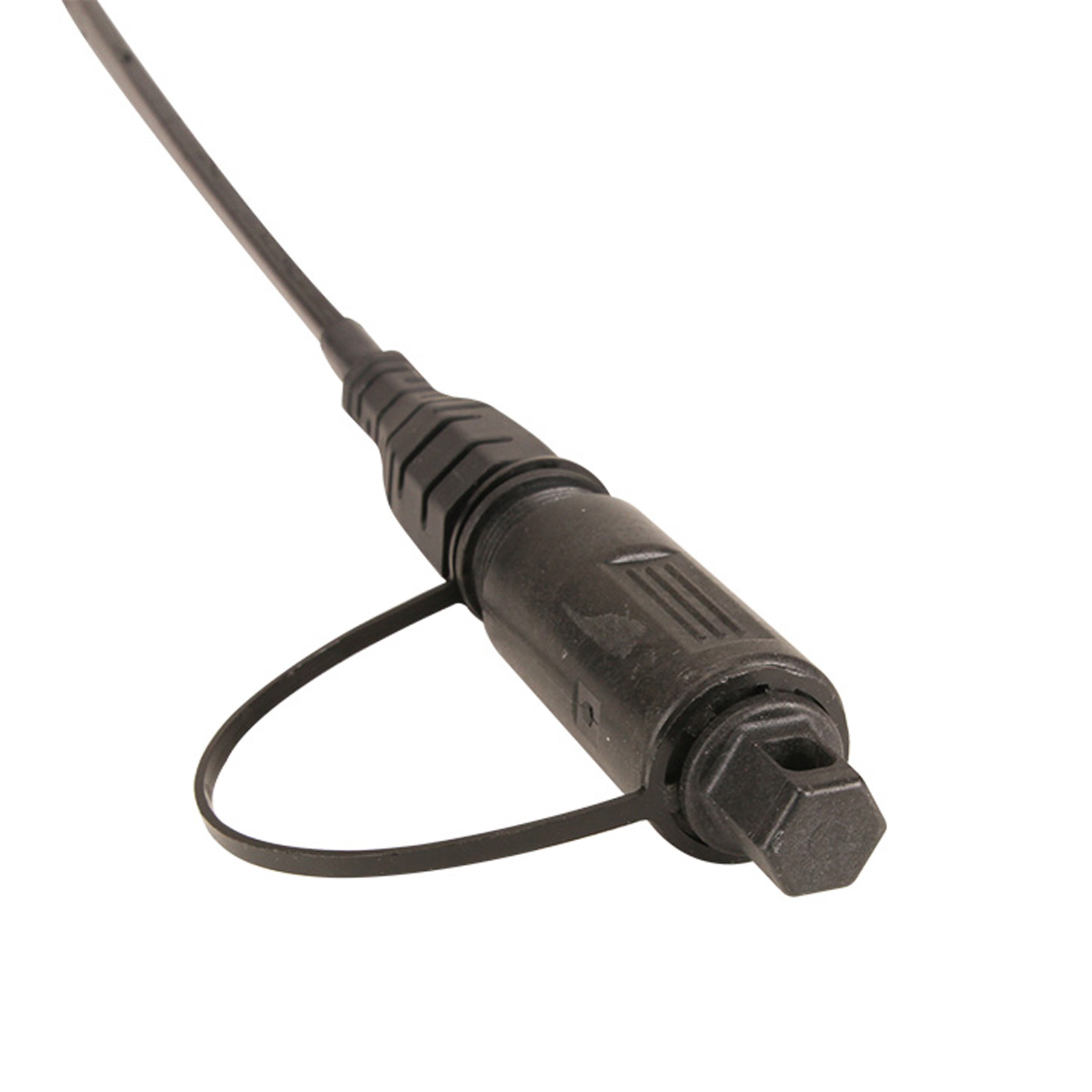

AFL TRIDENT Pigtail Stub (150 Meters)

AFL TRIDENT 150 Meter Pigtail Stub

The AFL TRIDENT factory-terminated drop cables serve as the final component of the AFL TITAN RTD® FTTx System. These cables feature a convenient quarter-turn latching and sealing mechanism in the AFL TRIDENT connector, allowing for effortless "plug and play" connections to AFL TITAN RTD multiport terminals. This enables fast and reliable subscriber connections with excellent long-term performance. The connector/adapter interface is designed with keying to ensure precise alignment of the 2.5 mm APC ferrule. Once the connector is inserted and keyed, locking and sealing are achieved by simply quarter-turning the connector coupling, similar to a BNC connector.

• OSP Networks
• FTTx Networks

• AFL TRIDENT Hardened Connectors for speedy customer connections
• Factory terminated on 250 μm outdoor or 900 μm indoor/outdoor flat drop cable as well as 250 μm armored drop or 900 μm pushable/air-jettable MicroDrop
• Aerial self-support capable

• 4.8mm Cable Diameter
• Trident Outside End Connector
• No Inside End Connector
• 1 Fiber
• Single-mode ITU-T G.652.D
• 150 Meters

• One AFL TRIDENT Pigtail Stub (150 Meters)
