Cambium ePMP 4600 6 GHz 4x4 Access Point Radio (FCC/IC) (US cord)

  • SKU: C068940A122B
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • 16 In Stock (updated live)
CA$‎2,043.85

Add-Ons (click to select)

Cambium Networks C068940A122B

ePMP 4600 6 GHz 4x4 Access Point Radio (FCC/IC) (US cord)

Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP 4600 Access Point series is the fourth generation based on 802.11ax technology. ePMP 4600 Access Points series interoperate with Force 4600 Subscriber Modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 4600 Access Point series to deliver consistently high-quality service plans to a large number of end users.

All ePMP 4600 Access Point series is managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge. The ePMP 4600 Access Point series is the first ePMP Access Point to operate across the 6 GHz spectrum. The ePMP 4600 covers 5.925 GHz to 7.125 GHz spectrum depending on local regulatory limits. For the FCC market, the ePMP 4600 leverages AFC (Automatic Frequency Coordination) services to comply with 6 GHz operation.

ePMP 4600 Featuring 4x4 MU-MIMO and dual overlapping sectors, the ePMP 4600 can transmit to two SMs at the same time. This effectively doubles the capacity of 2x2 systems and in the process, increases link budgets by 3 dB with downlink beamsteering. Combining 160 MHz channels, 4096QAM and OFDMA the ePMP 4600 delivers up to 4 Gbps total aggregate capacity to as many as 120 subscribers. The ePMP 4600 is deployed with the 90º 4x4 MU-MIMO sector available from Cambium Networks.

Features:

  • High-performance, scalable and reliable access points for fixed wireless broadband
  • ePMP 4600 features MU-MIMO for up to 4 Gbps in 6 GHz
  • Low TCO with three-year hardware warranty
  • Interoperable with all Force 4600 radios

Shipping Information:

Dimensions (W x H x L)7cm X 4cm X 14cm
Weight3.8 lbs

Specifications

Weight21.12 lbs
Dimension20.86" x 14.96" x 8.85"
HTS Code8517.62.0090
Country of OriginChina
Channel Width20 | 40 | 80 | 160 MHz
Proprietary Physical Layer4x4 MU-MIMO/OFDMA based on 802.11ax underlying technology
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 5925–7125 MHz
MAC Layer (Media Access Control)Cambium Proprietary"

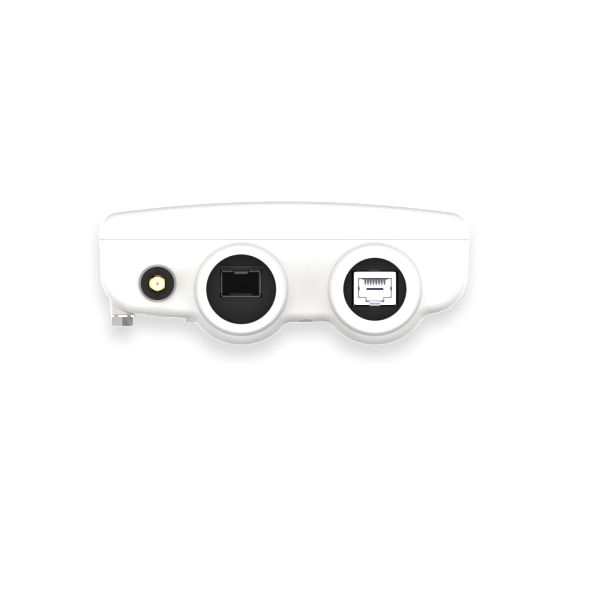

Ethernet Interfaced100/1000 BaseT, rate auto negotiated, 802.3at compliant & Aux SFP+ port
Supported Powering Methods56 V 30W PoE (included), standard 802.3at PoE Supply, or cnMatrix Tower Switch
Protocols UsedIPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs,STP, SSH, IGMP Snooping"
Network ManagementHTTP/HTTPS, SNMPv2c, SNMPv3, SSH 802.1Q
VLAN802.1Q with 802.1p priority
Transmit Power Range0 to +31 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna90º 4x4 Sector Antenna available - Part # C060940D301A
Subscribers per SectorUp to 120
ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS 0 = -92 dBm to MCS 13(4096 QAM-5/6) = -54 dBm (per chain"
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS 0 = -89 dBm to MCS 13(4096 QAM-5/6) = -50 dBm (per chain)"
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS 0 = -86 dBm to MCS 13(4096 QAM-5/6) = -46 dBm (per chain)"
Nominal Receive Sensitivity (w/FEC) @160 MHz ChannelMCS 0 = -83 dBm to MCS 13(4096 QAM-5/6) = -43 dBm (per chain)"
Modulation Levels (Adaptive)MCS 0 (BPSK) to MCS 13 (4096 QAM-5/6)
GPS SynchronizationYes, via Internal GPS or Cambium Sync QoS
(Quality of Service)Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Surge Supression*1 Joule Integrated
EnvironmentalIP67
Temperature-30°C to 55°C (-22°F to 131°F)
Power Consumption28W Maximum
Input Voltage44V to 59V

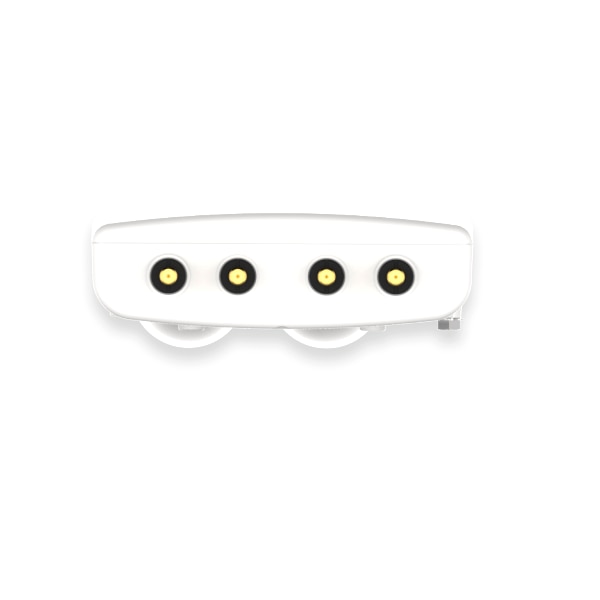

Sector Antenna Connection4 x 50 ohm, RP (Reverse Polarity) SMA
GPS Antenna Connection1 x 50 ohm, RP (Reverse Polarity) SMA; external GPS Puck Antenna - Part # N000900L030A
