Tycon Power Gigabit 18-36V DC IN 56VDC 50W Out Hi Power DC to DC Converter and POE Inserter
- SKU: TP-DCDC-2448G-HP
$85.61 $90.12
Product Information

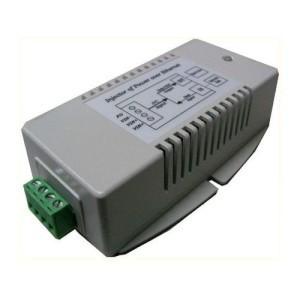

Tycon Power TP-DCDC-2448G-HP
Gigabit 18-36VDC IN56VDC 50W OUT Hi Power DC to DC Converter and POE Inserter
The TP-DCDC-2448G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a +/-48V battery system.
They have an integrated Gigabit Passive PoE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 18VDC and 36VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 50W.
Applications
- 12V / 24V / 48C Battery Systems, Vehicle Applications
- Wireless Access Points, and Client Devices
- P Phone and Security Camera Systems
Specifications
Specifications TP-DCDC-2448G-HP
| DC Input Voltage | 18VDC - 36VDC |
| DC Output Voltage | 56V (Passive |
| Data in & Data/POE Output Connector | RJ45 (shielded) |
| Output Current (max) | 0.9A |
| Output Power (max) | 50W |
| Self Consumption Power | 1W |
| Efficiency (min) | 75% |
| Operating Temp | -30 to +60deg C (-22 to +140deg F) |
| Operating Humidity | 5% - 90% |
| Dimensions | 85 x 76 x 36mm (3.4 x 3 x 1.4in) |
| Weight | 134g (4.7oz) |
