Ubiquiti Networks Single-Mode Fiber Patch Cables
- SKU: Single-Mode Fiber Patch Cables
$82.83 to $167.07Select options
- Manufacturer: Ubiquiti Networks
Product Information

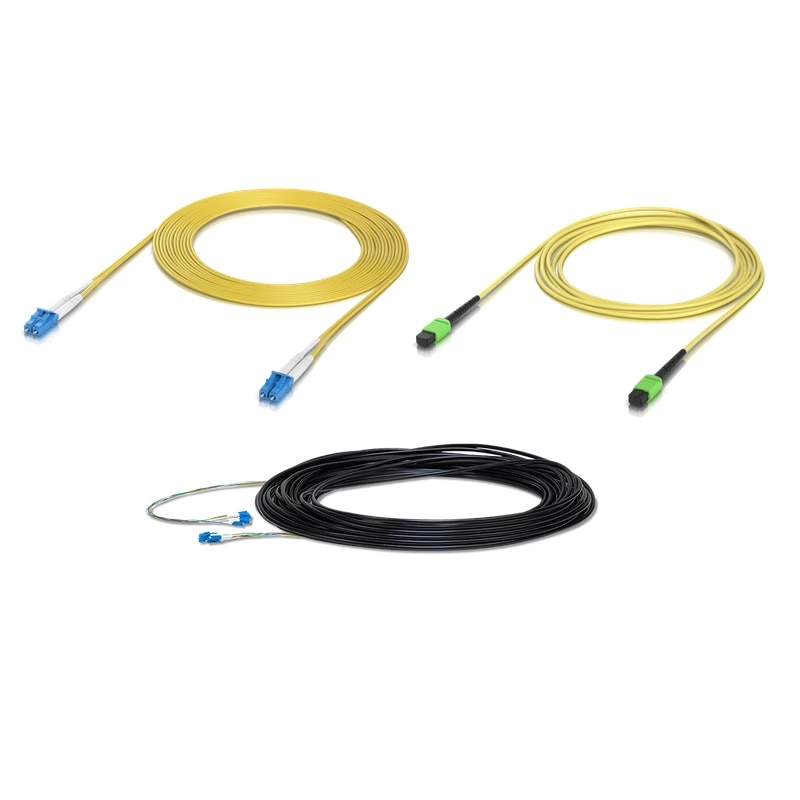

Ubiquiti Networks OS2 Duplex LC UPC Fiber Patch Cable
Lightweight fiber patch cable for up to 100G connections.
Features:
- OS2 single-mode fiber
- Duplex LC UPC connectors
- Cable length 0.5 to 30 m
Ubiquiti Networks OS2 MPO-12 APC Fiber Patch Cable
Indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors designed for 100G applications.
Features:
- OS2 single-mode fiber
- MPO-12 Type B APC connectors
- Cable length: 0.5 to 10 m
Ubiquiti Networks OS1 Simplex LC UPC Fiber Patch Cable
Outdoor OS1 single-mode fiber cable with simplex LC UPC connectors.
Features:
- OS1 single-mode fiber
- Simplex LC UPC connectors
- Cable length: 30.5 to 91.5 m
- Outdoor-rated jacket with ripcord
- Kevlar yarn for added tensile strength
Specifications
Specifications OS2 Duplex LC UPC Fiber Patch Cable
| Cable length | 1, 3, 5, 10, 15, 30 m (3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Connector type | LC-LC |
| Fiber mode | OS2 |
| Fiber type | Duplex |
| Polish | UPC to UPC |
| Wavelength | 1310/1550 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 2.0 mm |
| Jacket color | Yellow |
| Insertion loss | ≤ 0.3 dB |
| Return loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
Specifications OS2 MPO-12 APC Fiber Patch Cable
| Cable length | 0.5, 1, 3, 5, 10 m (1.6, 3.3, 9.8, 16.4, 32.8 ft) |
| Connector type | MPO/APC-MPO/APC |
| Fiber mode | SMG657A2 |
| Fiber type | 12Fiber |
| Gender | Female to female |
| Wavelength | 1310/1550 nm |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Jacket OD | 3.0 mm |
| Jacket color | Yellow |
| Insertion loss | ≤ 0.6 dB |
| Return loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
Specifications OS1 Simplex LC UPC Fiber Patch Cable
| Cable length | 30.5/61/91.5 m (100/200/300 ft) |
| Connector | LC-LC |
| Cable jacket | Outdoor-rated |
| Fiber type | Six-strand single-mode (G.657.A2) |
| Insertion loss | 1310 nm: ≤0.5 dB/km |
| 1550 nm: ≤0.5 dB/km | |
| Jacket OD | 6.0 mm |
| Jacket color | Black |
