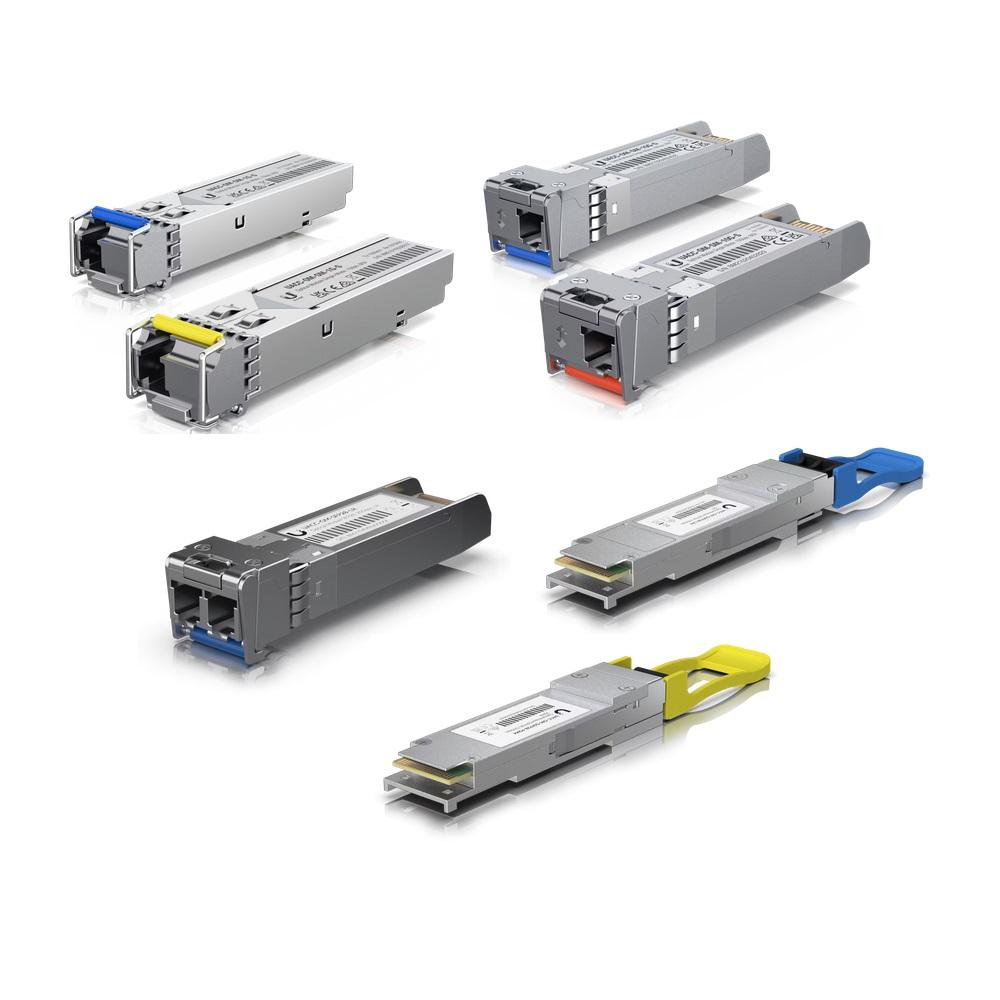

Ubiquiti Super Long-Range Optical Modules
- SKU: Super Long-Range Optical Modules
$30.89 to $2,035.68Select options
- Manufacturer: Ubiquiti Networks
Product Information
Ubiquiti Networks 1G Bidirectional Single-Mode Optical Module
SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
Features:
- Max data rate: 1 Gbps
- Compatible with SFP interfaces
- Simplex LC UPC connector
- Supports single-mode fiber connections up to 3 km*
Ubiquiti Networks 10G Bidirectional Single-Mode Optical Module
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a simplex LC UPC connector.
Features:
- Max data rate: 10 Gbps
- Compatible with SFP+ and SFP interfaces
- Simplex LC UPC connector and Duplex LC UPC connector
- Supports single-mode fiber connections up to 10 km*
Ubiquiti Networks 25G Single-Mode Optical Module
SFP28 transceiver that supports 25G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Features:
- Max data rate: 25 Gbps
- Compatible with SFP28, SFP+, and SFP interfaces
- Duplex LC UPC connector
- Supports single-mode fiber connections up to 10 km*
Ubiquiti Networks 100G LR4 Single-Mode Optical Module
QSFP28 transceiver that supports 100G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Features:
- Max data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- Duplex LC UPC connector
- Supports single-mode fiber connections up to 10 km*
Specifications
Specifications 1G Bidirectional Single-Mode Optical Module
| Supported media | Single-mode fiber |
| Connector type | (1) LC |
| BiDi | Yes |
| TX wavelength* | Blue latch: 1310 nm Yellow latch: 1550 nm Must be used in pairs (blue latch and yellow latch). |
| RX wavelength* | Blue latch: 1550 nm Yellow latch: 1310 nm Must be used in pairs (blue latch and yellow latch). |
| Data rate | 1 Gbps |
| Max. power consumption | 0.66W |
| Cable distance | 3 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| Pack options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
Specifications 10G Bidirectional Single-Mode Optical Module
| Simplex LC UPC | Duplex LC UPC | |
| Supported media | Single-mode fiber | |
| Connector type | (1) LC | (2) LC |
| BiDi | Yes | No |
| TX wavelength* | Blue latch: 1270 nm Red latch: 1330 nm *Must be used in pairs (blue latch and red latch). | Blue latch: 1310 nm |
| RX wavelength* | Blue latch: 1330 nm Red latch: 1270 nm *Must be used in pairs (blue latch and red latch). | Blue latch: 1310 nm |
| Data rate | 10 Gbps | |
| Max. power consumption | 1W | |
| Cable distance | 10 km | |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) | 0 to 70° C (32 to 158° F) |
| Pack options | 2-pack, 20-pack | |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. | |
Specifications 25G Single-Mode Optical Module
| Supported media | Single-mode fiber |
| Connector type | (2) LC |
| TX wavelength | Blue latch: 1310 nm |
| RX wavelength | Blue latch: 1310 nm |
| Data rate | 25 Gbps |
| Max. power consumption | 1.3W |
| Cable distance | 10 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
Specifications 100G LR4 Single-Mode Optical Module
| Duplex LC UPC | MPO-12 APC | |
| Supported media | Single-mode fiber | |
| Connector type | (2) LC | (1) MPO 1x12 |
| TX wavelength | 1295 nm, 1300 nm, 1304 nm, 1309 nm | 1310 nm |
| RX wavelength | 1295 nm, 1300 nm, 1304 nm, 1309 nm | 1310 nm |
| Data rate | 100 Gbps | 100 Gbps |
| Max. power consumption | 4W | 3.5W |
| Cable distance | 10 km | 2 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) | |
