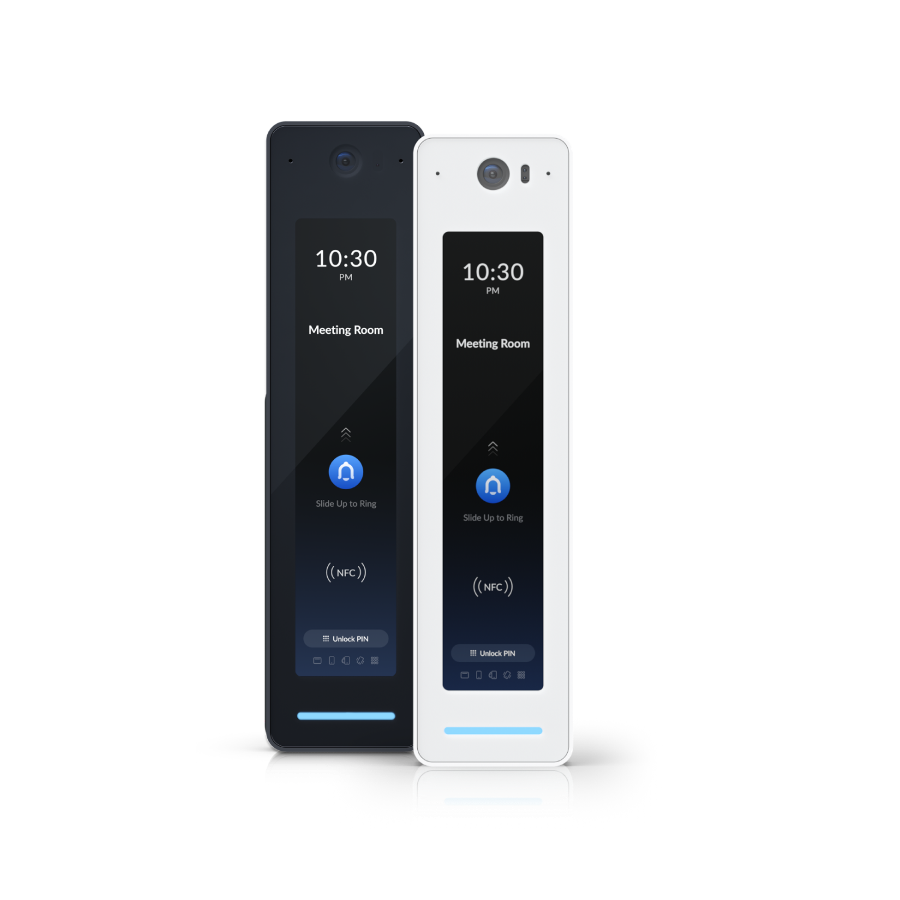

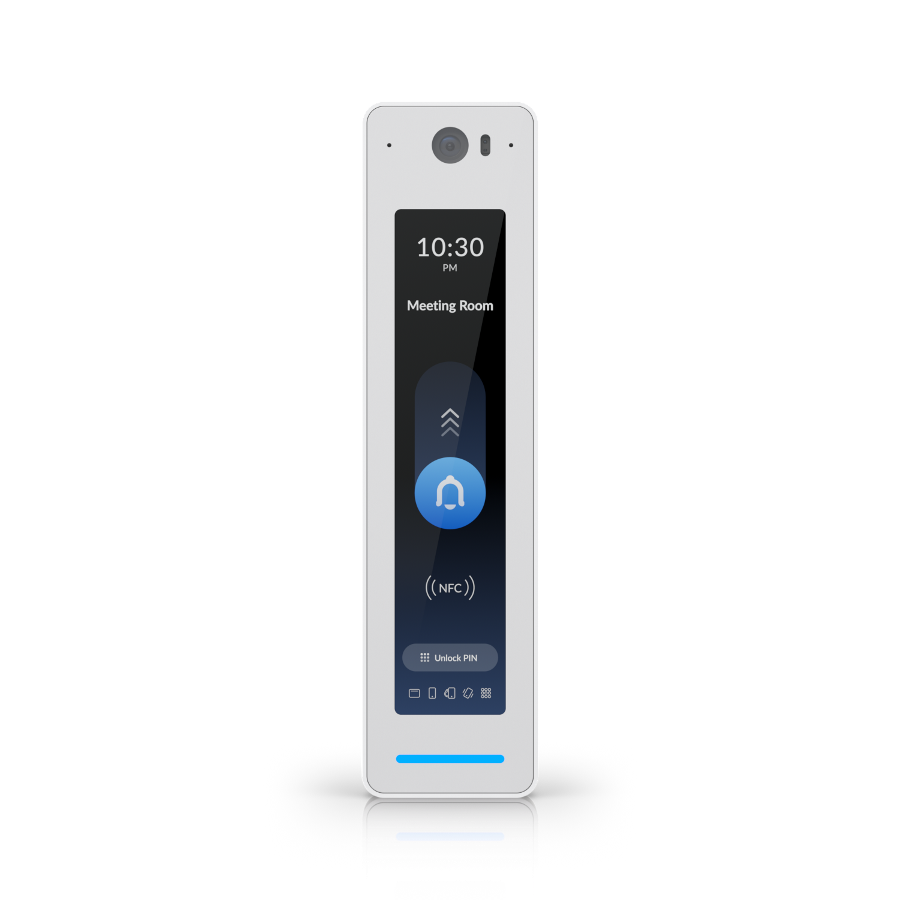

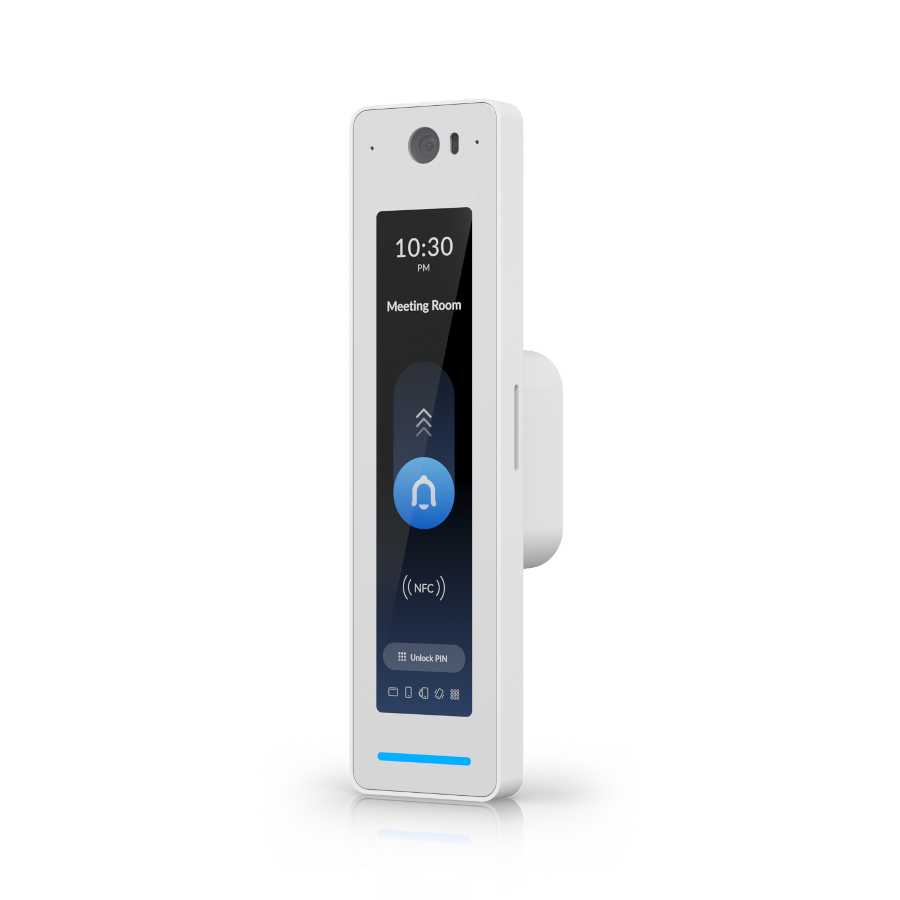

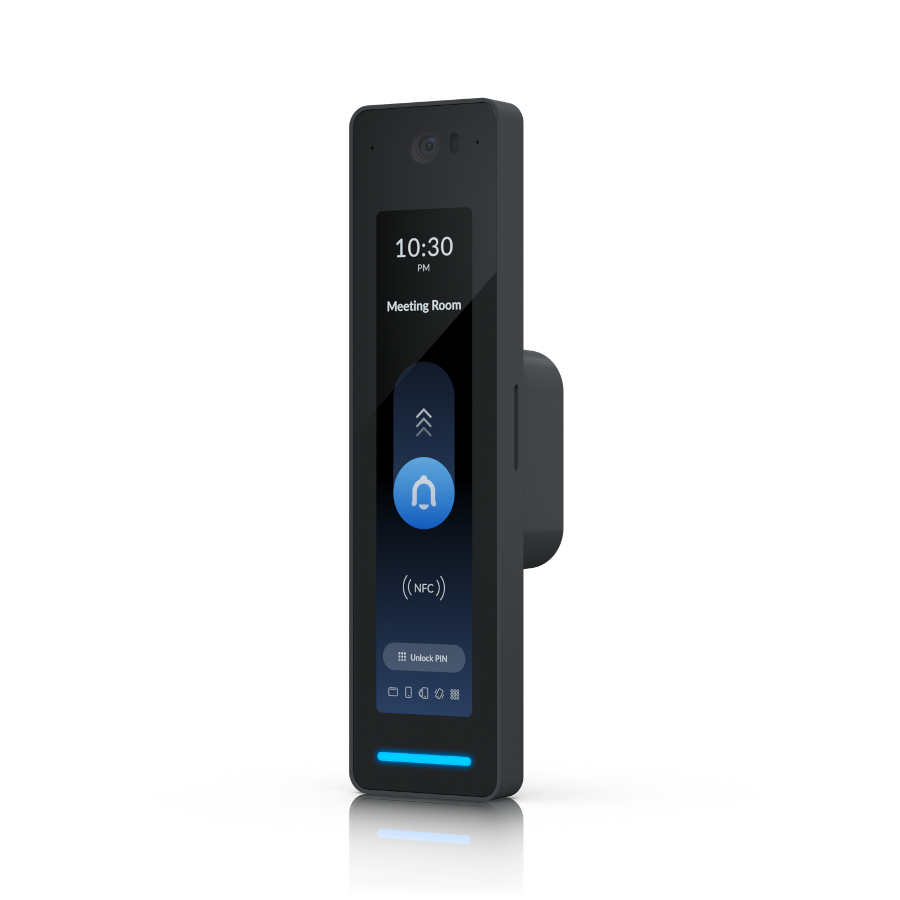

Ubiquiti UniFi G3 Reader Pro
- SKU: G3 Reader Pro
$528.67 to $532.08Select options
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks UA-G3-Pro
Ubiquiti UniFi G3 Reader Pro
Third-generation, indoor/outdoor NFC reader and intercom with Apple Touch Pass support.
Features:
- Unlock using the NFC card, PIN, UniFi Identity mobile app, face unlock and Touch Pass
- Doorbell for unlock with video of visitor and two-way intercom
- Video works at ADA-compliant mounting height
- IP55-rated weather resistance (-10 to 45° C)

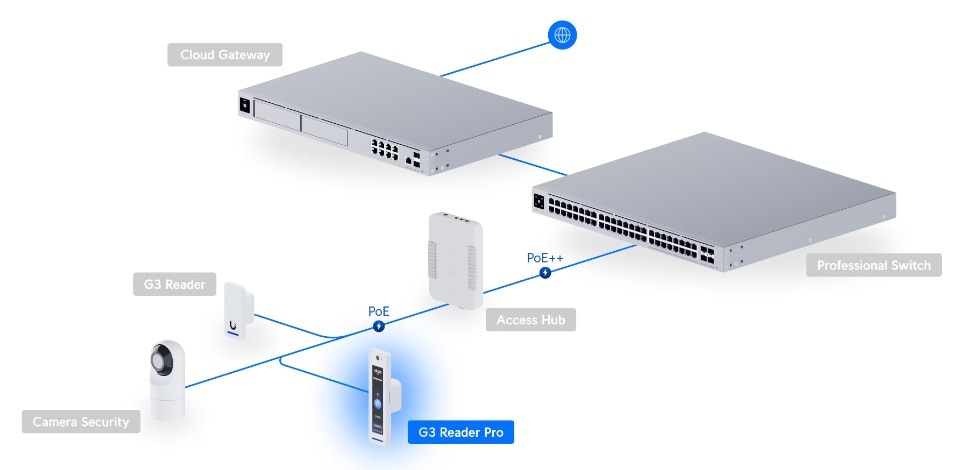

- Connects to UniFi Access Hub using PoE
Specifications
Specifications UA-G3-Pro

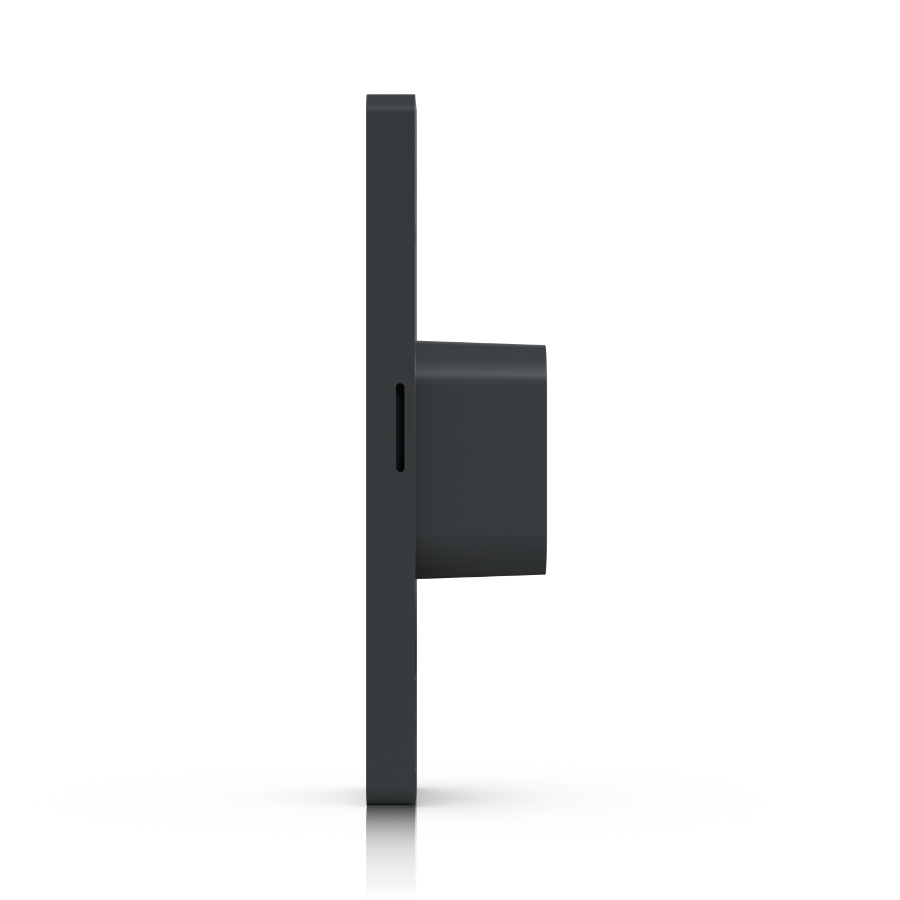

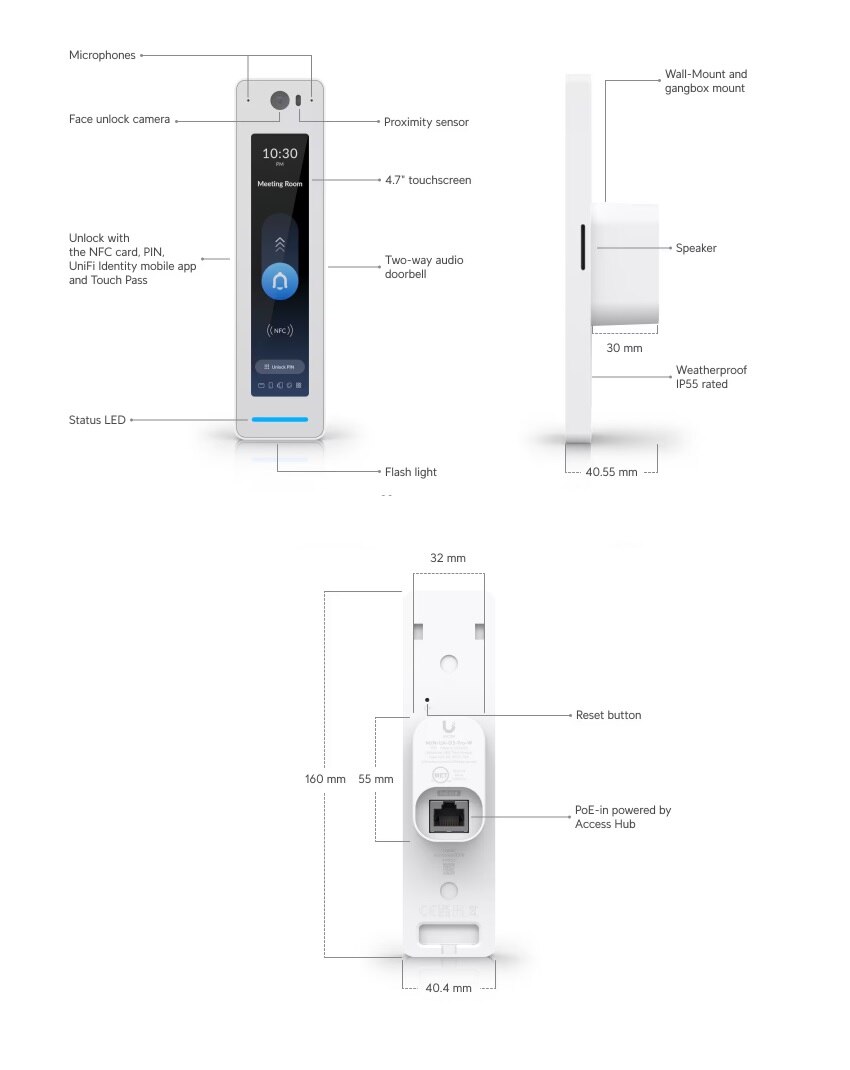

| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (0.29 lb) |
| Enclosure material | Polycarbonate, glass |

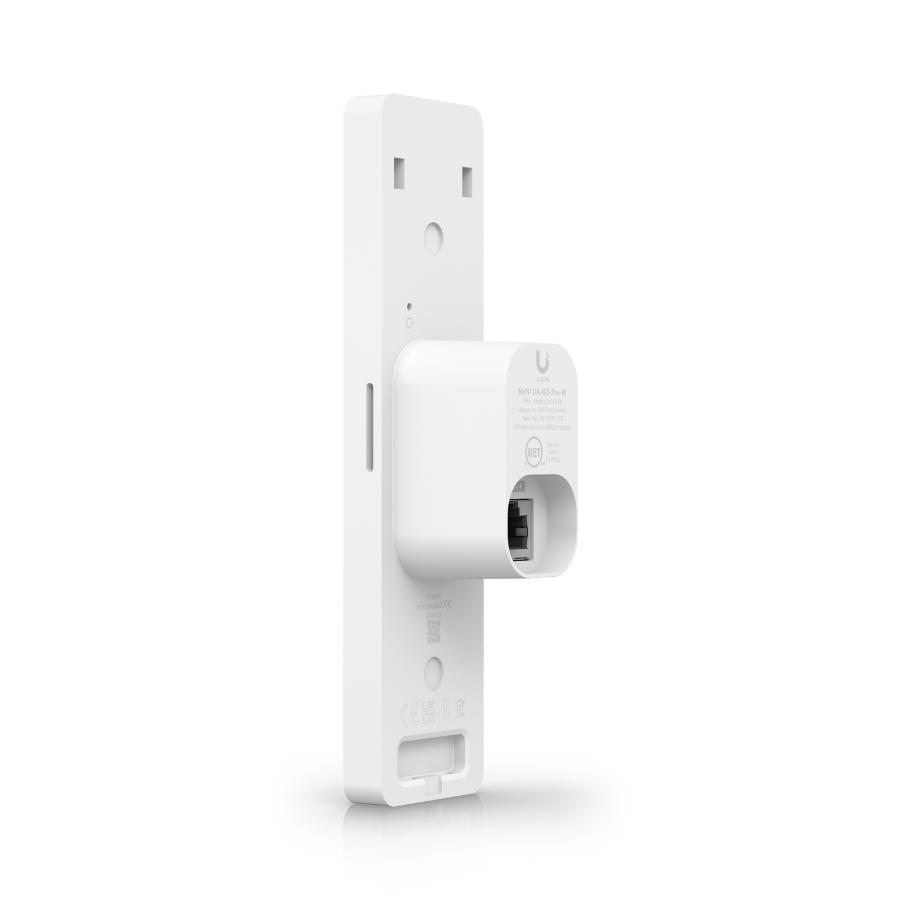

| Mount material | Aluminum alloy |

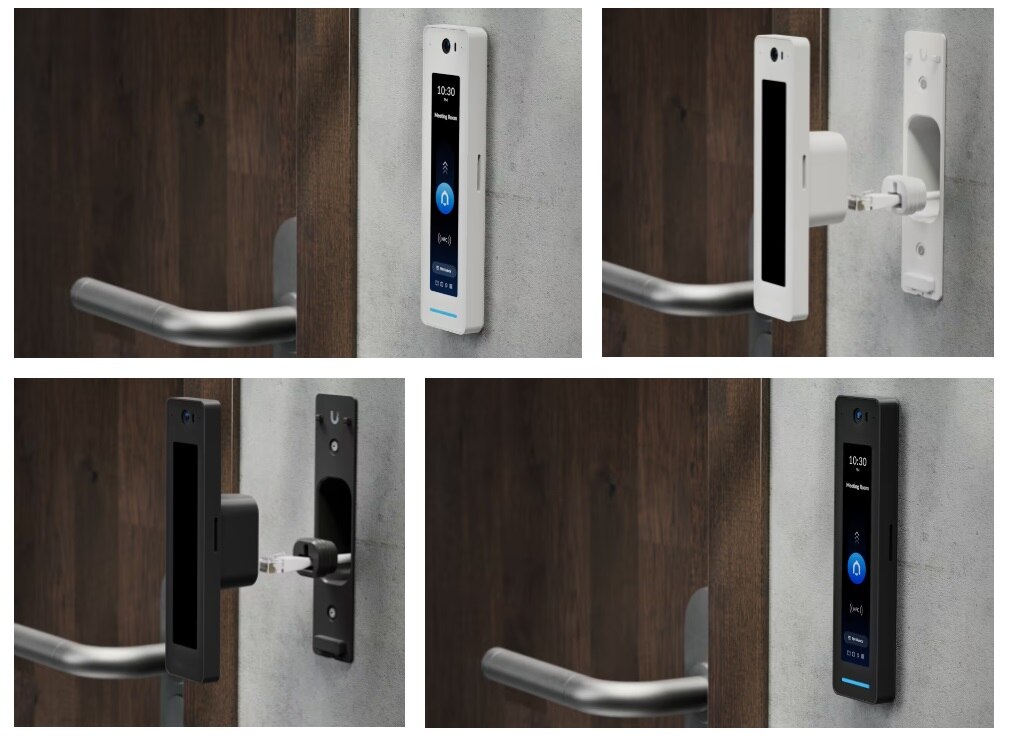

| Mounting | Wall mount (Included) Gangbox mount (Included) Angle mount (Optional) Junction box (Optional) |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 |
| NFC | BLE 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | Proximity sensor |
| Camera view angle | H: 96.67°, V: 123.15°, D: 153.11° |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W/Amber (Learn more) |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | Device: -30 to 45° C (-22 to 113° F) Display:* -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
