Ubiquiti UniFi Switch Flex Utility

  • SKU: USW-FLEX-UTILITY
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • 6 In stock at Mississippi
CA$‎66.70

Add-Ons (click to select)

Ubiquiti Networks USW-FLEX-UTILITY

Ubiquiti UniFi Switch Flex Utility

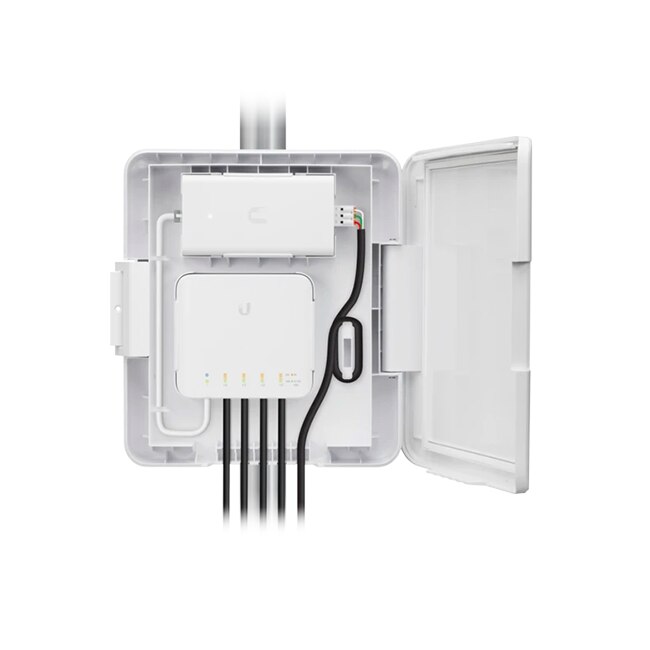

Note: The switch in the interior photo above is not included with the purchase.

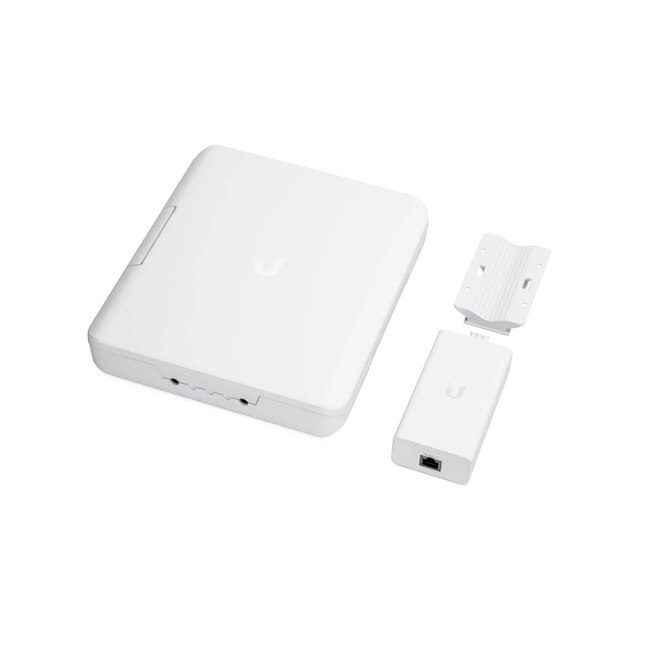

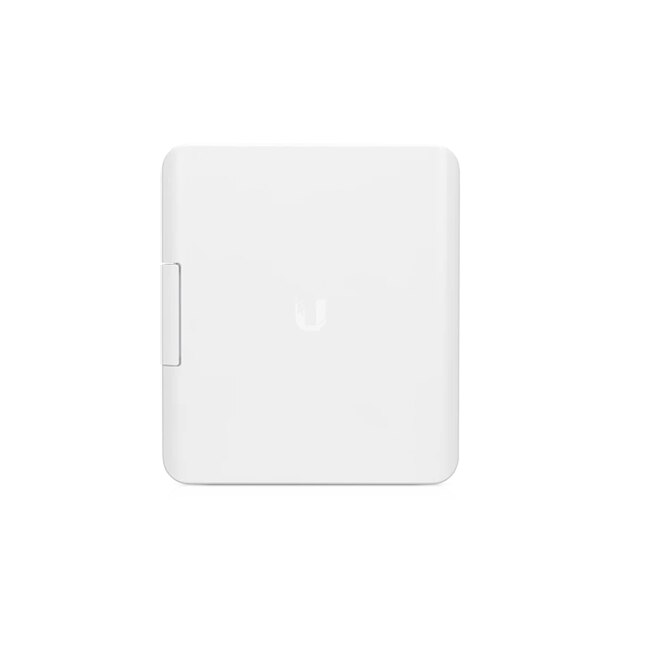

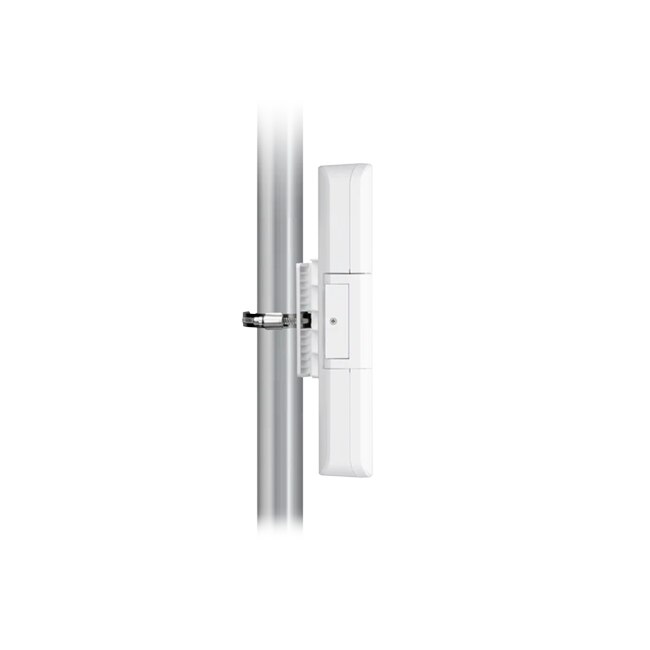

The Ubiquiti UniFi® Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, and provides clean cable management and screw lock for security.

Specifications USW-FLEX-UTILITY

Dimensions 118.5 x 63 x 34.7 mm (4.66 x 2.48 x 1.36")
Weight 206 g (7.27 oz)
Output Voltage 54V, 1.11A
Rated Voltage 100-240VAC
Input Current 1.5A (Max.)
Efficiency > 86%
Output Ripple 200mVpp
Line Regulation < 1%
Load Regulation < 3%
4-Pair Powering Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature -20 to 60˚ C (-4 to 140˚ F)
Storage Temperature -30 to 70˚ C (-22 to 158˚ F)
Operating Humidity 5 to 90%, Noncondensing
Surge Immunity 4kV Difference and Common Mode
