LightSaber Optics LSO-12UOD-650600PM-AC300W-H

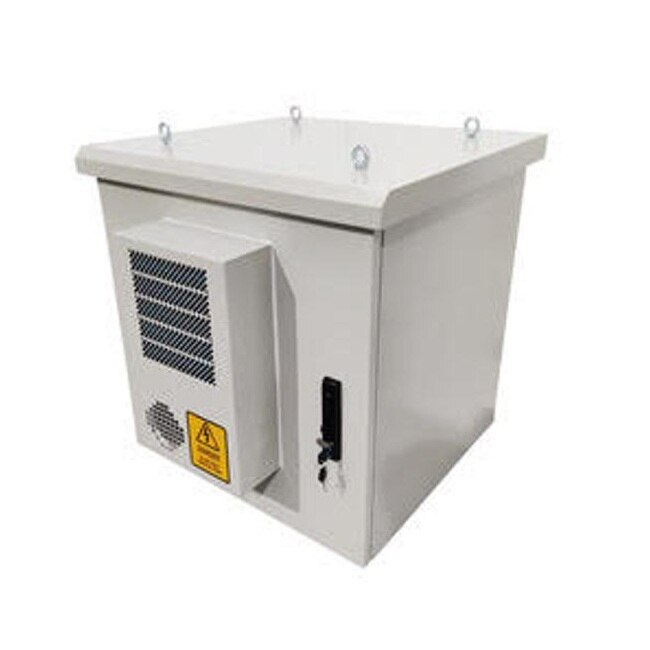

12U 25.6" Wide x 23.6" Deep OUTDOOR Pole Mount Cabinet, Metal Front Door with AC 300W Air Conditioner And 300W Heater Function, IP55 Rated|Grey

The LSO-12UOD-650600PM-AC300W Outdoor Telecommunication Cabinet with Air Conditioner is mainly used for wireless communications to house a variety of batteries and equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching station, emergency communication/transmission.  It is designed for a variety of applications and can be tailored to fit your specific needs.


AC110V 300W / 1023.6 BTU Air Conditioner is installed in the cabinet for keeping a stable temperature inside the cabinet so as to increase service life and stability of batteries and equipment.  It provides a secure, thermally managed environment for backup battery systems for telecommunications and cable applications.


Features:

  • Galvenized Steel

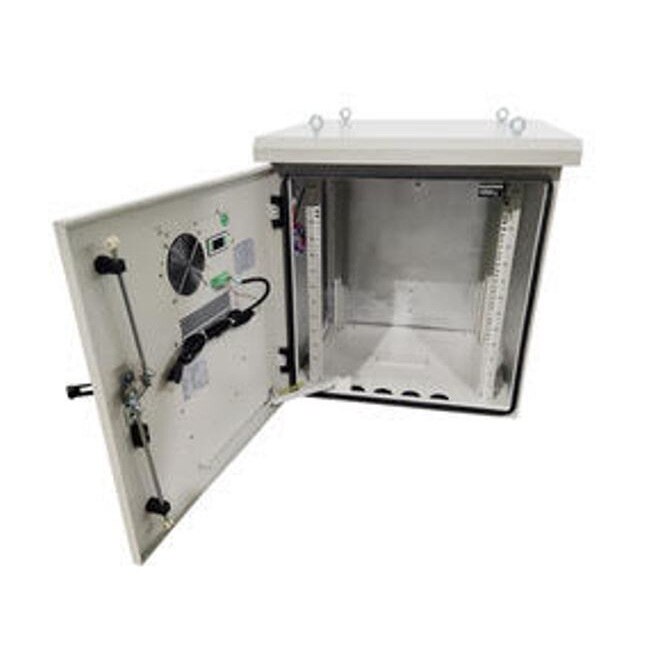

  • Lockable 3 Point locking System Front door

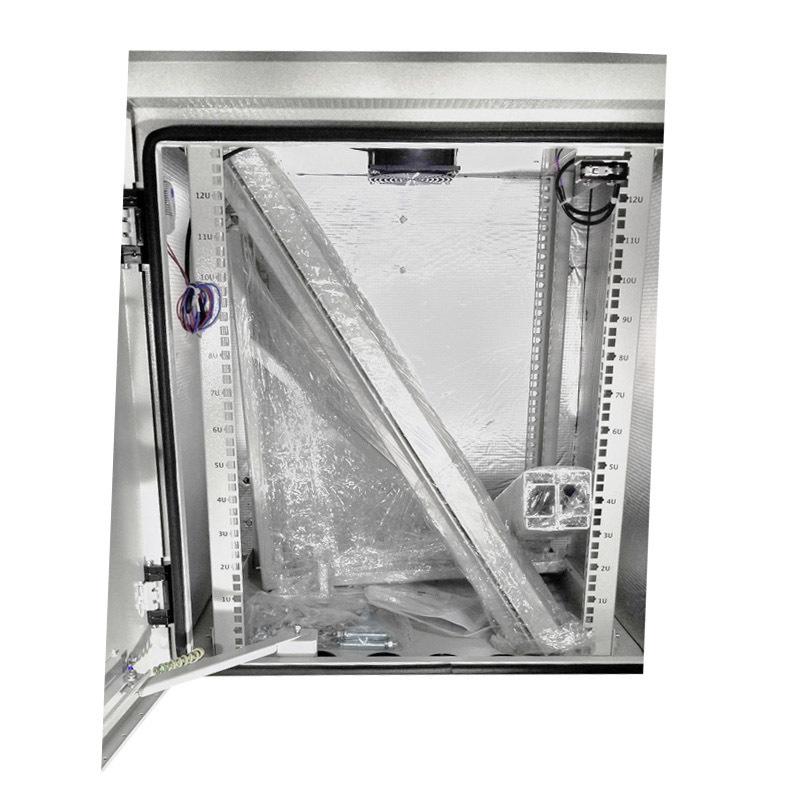

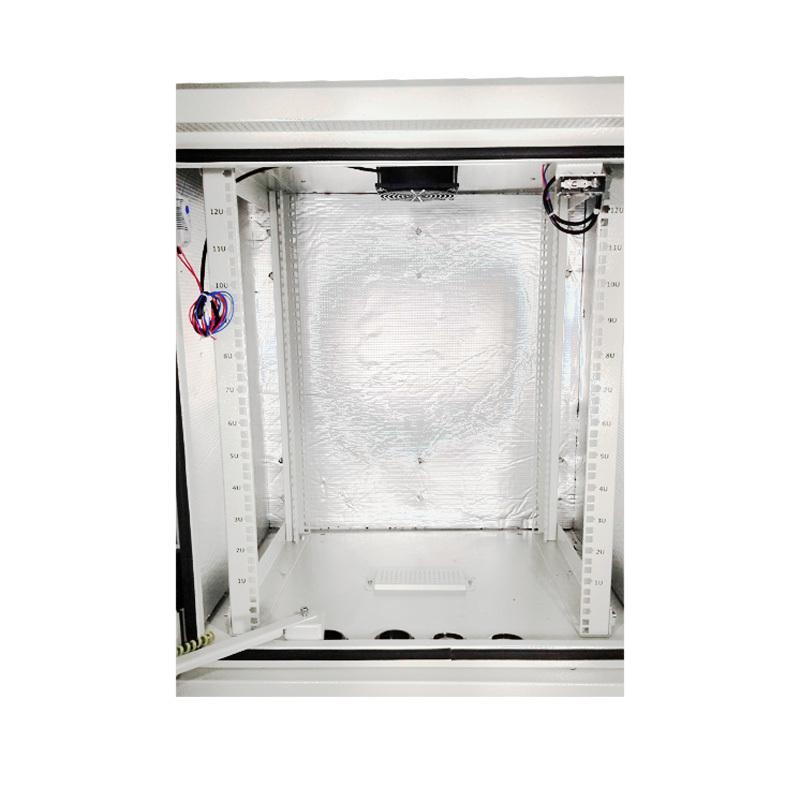

  • 4 Vertical Rails (cable rings included)

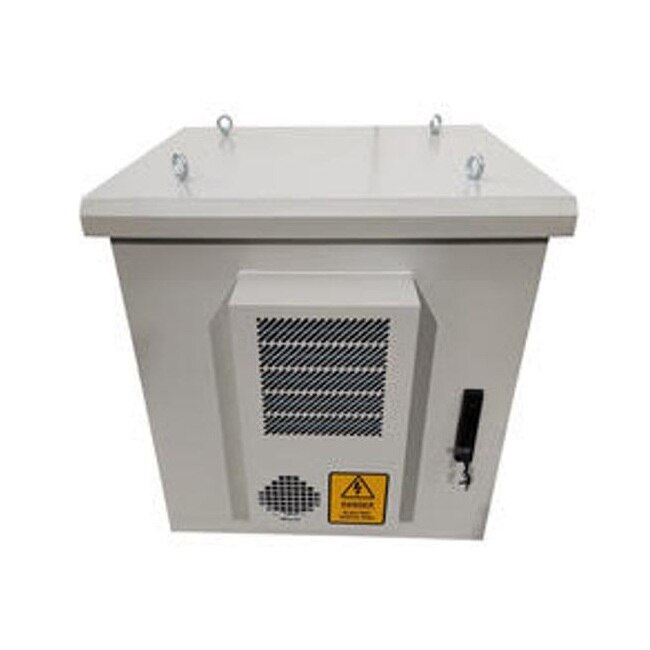

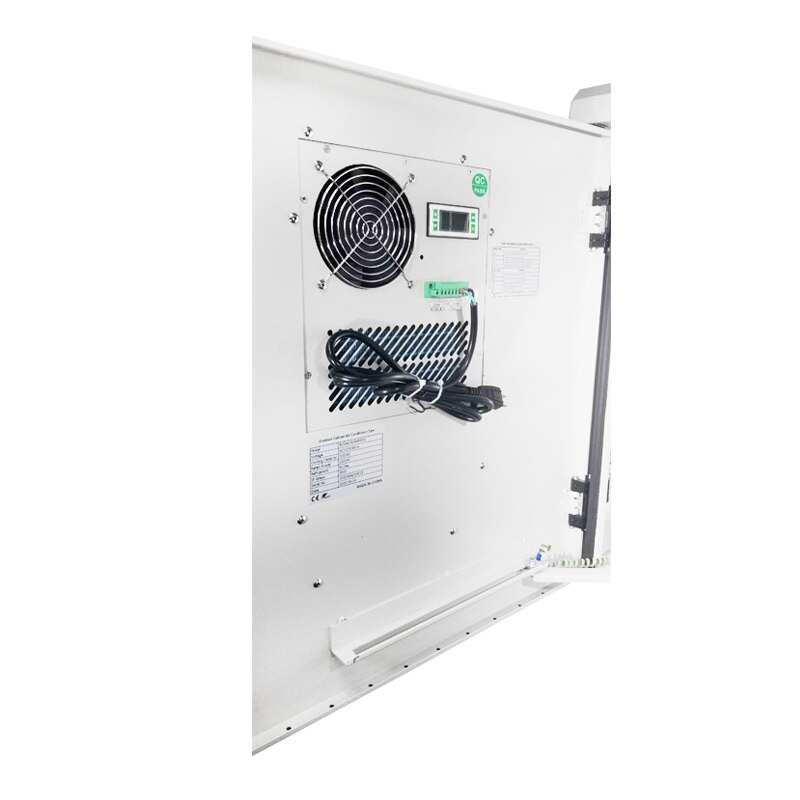

  • 300W AC Air Conditioner (110V) on the front door ( x 1)
  • 1*48V DC Fans with temperature controller on the TOP Roof for emergency using
  • Add 300W heater(attached fan) on the bottom cabinet
  • 10mm Insulation Material
  • Includes 16 x Cage Nut Sets

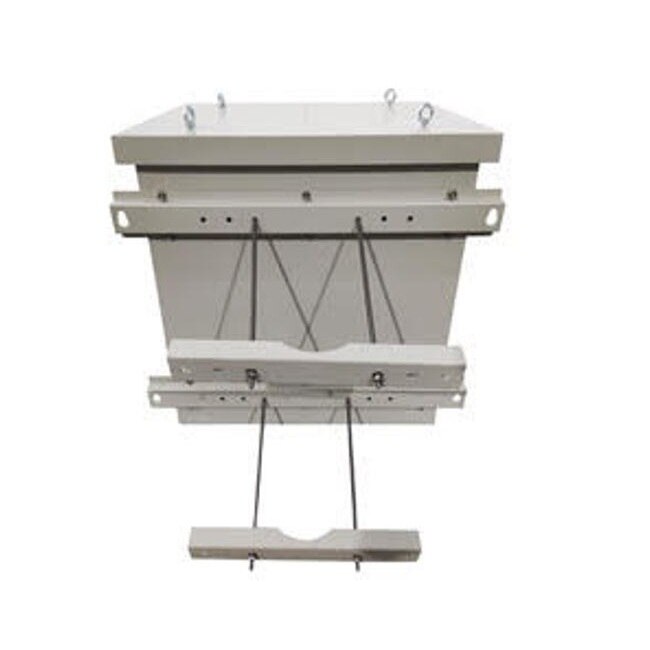

  • Pole Mount Accessories with Bottom Triangle Support Kit.
  • Comply with Pole diameter: 6“-12”
  • Pakage: Wood Pallet with Wood Box

Also comes with:

  • 1x DC48V emergency fan (with temperature controller)
  • 1x Front Door alarm sensor
  • 4 x lifting hook
  • 4 x Pole-mount bracket kits (includes mounting hardware)
  • 2 x Bottom Support bracket kits (includes mounting hardware)
  • 12 x M6 cagenut
  • 2 x Keys
  • 1 x Manual

Specifications LSO-12UOD-650600PM-AC300W-H

Physical
Model nameLSO-12UOD-650600PM-AC300W
Protection GlassNEMA 4X
Rack Unit Size12U
Cabinet TypePole-Mount Outdoor Cabinet w/ Air conditioner
ColorGrey RAL7035
MaterialGalvanized Steel
Unit Dimension(WxDxH)27.56 x 29 x 27.56 inches (without hook)
Unit Weight(lbs.)171.91
Internal Depth (Front Rail to Back Door)17.73 inches
Rail to Rail Depth18.83 inches
Shipping Dimension(WxDxH)31.50 x 33.07 x 32.68 inches
Shipping Weight(lbs.)213.79
Electrical

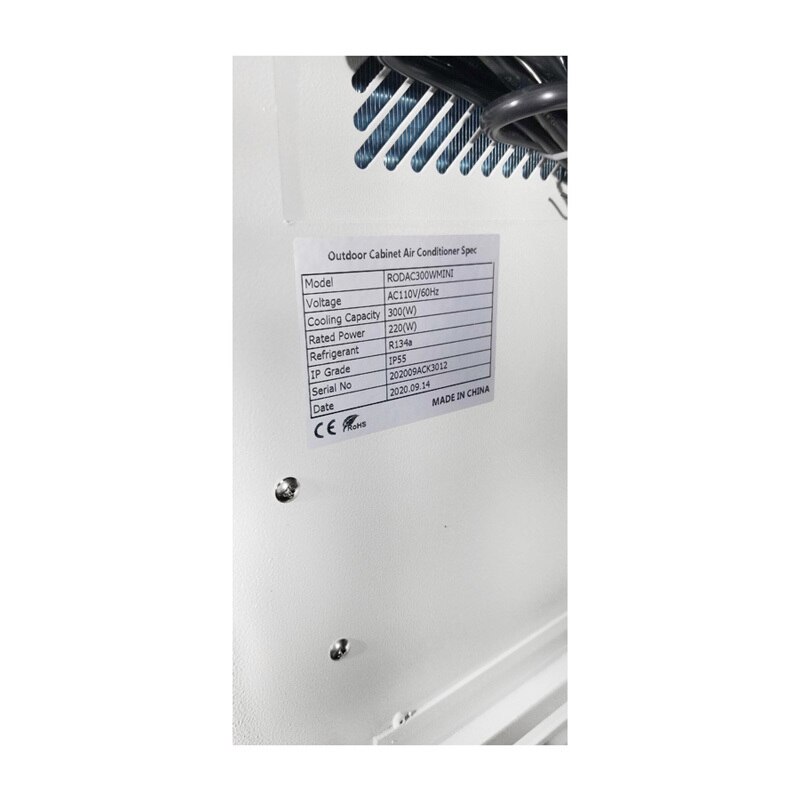

CoolingAC110V/60Hz, 300W(1023.6BTU) air conditioner (Refrigerant: R134a) DC48V Cooling Emergency Fan x 1 (with tem. controller)
GroundingEarthing Copper Bar,Grounding Wire
OtherDoor Alarm Sensor
Certifications
SafetyCE
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty1 Year
